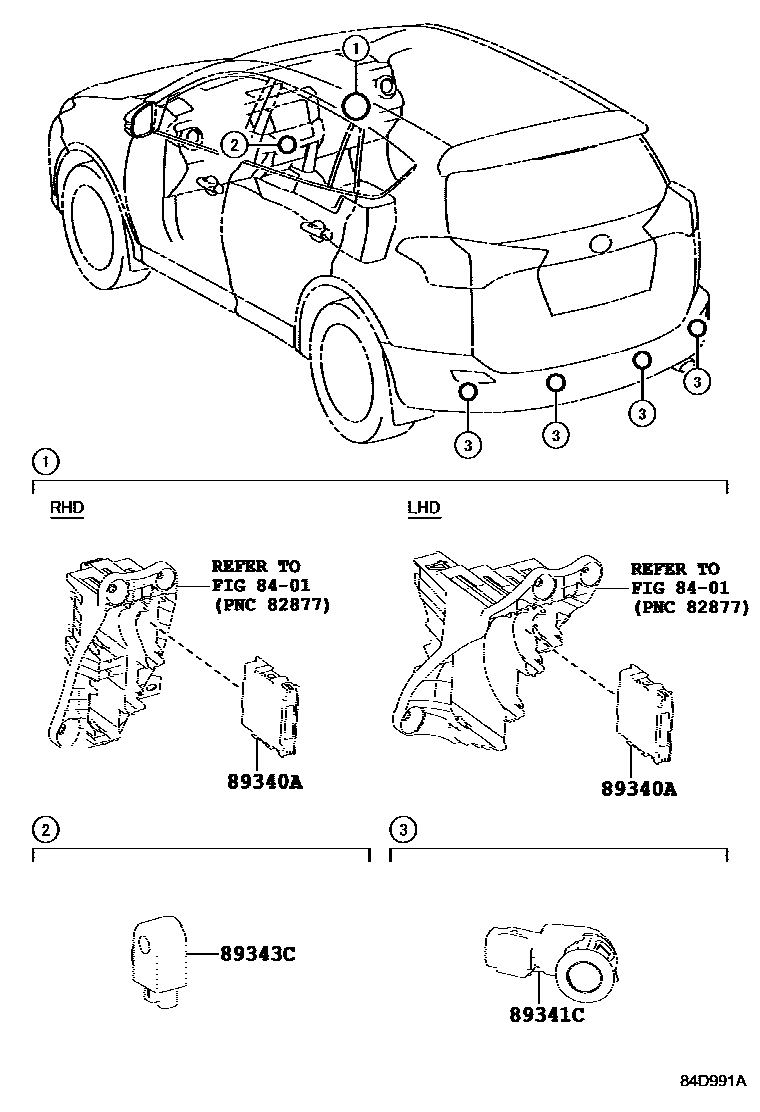

CLEARANCE & BACK SONAR

0001 1 0002 1

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-42010iASA44,ZSA42..ARL201212-201301

CLEARANCE & BACK SONAR-WITH(REAR)

main89340-42011iASA4#,ZSA4#..LHD201301-201311

CLEARANCE & BACK SONAR-WITH(REAR)

main89340-42030iASA44,ZSA42..ARL201311-201510

CLEARANCE & BACK SONAR-WITH(REAR)

main89340-42040iALA49..(G,M)..DCRL201510-201812

CLEARANCE & BACK SONAR-WITH(FRONT&REAR)

main89340-42050iALA49..X..DCR;ALA49..(G,M)..DCRL201510-201812

CLEARANCE & BACK SONAR-WITH(REAR)

89341CSENSOR, ULTRASONIC, NO.3

main89341-42010iASA44,ZSA42..ARL201212-201311

CLEARANCE & BACK SONAR-WITH(REAR)

main89341-42030iASA44,ZSA42..ARL201311-201510

CLEARANCE & BACK SONAR-WITH(REAR)

89343CBUZZER, CLEARANCE WARNING, NO.1

main89343-48010iASA44..G..SA;ALA49,AVA4#..(6FC,A)..(G,M)..(GEN,SA)201510-201812

CLEARANCE & BACK SONAR-WITH(FRONT&REAR)

main89343-48010iALA49..DCRL;ALA49..X..DCRE201510-201812

CLEARANCE & BACK SONAR-WITH(REAR)

main89343-72010iASA4#,ZSA4#..LHD201212-201510

CLEARANCE & BACK SONAR-WITH(REAR)

4 parts on this diagram · 2 diagrams in section
