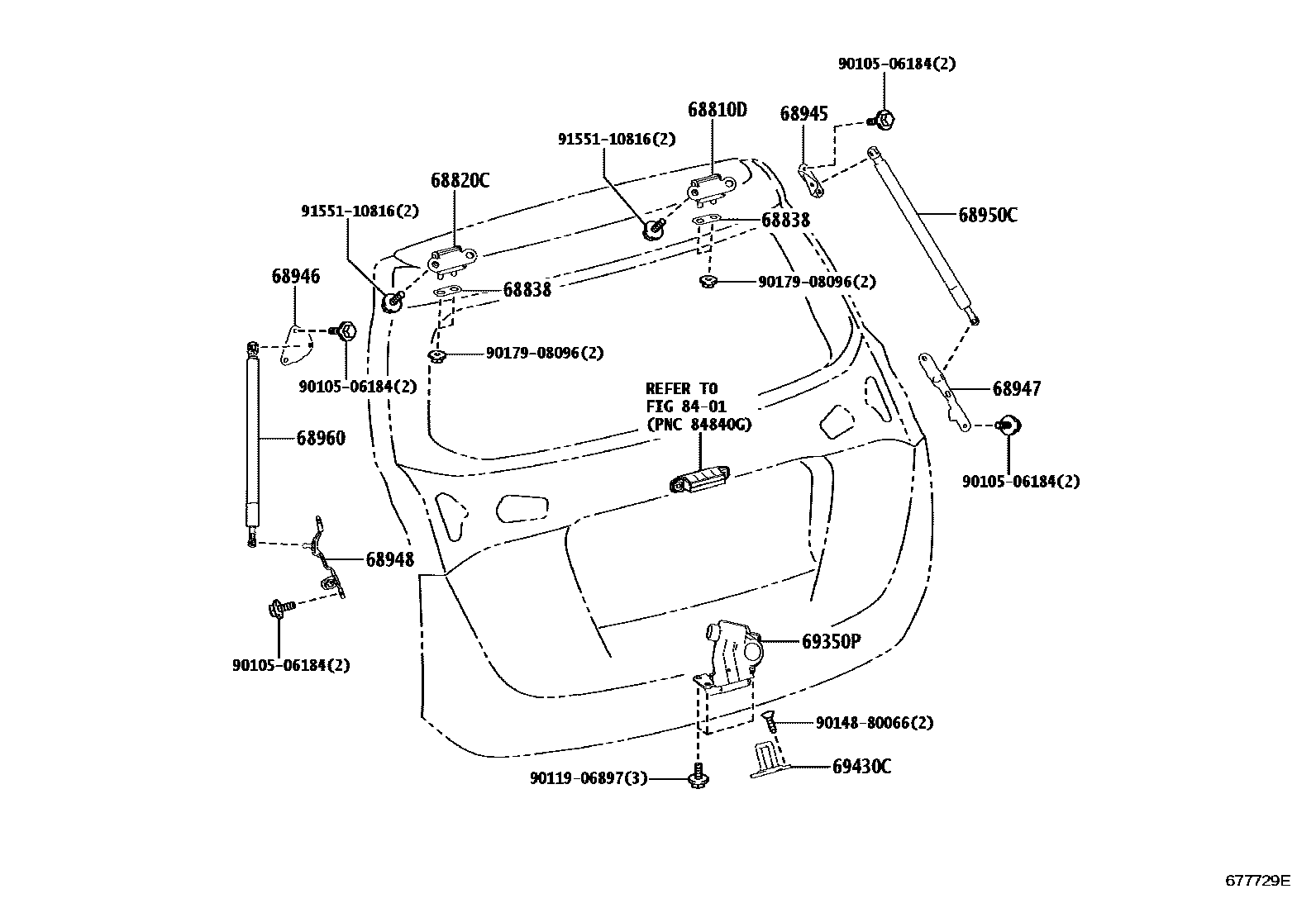

68810DHINGE ASSY, BACK DOOR, RH

main68810-42070i201212-201510

68820CHINGE ASSY, BACK DOOR, LH

main68810-42070i201510-201810

68838PAD, BACK DOOR HINGE, NO.1

main68838-42010×2i201510-201812

T=1.0

main68838-42020×2i201510-201812

T=1.5

main68838-42030×2i201212-201510

T=2.0

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-42010i201212-201510

L3 PACKAGE; POWER DOOR LOCK-WITH(POWER BACK DOOR)

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-42010i201510-201812

POWER DOOR LOCK-W/(AUTO LOCK(SPEED)&HANSFREE BACK DOOR); POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR); POWER DOOR LOCK-WITH(HANDS FREE POWER BACK DOOR); POWER DOOR LOCK-WITH(POWER BACK DOOR)

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68903-42014i201510-201801

POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)); POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)

main68903-42015i201801-201812

POWER DOOR LOCK-W/(AUTO LOCK(SPEED)&HANSFREE BACK DOOR); POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)); POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)

main68947-42020i201212-201510

L3 PACKAGE; POWER DOOR LOCK-WITH(POWER BACK DOOR)

main68903-42010i201212-201306

*334&SEAT COVER MATERIAL-NATURAL LEATHER; L3 PACKAGE; RUSSIA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER; UKURAINE SPEC&SEAT COVER MATERIAL-NATURAL LEATHER

main68903-42011i201307-201308

*334&SEAT COVER MATERIAL-NATURAL LEATHER; L3 PACKAGE; RUSSIA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER; UKURAINE SPEC&SEAT COVER MATERIAL-NATURAL LEATHER

main68903-42012i201309-201311

*334&SEAT COVER MATERIAL-NATURAL LEATHER; RUSSIA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER; UKURAINE SPEC&SEAT COVER MATERIAL-NATURAL LEATHER

main68903-42013i201312-201406

L3 PACKAGE; POWER DOOR LOCK-WITH(POWER BACK DOOR)

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68904-42014i201510-201801

POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)); POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)

main68904-42015i201801-201812

POWER DOOR LOCK-W/(AUTO LOCK(SPEED)&HANSFREE BACK DOOR); POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)); POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)

main68948-42020i201510-201812

POWER DOOR LOCK-W/(AUTO LOCK(SPEED)&HANSFREE BACK DOOR); POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR); POWER DOOR LOCK-WITH(HANDS FREE POWER BACK DOOR); POWER DOOR LOCK-WITH(POWER BACK DOOR)

main68904-42010i201212-201306

*334&SEAT COVER MATERIAL-NATURAL LEATHER; L3 PACKAGE; RUSSIA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER; UKURAINE SPEC&SEAT COVER MATERIAL-NATURAL LEATHER

main68904-42011i201307-201308

*334&SEAT COVER MATERIAL-NATURAL LEATHER; L3 PACKAGE; RUSSIA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER; UKURAINE SPEC&SEAT COVER MATERIAL-NATURAL LEATHER

main68904-42012i201309-201311

*334&SEAT COVER MATERIAL-NATURAL LEATHER; RUSSIA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER; UKURAINE SPEC&SEAT COVER MATERIAL-NATURAL LEATHER

main68904-42013i201312-201406

L3 PACKAGE; POWER DOOR LOCK-WITH(POWER BACK DOOR)

68950CSTAY ASSY, BACK DOOR, RH

main68950-0R010i201212-201510

L3 PACKAGE; POWER DOOR LOCK-WITH(POWER BACK DOOR)

main68950-0R020i201510-201812

POWER DOOR LOCK-W/(AUTO LOCK(SPEED)&HANSFREE BACK DOOR); POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR); POWER DOOR LOCK-WITH(HANDS FREE POWER BACK DOOR); POWER DOOR LOCK-WITH(POWER BACK DOOR)

68960STAY ASSY, BACK DOOR, LH

main68960-0R010i201212-201510

L3 PACKAGE; POWER DOOR LOCK-WITH(POWER BACK DOOR)

main68960-0R020i201510-201812

POWER DOOR LOCK-W/(AUTO LOCK(SPEED)&HANSFREE BACK DOOR); POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR); POWER DOOR LOCK-WITH(HANDS FREE POWER BACK DOOR); POWER DOOR LOCK-WITH(POWER BACK DOOR)

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-28151i201212-201510

main69350-42060i201510-201810

POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)

main69350-42070i201510-201810

main69350-28160i201410-201510

POWER DOOR LOCK-WITH(AUTO LOCK(SPEED) & POWER BACK DOOR); POWER DOOR LOCK-WITH(POWER BACK DOOR)

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-48030i201510-201812

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010506184
