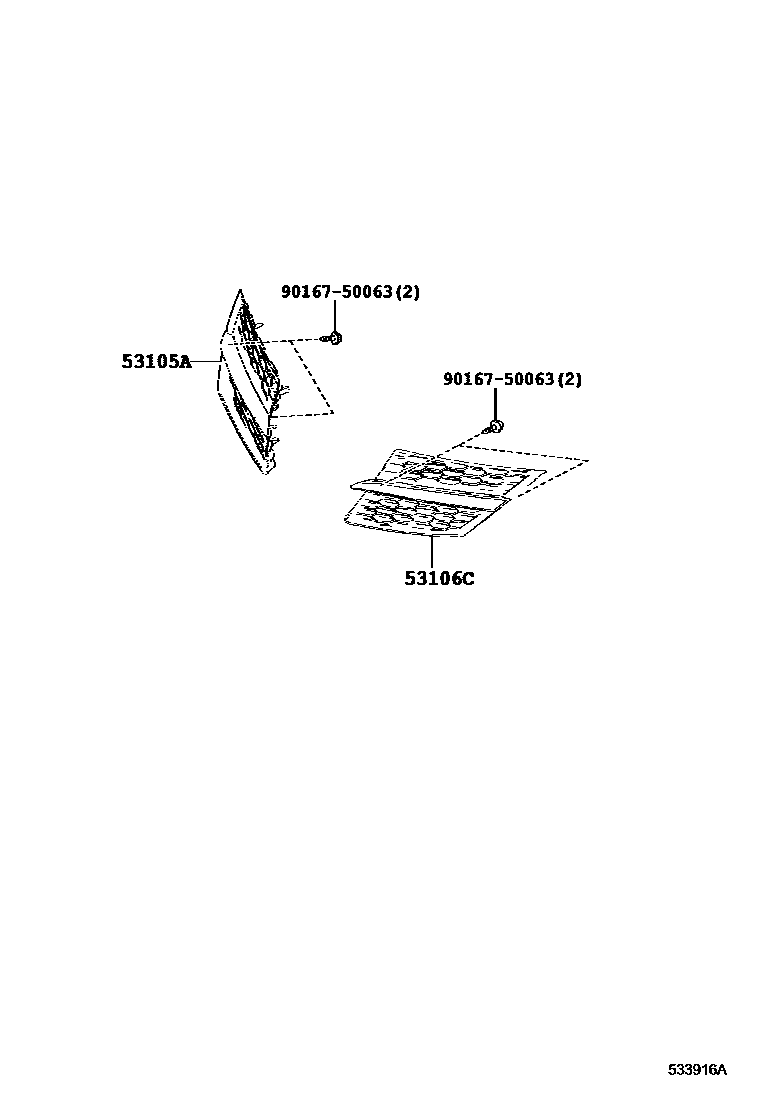

RADIATOR GRILLE

53105AGARNISH SUB-ASSY, RADIATOR GRILLE, RH

main53105-42010i201212-201510

main53105-42020i201212-201407

RUSSIA SPEC; RUSSIA SPEC&FRONT FOG LAMP-WITH; RUSSIA SPEC&FRONT FOG LAMP-WITH&AIR CONDITIONER-AUTO DUAL CONTROL; RUSSIA SPEC&HEADLAMP-DISCHARGE

main53105-42021i201408-201510

RUSSIA SPEC; RUSSIA SPEC&FRONT FOG LAMP-WITH; RUSSIA SPEC&FRONT FOG LAMP-WITH&AIR CONDITIONER-AUTO DUAL CONTROL; RUSSIA SPEC&HEADLAMP-DISCHARGE

53106CGARNISH SUB-ASSY, RADIATOR GRILLE, LH

main53106-42010i201212-201510

main53106-42020i201212-201407

RUSSIA SPEC; RUSSIA SPEC&FRONT FOG LAMP-WITH; RUSSIA SPEC&FRONT FOG LAMP-WITH&AIR CONDITIONER-AUTO DUAL CONTROL; RUSSIA SPEC&HEADLAMP-DISCHARGE

main53106-42021i201408-201510

RUSSIA SPEC; RUSSIA SPEC&FRONT FOG LAMP-WITH; RUSSIA SPEC&FRONT FOG LAMP-WITH&AIR CONDITIONER-AUTO DUAL CONTROL; RUSSIA SPEC&HEADLAMP-DISCHARGE

9016750063

3 parts on this diagram · 2 diagrams in section
