VALVE BODY & OIL STRAINER (ATM)

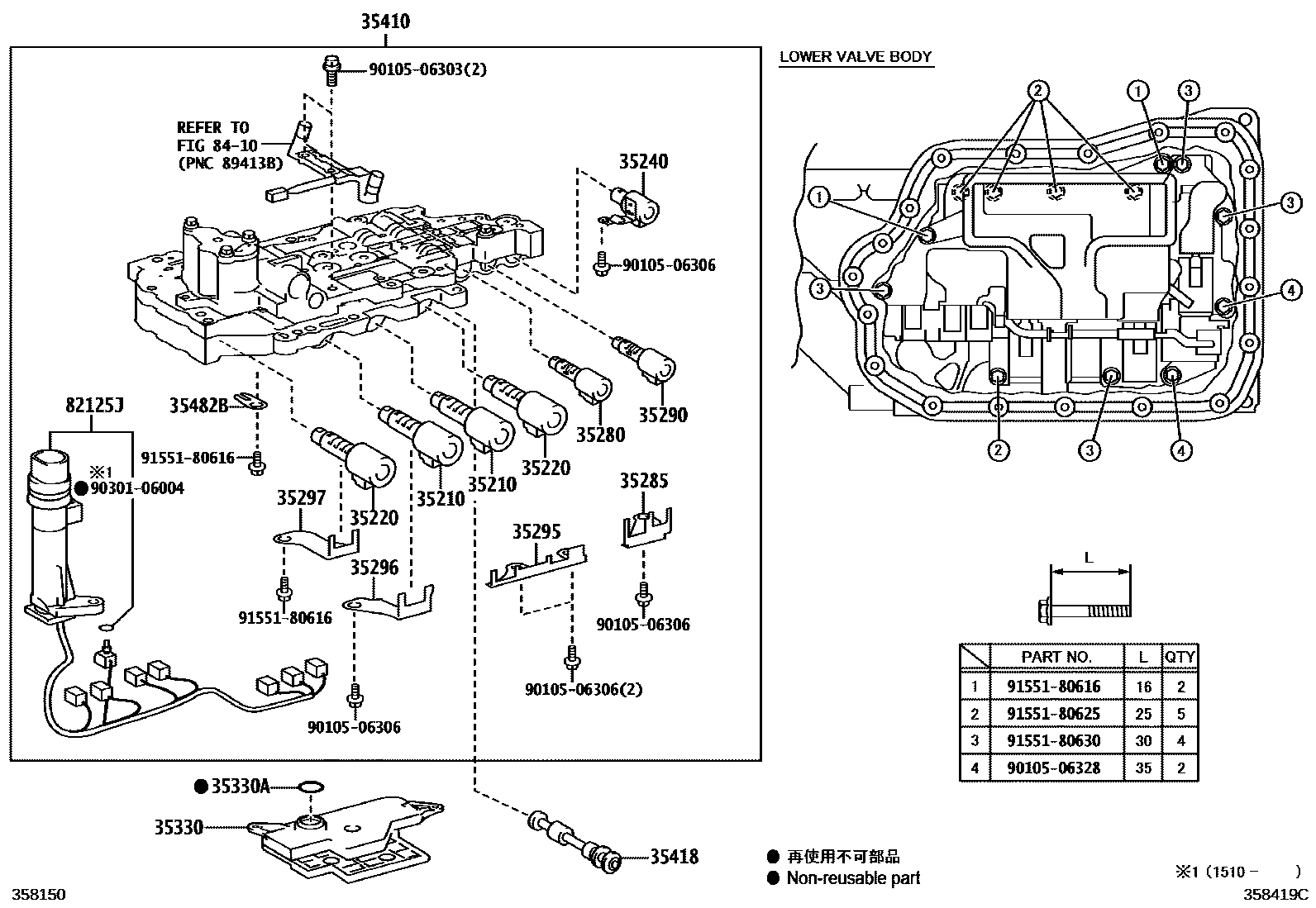

Parts diagram

35210SOLENOID ASSY, CLUTCH CONTROL, NO.1

main35210-33030×2i201510-201812

main35210-73010×2i201212-201409

35220SOLENOID ASSY, CLUTCH CONTROL, NO.2

main35220-33040×2i201510-201810

main35220-48020×2i201510-201812

main35220-73010×2i201212-201409

35240SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY

main35240-73010i201510-201812

35280SOLENOID ASSY, LOCK UP CONTROL

main35280-33020i201212-201510

main35280-52040i201510-201810

35285PLATE, SOLENOID LOCK

main35285-33070i201608-201812

*285

main35285-73010i201212-201510

35290SOLENOID ASSY, LINE PRESSURE CONTROL

main35290-33040i201212-201510

35295PLATE, SOLENOID LOCK, NO.2

main35295-33050i201709-201812

*285

main35295-73010i201510-201811

*284

35296PLATE, SOLENOID LOCK, NO.3

main35296-33050i201608-201812

*285

main35296-73010i201212-201510

35297PLATE, SOLENOID LOCK, NO.4

main35297-33020i201709-201812

*285

main35297-73010i201510-201811

*284

35330STRAINER ASSY, VALVE BODY OIL

main35330-48020i201510-201810

main35330-73010i201212-201510

35330ARING, O (FOR OIL STRAINER)

main90301-27015i201212-201510

35410BODY ASSY, TRANSMISSION VALVE

main35410-33240i201510-201810

main35410-33250i201212-201510

main35410-33260i201608-201812

*285

35418VALVE, MANUAL

main35418-73010i201510-201810

35482BCLAMP, TEMPERATURE SENSOR

main35482-73010i201212-201510

82125JWIRE, TRANSMISSION

main82125-33150i201510-201807

main82125-33151i201808-201810

main82125-73010i201212-201510

main82125-73011i201808-201812

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

9010506303

main90105-06303

9010506306

main90105-06306

9010506328

main90105-06328

9030106004

main90301-06004

9155180616

main91551-80616

9155180625

main91551-80625

9155180630

main91551-80630

23 parts on this diagram · 3 diagrams in section
