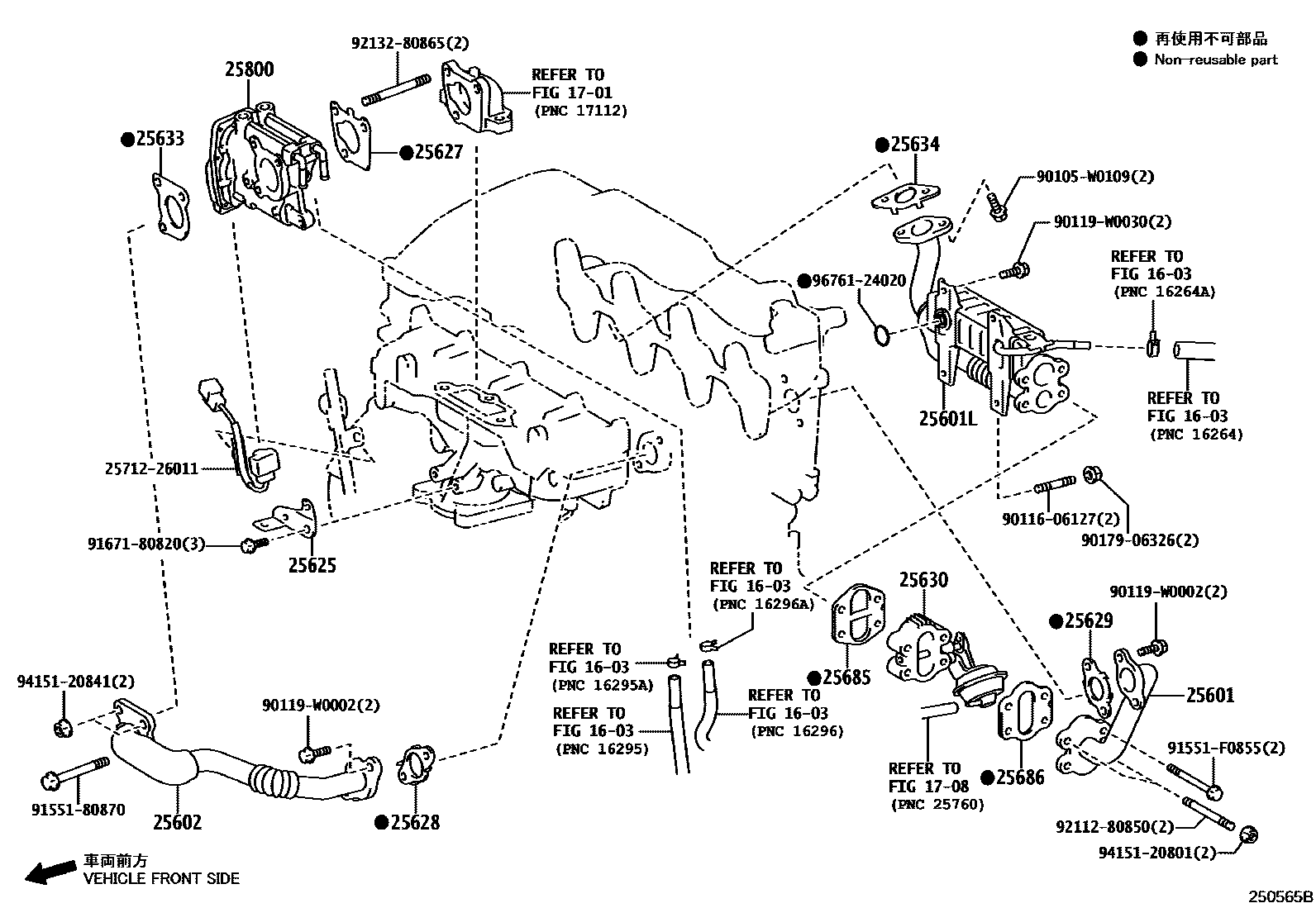

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

1708VACUUM PIPING

→ Go to FIG 17-08

25601PIPE SUB-ASSY, EGR, NO.1

main25611-0R020i2AD#..ALA49201510-201810

(L)

main25611-26030i2AD#..ALA49201510-201810

(J)

25601LPIPE SUB-ASSY, EGR W/COOLER

main25601-0R020i2AD#..ALA49201510-201810

25602PIPE SUB-ASSY, EGR, NO.2

main25612-0R031i2AD#..ALA49201510-201810

25625BRACKET, EGR VALVE

main25625-26010i2AD#..ALA49201510-201810

25627GASKET, EGR VALVE

main25627-0R020i2AD#..ALA49201510-201810

main25627-36010i2ARFXE..AVA4#..G201608-201810

TAIWAN SPEC,*265 OR *524; TAIWAN SPEC,*347

25628GASKET, EGR INLET

main25628-0R010i2AD#..ALA49201510-201810

(L)

main25628-26020i2AD#..ALA49201510-201810

(J)

25629GASKET, EGR VALVE ADAPTER

main25629-0R010i2AD#..ALA49201510-201810

25630VALVE ASSY, EGR, NO.2

main25630-26020i2AD#..ALA49201510-201810

25633GASKET, EGR VALVE

main25633-0R020i2AD#..ALA49201510-201810

25634GASKET, EGR PIPE

main25634-0R010i2AD#..ALA49201510-201810

main25634-36010i2ARFXE..AVA4#..G201608-201810

TAIWAN SPEC,*265 OR *524; TAIWAN SPEC,*347

25685GASKET, EGR COOLER, NO.1

main25685-0R011i2AD#..ALA49201510-201810

25686GASKET, EGR COOLER, NO.2

main25686-0R010i2AD#..ALA49201510-201810

25800VALVE ASSY, ELECTRIC EGR CONTROL

main25800-0R010i2AD#..ALA49201510-201810

2571226011WIRE, EMISSION CONTROL VALVE

main25712-26011

90105W0109

main90105-W0109

9011606127

main90116-06127

90119W0002

main90119-W0002

90119W0030

main90119-W0030

9017906326

main90179-06326

9155180870

main91551-80870

91551F0855

main91551-F0855

9167180820

main91671-80820

9211280850

main92112-80850

9213280865

main92132-80865

9415120801

main94151-20801

9415120841

main94151-20841

9676124020

main96761-24020

30 parts on this diagram · 2 diagrams in section
