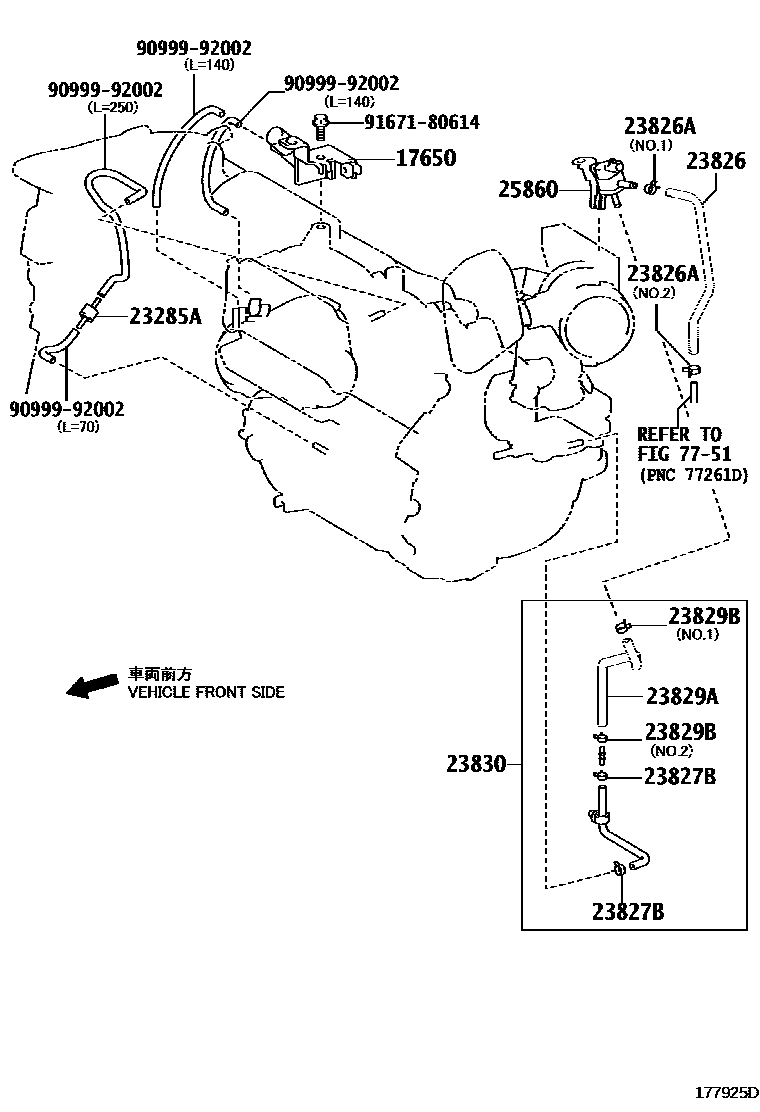

VACUUM PIPING
17650VALVE ASSY, VACUUM SWITCHING
23285AVALVE, CHECK, NO.1
23826HOSE, FUEL VAPOR FEED, NO.1
NO.2
NO.2
NO.2
NO.1
23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
NO.1
NO.2
NO.2:REFER ILLUST.
23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
23829AHOSE, FUEL VAPOR FEED
23829BCLIP(FOR FUEL VAPOR FEED HOSE)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
23830HOSE ASSY, FUEL VAPOR FEED, NO.2
25860VALVE ASSY, VACUUM SWITCHING, NO.1
7751FUEL TANK & TUBE
9099992002
main90999-92002
9167180614
main91671-80614
12 parts on this diagram · 6 diagrams in section
