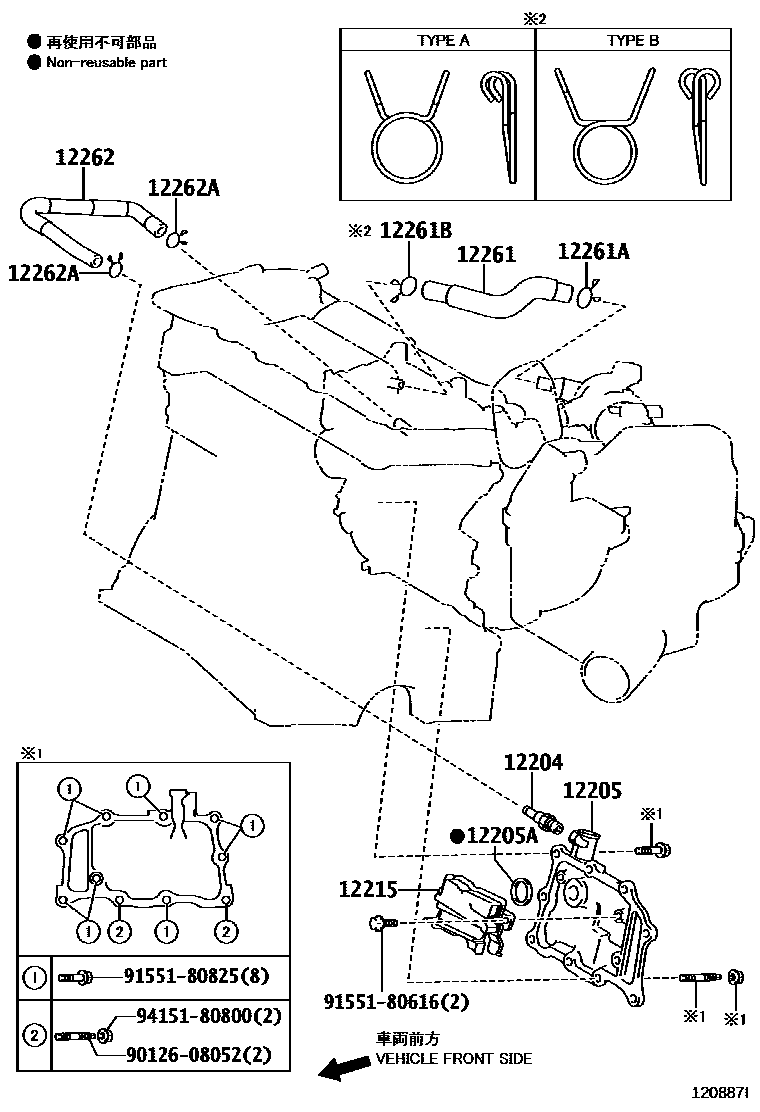

VENTILATION HOSE
12204VALVE SUB-ASSY, VENTILATION
*265 OR *524
*347,*265 OR *524
12205CASE SUB-ASSY, VENTILATION
(L),*347
*265 OR *524
(J),*347,*265 OR *524
12205ARING, O(FOR VENTILATION CASE)
*347
*265 OR *524
12215SEPARATOR, CASE
*265 OR *524
*347,*265 OR *524
12261HOSE, VENTILATION
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
NO.2
NO.1
12261BCLIP OR CLAMP(FOR VENTILATION HOSE)
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
12262HOSE, VENTILATION, NO.2
*347
*265 OR *524
*265 OR *524
12262ACLIP(FOR VENTILATION HOSE NO.2)
*265 OR *524
*347,*265 OR *524
main90467-19003i3ZRFE..ZSA44;3ZRFE..ZSA42..6F,A;3ZRFE..ZSA42..B..(M,X);3ZRFE..ZSA42..LHD..B..G201212-201812
NO.1
NO.2
9012608052
main90126-08052
9155180616
main91551-80616
9155180825
main91551-80825
9415180800
main94151-80800
13 parts on this diagram · 4 diagrams in section
