ANTI-THEFT DEVICE
89040SIREN ASSY, THEFT WARNING
main89040-42020iAXAA54..SA; AXAL54..RHD..EUR;MXAA52..LHD..EUR;AXAL54..LHD..(G,M);AXAH5#,AXAL52,MXAA54..EUR; MXAA54..RHD..6F;AXAH54..RHD..GEN;AXAA5#..RHD..G..GEN;MXAA52..RHD..G..(EUR,GEN,SA);MXAA5#..RHD..(M,V,X)..(EUR,SA)202008-202109
ANTI-THEFT SYSTEM-*IM & *D0L & ALARM & *GBS(QATER/*BDO)); ANTI-THEFT SYSTEM-IMMOBILIZER & DOUBLE-LOCK & ALARM
8973BSENSOR, THEFT WARNING ULTRASONIC & TILT
ANTI-THEFT SYSTEM-*IM & *D0L & ALARM & *GBS(QATER/*BDO))
89780COMPUTER ASSY, TRANSPONDER KEY
main897H0-12020iMXAA52..CVT..X..GEN;MXAA52..LHD..6F..X..GEN;AXAA54,MXAA54..X..(GCC,GEN);AXAA52,MXAA52..X..(EUR,GCC,SA)202008-202208
89782COIL, TRANSPONDER KEY
main89782-33070iMXAA52..CVT..X..GEN;MXAA52..LHD..6F..X..GEN;AXAA54,MXAA54..X..(GCC,GEN);AXAA52,MXAA52..X..(EUR,GCC,SA)202008-202210
89784COMPUTER, IMMOBILIZER CODE
main89784-12040iAXAL5#..ARL;AXAA54..G..ARL;MXAA52..6F..ARL;MXAA54..RHD..6F;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;AXAH5#,AXAL5#..RHD..X..EUR202008-202111
9016730010
main90167-30010
90178W0019
main90178-W0019
9415180600
main94151-80600

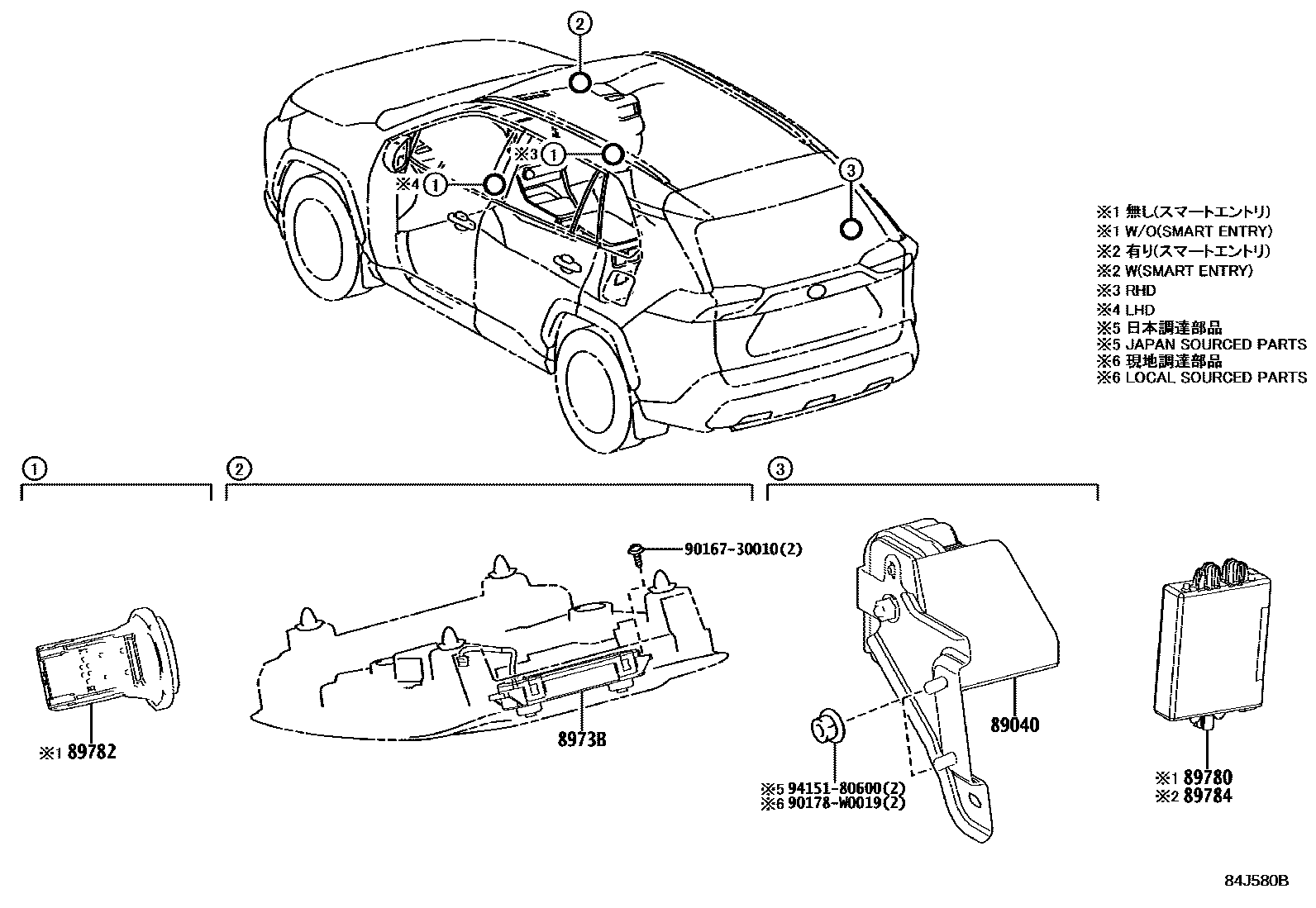

8 parts on this diagram · 1 diagram in section
