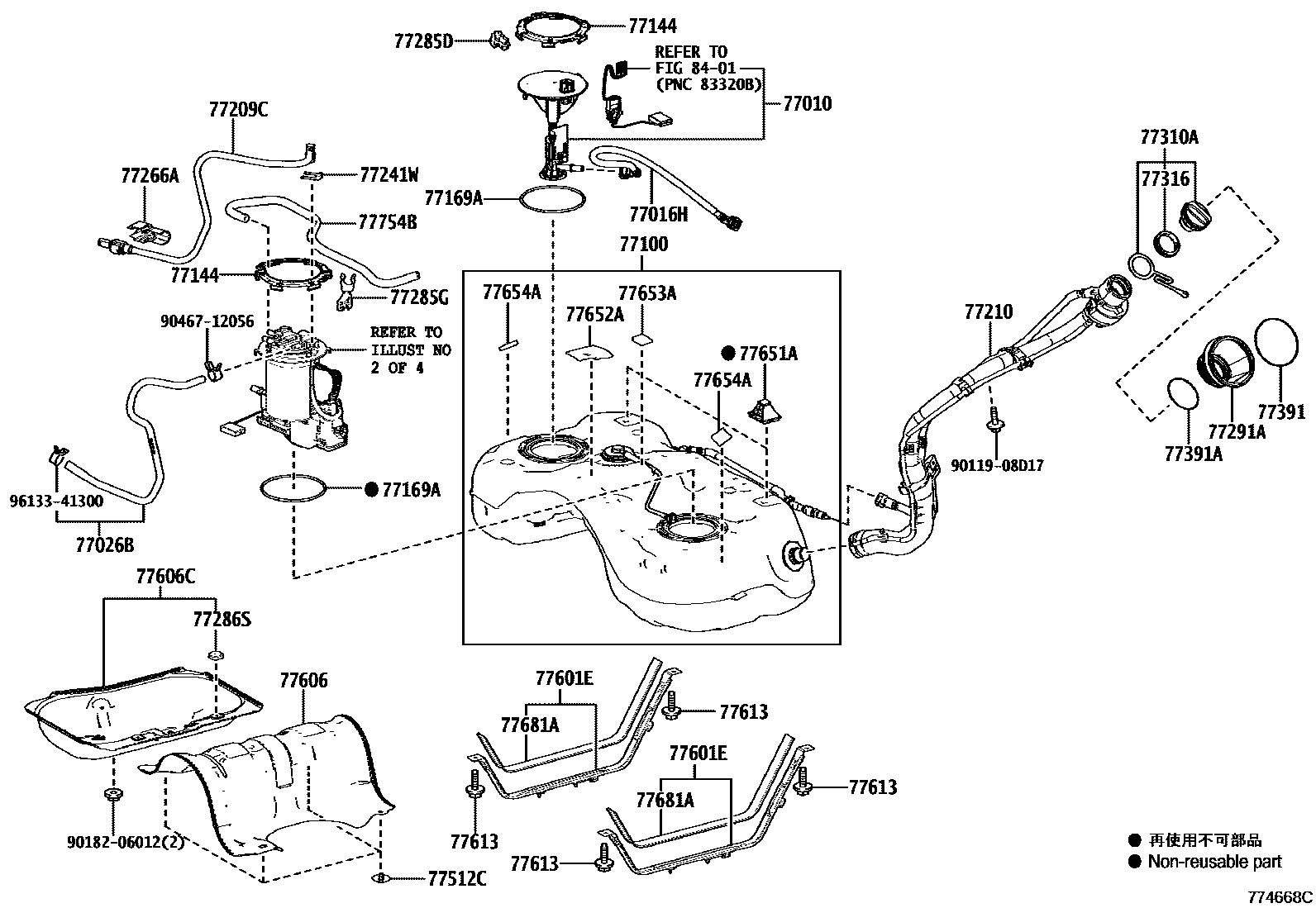

FUEL TANK & TUBE
77010TUBE ASSY, FUEL TANK VENT
main77010-42060iMXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAA5#,MXAA54..JPP..(ARL,GCC,GEN,RUS,SA)202210-202310
77016HTUBE SUB-ASSY, FUEL RETURN VENT
main77016-42070iMXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAA5#,MXAA54..JPP..(ARL,GCC,GEN,RUS,SA)202210-202310
77026BTUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77100TANK ASSY, FUEL
main77001-42330iAXAH52..G..ARL;AXAH54..ARL,GCC,GEN;AXAH52..LHD..G..GEN;AXAH52..(M,X)..(ARL,GEN)201811-202005
EXHAUST EMISSION CONTROL-TAIWAN6,WITH(ON BOARD DIAGNOSIS); TAIWAN SPEC
main77001-42350iAXAH52..(G,M)..GEN; AXAH52..P..GEN; AXAH52..X..GEN;AXAH54..P..GEN;AXAH5#,AXAL5#..EUR; AXAH54..LHD..G..GEN202210-202310
EXHAUST EMISSION CONTROL-TAIWAN6,WITH(ON BOARD DIAGNOSIS); TAIWAN SPEC; TAIWAN SPEC&EXHAUST EMISSION CONTROL-TAIWAN6,WITH(ON BOARD DIAGNOSIS)
main77001-48360iAXAH52..ARL,GCC;AXAH52..(G,M,P)..GEN;AXAH54..RHD..(ARL,GEN,SA);AXAH54..LHD..(G,M,X)..(GCC,GEN)202310
BRAZIL SPEC; BRAZIL SPEC&EXHAUST EMISSION CONTROL-BRAZIL L7,WITH(ON BOARD DIAGNOSIS)
77144RETAINER, FUEL PUMP GAUGE
77169AGASKET, FUEL SUCTION TUBE SET
main77169-47030iAXAH52..ARL,GCC;AXAH52..(G,M,P)..GEN;AXAH54..RHD..(ARL,GEN,SA);AXAH54..LHD..(G,M,X)..(GCC,GEN); AXAH54..P..GEN; MXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAA5#,MXAA54..ARL,GCC,GEN,SA202210-202310
OTHER LATIN-NCAP COUNTRY
main77169-47040iAXAH52..(G,M)..GEN; AXAH52..P..GEN; AXAH54..LHD..G..GEN; AXAL5#;AXAH52..X..GEN;AXAH54..P..GEN;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;AXAH54..LHD..(G,M,P,V)..EUR; MXAA52..LHD..CVT..X..GEN; MXAA52..LHD..G; MXAA54..JPP..RUS202310
BRAZIL SPEC&EXHAUST EMISSION CONTROL-BRAZIL L7,WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-TAIWAN6,WITH(ON BOARD DIAGNOSIS); TAIWAN SPEC; TAIWAN SPEC&EXHAUST EMISSION CONTROL-TAIWAN6,WITH(ON BOARD DIAGNOSIS)
77209CTUBE SUB-ASSY, FUEL TANK MAIN
main77209-42230iAXAH52..(G,M)..GEN; AXAH52..P..GEN; AXAH52..X..GEN;AXAH54..P..GEN;AXAH5#,AXAL5#..EUR; AXAH54..LHD..G..GEN202210-202310
BRAZIL SPEC&EXHAUST EMISSION CONTROL-BRAZIL L7,WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-TAIWAN6,WITH(ON BOARD DIAGNOSIS); TAIWAN SPEC; TAIWAN SPEC&EXHAUST EMISSION CONTROL-TAIWAN6,WITH(ON BOARD DIAGNOSIS)
main77209-42241iAXAH52..ARL,GCC;AXAH52..(G,M,P)..GEN;AXAH54..RHD..(ARL,GEN,SA);AXAH54..LHD..(G,M,X)..(GCC,GEN); AXAH54..P..GEN202210-202310
OTHER LATIN-NCAP COUNTRY
77210PIPE ASSY, FUEL TANK FILLER
main77210-42211iAXAH52..ARL,GCC;AXAH52..(G,M,P)..GEN;AXAH54..RHD..(ARL,GEN,SA);AXAH54..LHD..(G,M,X)..(GCC,GEN); AXAH54..P..GEN202210-202310
OTHER LATIN-NCAP COUNTRY
main77210-42250iAXAH52..(G,M)..GEN; AXAH52..P..GEN; AXAH52..X..GEN;AXAH54..P..GEN;AXAH5#,AXAL5#..EUR; AXAH54..LHD..G..GEN202210-202310
EXHAUST EMISSION CONTROL-TAIWAN6,WITH(ON BOARD DIAGNOSIS); TAIWAN SPEC; TAIWAN SPEC&EXHAUST EMISSION CONTROL-TAIWAN6,WITH(ON BOARD DIAGNOSIS)
BRAZIL SPEC
77241WCLIP, TUBE JOINT
77266APROTECTOR, FUEL TUBE, NO.1
main77266-53020iAXAA54..LHD..(G,V)..GEN;MXAA52..LHD..CVT..(M,X)..GEN;MXAA54..LHD..CVT..(G,V,X)..GEN; MXAA5#..LHD..(V,X)..GEN;MXAA52..LHD..CVT..M..GEN;AXAA54..LHD..(G,V,X)..GEN; MXAA52..LHD..(G,X)..GEN; MXAA52..RHD..X..GEN;MXAA52..RHD..(G,M)..(GEN,SA);AXAA54,MXAA54..RHD..(GEN,SA); MXAA54..6F..X;MXAA52..LHD..X..GEN;AXAA54..LHD..G..GEN; MXAA54..6F..X;MXAA52..LHD..X..GEN;MXAA52..LHD..CVT..M..GEN;AXAA54..LHD..(G,M,V)..GEN; MXAA54..LHD..V; MXAA54..LHD..V;MXAA52..LHD..(M,X)..GEN202210-202310
CHILE SPEC; COLOMBIA SPEC; ECUADOR SPEC; LIBYA SPEC; PANAMA SPEC; PARAGUAY SPEC; TUNISIA SPEC
77285DCLAMP, FUEL TUBE, NO.1
77285GCLAMP, FUEL TUBE, NO.1
main77285-42230iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAA52..LHD..(G,M)..GEN;MXAA54..JPP..CVT..(M,X);MXAA54..(G,V)..(EUR,GEN,SA);MXAA54..JPP..LHD..6F..(M,X);AXAA54..(G,M,X)..(GCC,GEN,SA);AXAA52,MXAA52..(6F,8FC)..(EUR,GCC,SA)202008-202210
BRAZIL SPEC; BRAZIL SPEC&EXHAUST EMISSION CONTROL-BRAZIL L7,WITH(ON BOARD DIAGNOSIS)
77286SCUSHION, FUEL TANK PROTECTOR
77291ASHIELD, FUEL TANK FILLER PIPE
77310ACAP ASSY, FUEL TANK
REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)
BRAZIL SPEC; BRAZIL SPEC&EXHAUST EMISSION CONTROL-BRAZIL L7,WITH(ON BOARD DIAGNOSIS)
77316GASKET, FUEL TANK CAP
REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL; SINGAPOLE SPEC
main77316-75020iAXAH54,AXAL5#,MXAA5#..LHD..EUR; MXAA52..RHD..6F..EUR;AXAH5#,AXAL5#..RHD..EUR201811-202007
REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77512CBRACKET, FUEL TANK
77601EBAND SUB-ASSY, FUEL TANK
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
main77606-42030iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAA52..LHD..(G,M)..GEN;MXAA54..JPP..CVT..(M,X);MXAA54..(G,V)..(EUR,GEN,SA);MXAA54..JPP..LHD..6F..(M,X);AXAA54..(G,M,X)..(GCC,GEN,SA);AXAA52,MXAA52..(6F,8FC)..(EUR,GCC,SA)202008-202210
BRAZIL SPEC; BRAZIL SPEC&EXHAUST EMISSION CONTROL-BRAZIL L7,WITH(ON BOARD DIAGNOSIS)
77606CPROTECTOR, FUEL TANK, NO.2
77613BOLT, FUEL TANK BAND SET
77651ACUSHION, FUEL TANK, NO.1
77652ACUSHION, FUEL TANK, NO.2
main77652-42040iAXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAL5#..(G,M,P,V)..EUR;AXAH5#..X..(ARL,GCC,GEN);AXAH52..LHD..(G,M,P)..GEN;AXAH5#,AXAL5#..LHD..X..EUR;AXAH5#..(G,M,P,V)..(ARL,EUR,GCC,SA)202008-202210
77653ACUSHION, FUEL TANK, NO.3
77654ACUSHION, FUEL TANK, NO.4
77681ASEAT, FUEL TANK BAND
main77681-42040iAXAL5#;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;AXAH5#..ARL,GCC,GEN,SA;AXAH54..LHD..(G,M,P,V)..EUR202310
77754BHOSE, CHARCOAL CANISTER OUTLET
8401SWITCH & RELAY & COMPUTER
9011908D17
main90119-08D17
9018206012
main90182-06012
9046712056
main90467-12056
9613341300
main96133-41300
34 parts on this diagram · 12 diagrams in section
