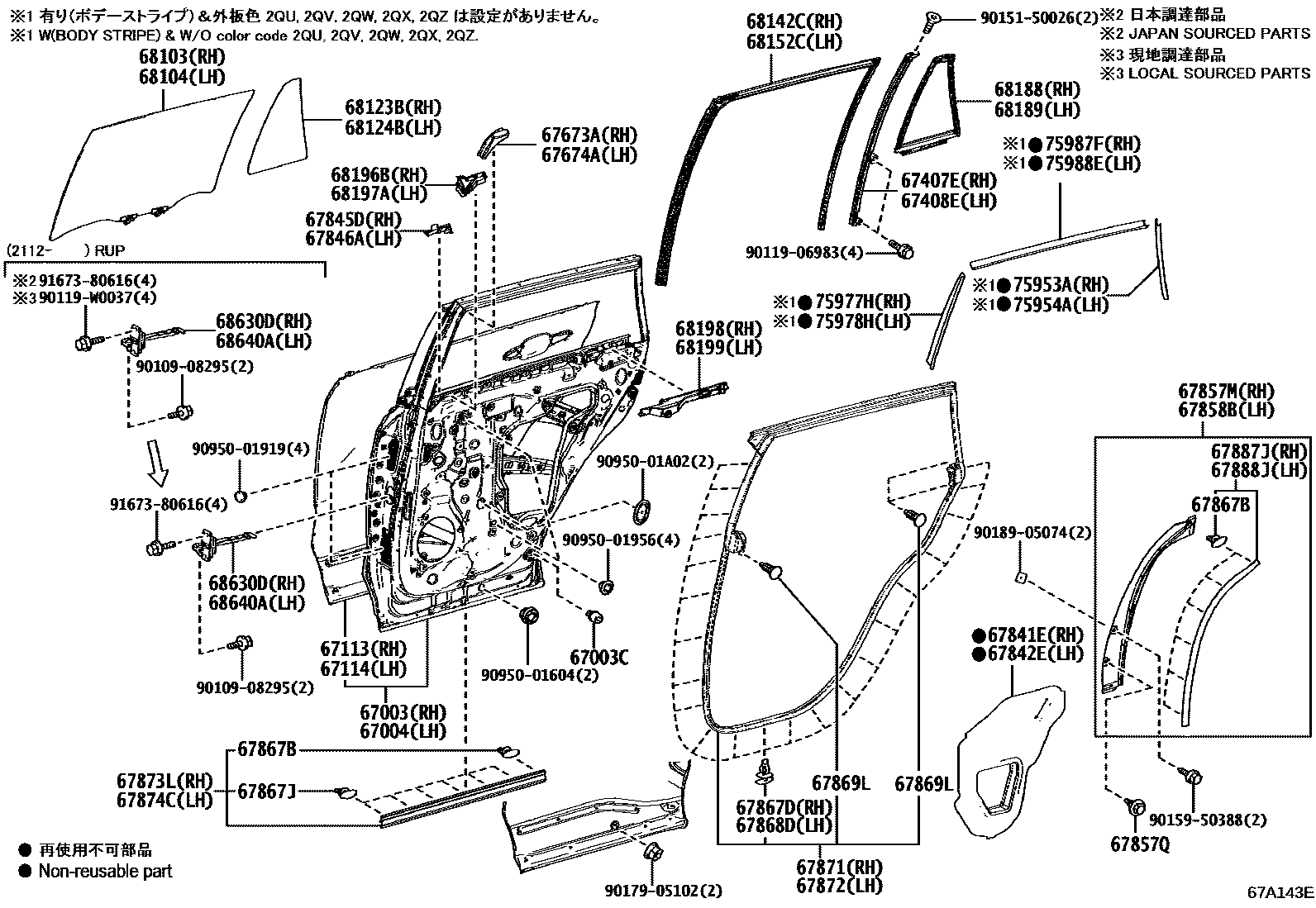

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-0R150iAXAA54,MXAA5#..RUS201910-202009

main67003-0R151iAXAA54,MXAA5#..RUS202104-202203

main67003-42190iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-201909

main67003-42191iAXAH54..X..EUR;AXAH54..RHD..EUR;AXAH52..RHD..M..EUR202310-202410

main67003-42200iAXAA5#,AXAH5#,AXAL5#,MXAA5#..JPP202101-202102

67003CCUSHION, REAR DOOR PANEL

main90541-09137×2iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-201909

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-0R150iAXAA54,MXAA5#..RUS201910-202009

main67004-0R151iAXAA54,MXAA5#..RUS202104-202203

main67004-42190iAXAA5#,AXAH5#,AXAL5#,MXAA5#..JPP202008-202101

main67004-42191iAXAL5#..ARL;AXAA54..G..ARL;AXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5#..RHD..X..EUR202102-202111

main67004-42200iAXAA5#,AXAH5#,AXAL5#,MXAA5#..JPP202101-202102

67113PANEL, REAR DOOR, OUTER RH

main67113-0R120iAXAA54,MXAA5#..RUS201910-202009

main67113-42120iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;MXAA54..JPP..CVT..(M,X);AXAH5#..X..(ARL,GCC,GEN);AXAH5#,AXAL5#..LHD..X..EUR;MXAA54..(G,V)..(EUR,GEN,SA);MXAA54..JPP..LHD..6F..(M,X);AXAA54..(G,M,X)..(GCC,GEN,SA);AXAA52,AXAH52..LHD..(G,M,P)..GEN;AXAH5#..(G,M,P,V)..(ARL,EUR,GCC,SA);AXAA52,MXAA52..(6F,8FC)..(EUR,GCC,SA)202008-202210

67114PANEL, REAR DOOR, OUTER LH

main67114-0R120iAXAA54,MXAA5#..RUS201910-202009

main67114-42120iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;MXAA54..JPP..CVT..(M,X);AXAH5#..X..(ARL,GCC,GEN);AXAH5#,AXAL5#..LHD..X..EUR;MXAA54..(G,V)..(EUR,GEN,SA);MXAA54..JPP..LHD..6F..(M,X);AXAA54..(G,M,X)..(GCC,GEN,SA);AXAA52,AXAH52..LHD..(G,M,P)..GEN;AXAH5#..(G,M,P,V)..(ARL,EUR,GCC,SA);AXAA52,MXAA52..(6F,8FC)..(EUR,GCC,SA)202008-202210

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-42050iAXAH54..X..EUR;AXAH54..RHD..EUR;AXAH52..RHD..M..EUR202310-202410

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-42050iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;MXAA54..JPP..CVT..(M,X);AXAH5#..X..(ARL,GCC,GEN);AXAH5#,AXAL5#..LHD..X..EUR;MXAA54..(G,V)..(EUR,GEN,SA);MXAA54..JPP..LHD..6F..(M,X);AXAA54..(G,M,X)..(GCC,GEN,SA);AXAA52,AXAH52..LHD..(G,M,P)..GEN;AXAH5#..(G,M,P,V)..(ARL,EUR,GCC,SA);AXAA52,MXAA52..(6F,8FC)..(EUR,GCC,SA)202008-202210

67673AGARNISH, REAR DOOR FRAME, RH

main67673-42010iAXAA54..EUR;AXAH52..RHD..G..GEN201811-202004

67674AGARNISH, REAR DOOR FRAME, LH

main67674-42010iMXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXAL5#,MXAA52..CVT..(ARL,EUR,GCC,GEN,SA)201811-202007

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-42070iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;MXAA54..JPP..CVT..(M,X);AXAH5#..X..(ARL,GCC,GEN);AXAH5#,AXAL5#..LHD..X..EUR;MXAA54..(G,V)..(EUR,GEN,SA);MXAA54..JPP..LHD..6F..(M,X);AXAA54..(G,M,X)..(GCC,GEN,SA);AXAA52,AXAH52..LHD..(G,M,P)..GEN;AXAH5#..(G,M,P,V)..(ARL,EUR,GCC,SA);AXAA52,MXAA52..(6F,8FC)..(EUR,GCC,SA)202008-202210

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-42050iAXAL5#..ARL;AXAA54..G..ARL;AXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5#..RHD..X..EUR202008-202111

67845DSEAL, REAR DOOR FRONT OUTSIDE, RH

main67845-0R040iAXAA54,MXAA5#..RUS201910-202009

main67845-42010iMXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXAL5#,MXAA52..CVT..(ARL,EUR,GCC,GEN,SA)201811-202007

67846ASEAL, REAR DOOR FRONT OUTSIDE, LH

main67846-0R040iAXAA54,MXAA5#..RUS202010-202203

main67846-42010iAXAA5#,AXAL5#..JPP;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;MXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAH54..LHD..(G,M,P,V)..EUR;AXAH5#,MXAA54..JPP..(ARL,GCC,GEN,RUS,SA)202310

67857MPROTECTOR, REAR DOOR PANEL, RH

main67857-0R090iAXAA54,MXAA5#..RUS202010-202203

main67857-42100iMXAA54..EUR;MXAA52..G..EUR;MXAA52..(M,X)..(EUR,SA)202210

main67857-42110iAXAA54,MXAA54..V201811-202007

67857QCLIP, REAR DOOR PANEL PROTECTOR

main90467-06165-C0×2iAXAA54,MXAA5#..RUS201910-202009

BLACK

main90467-06165-C3×2iAXAA54..EUR;AXAH52..RHD..G..GEN201811-202004

BLACK

67858BPROTECTOR, REAR DOOR PANEL, LH

main67858-0R060iAXAA54,MXAA5#..RUS202010-202203

main67858-42030iAXAA54..EUR;AXAH52..RHD..G..GEN201811-202004

main67858-42040iAXAA54..LHD..V..GEN;MXAA54..V..(GEN,SA);AXAA54,AXAH54,AXAL54..V..(ARL,EUR,GCC,SA)202008-202210

67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)

main53145-60030×14iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-201909

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150×22iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-201909

67867JCLIP, DOOR WEATHERSTRIP, RH(FOR REAR DOOR)

main67867-12150×12iAXAA54,MXAA5#..RUS201811-202009

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150×22iAXAA5#,AXAL5#..JPP;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;MXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAH54..LHD..(G,M,P,V)..EUR;AXAH5#,MXAA54..JPP..(ARL,GCC,GEN,RUS,SA)202310

67869LCLIP, REAR DOOR WEATHERSTRIP

main67869-26050×6iAXAA54..EUR;AXAH52..RHD..G..GEN201811-202004

67871WEATHERSTRIP, REAR DOOR, RH

main67871-42140iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-201909

67872WEATHERSTRIP, REAR DOOR, LH

main67872-42140iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-201909

67873LWEATHERSTRIP, REAR DOOR, NO.5 RH

main67873-42030iAXAA54,MXAA5#..RUS202008-202203

67874CWEATHERSTRIP, REAR DOOR, NO.5 LH

main67874-42030iMXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXAL5#,MXAA52..CVT..(ARL,EUR,GCC,GEN,SA)201811-202007

67887JWEATHERSTRIP, ACCESS PANEL, NO.2 RH

main67887-42010iMXAA52..X..(ARL,GCC,GEN);AXAA5#,AXAH5#,AXAL5#..JPP;MXAA52..(G,M)..(ARL,GEN,SA);MXAA54..JPP..(GCC,GEN,RUS,SA)202210-202310

67888JWEATHERSTRIP, ACCESS PANEL, NO.2 LH

main67888-42010iAXAA5#,AXAL5#..JPP;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;MXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAH54..LHD..(G,M,P,V)..EUR;AXAH5#,MXAA54..JPP..(ARL,GCC,GEN,RUS,SA)202310

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-0R130iAXAA54,MXAA5#..RUS202010-202203

main68103-42190supersedes 68103-42200iMXAA54..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA52..LHD..G..EUR;AXAA54..LHD..V..GEN;AXAH54..G..(EUR,GEN);AXAA5#,MXAA52..G..GEN;AXAH52,AXAL5#..G..EUR;MXAA54..LHD..CVT..(G,V)..(EUR,GEN); MXAA54..G..GCC;MXAA54..(M,X)..GEN;AXAA5#,AXAH54..(G,V)..GCC;MXAA54..(M,V,X)..(EUR,GCC);AXAA54..(M,X)..(ARL,GCC,GEN);AXAA52,AXAH5#,AXAL5#,MXAA52..(M,X)..(ARL,EUR,GCC,GEN,SA)201811-202007

REAR SIDE GLASS-REINFORCED UV-CUT(GREEN)

main68103-42200supersedes 68103-42190iAXAA54,AXAH5#,MXAA52..M..ARL; AXAL5#..M..ARL202112-202210

main68103-42210iAXAH54..LHD..G..GEN201902-202007

BRAZIL SPEC&REAR SIDE GLASS-REINFORCED UV-CUT(GREEN)

main68103-42211iAXAH54..P..GEN202310-202411

BRAZIL SPEC&REAR SIDE GLASS-REINFORCED UV-CUT(GREEN)

main68103-42230iAXAA54..LHD..G..GEN; MXAA54..6F..X;MXAA52..LHD..X..GEN202210-202310

ECUADOR SPEC; ECUADOR SPEC&REAR SIDE GLASS-REINFORCED UV-CUT(GREEN)

main68103-42240iAXAA54..LHD..G..GEN202310

ECUADOR SPEC

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-0R130iAXAA54,MXAA5#..RUS202010-202203

main68104-42190supersedes 68104-42200iMXAA54..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA52..LHD..G..EUR;AXAA54..LHD..V..GEN;AXAH54..G..(EUR,GEN);AXAA5#,MXAA52..G..GEN;AXAH52,AXAL5#..G..EUR;MXAA54..LHD..CVT..(G,V)..(EUR,GEN); MXAA54..G..GCC;MXAA54..(M,X)..GEN;AXAA5#,AXAH54..(G,V)..GCC;MXAA54..(M,V,X)..(EUR,GCC);AXAA54..(M,X)..(ARL,GCC,GEN);AXAA52,AXAH5#,AXAL5#,MXAA52..(M,X)..(ARL,EUR,GCC,GEN,SA)201811-202007

REAR SIDE GLASS-REINFORCED UV-CUT(GREEN)

main68104-42200supersedes 68104-42190iAXAH52..(G,P)..(EUR,GEN);AXAH54..LHD..(G,P,V)..EUR;MXAA5#..JPP..M..(ARL,RUS);AXAA54,AXAH52..(G,M,P)..ARL;AXAH54..(G,M,P,V)..(ARL,GEN,SA);MXAA5#..JPP..(G,V)..(ARL,GEN,RUS,SA);AXAA54,AXAL5#..(G,P,V)..(ARL,EUR,GEN,SA); MXAA5#..M..GEN;AXAH5#..LHD..M..(EUR,GEN);AXAA54,AXAL5#..M..(EUR,GEN)202310

REAR SIDE GLASS-REINFORCED(GRAY)

main68104-42210iAXAH54..LHD..G..GEN201902-202007

BRAZIL SPEC&REAR SIDE GLASS-REINFORCED UV-CUT(GREEN)

main68104-42211iAXAH54..LHD..GEN202210-202310

BRAZIL SPEC&REAR SIDE GLASS-REINFORCED UV-CUT(GREEN)

main68104-42230iAXAA54..LHD..G..GEN; MXAA54..6F..X;MXAA52..LHD..X..GEN202210-202310

ECUADOR SPEC; ECUADOR SPEC&REAR SIDE GLASS-REINFORCED UV-CUT(GREEN)

main68104-42240iAXAA5#..LHD..G..GEN; MXAA54..6F..X;MXAA52..LHD..X..GEN;AXAA5#..LHD..(M,X)..GEN201811-202007

ECUADOR SPEC; ECUADOR SPEC&REAR SIDE GLASS-REINFORCED(GRAY)

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-0R130iAXAA54,MXAA5#..RUS202010-202203

main68123-42190supersedes 68123-42200iAXAA52;AXAH5#..X;MXAA52..M..GEN;MXAA52..X..(ARL,GCC,GEN);AXAH5#..M..(EUR,GCC,GEN);MXAA54..(M,X)..(GCC,GEN);AXAA54,AXAH54..(G,V)..GCC;AXAA54,AXAL5#..(M,X)..(EUR,GCC,GEN); MXAA52..G..GEN;MXAA54..LHD..(G,V)..GEN;AXAA54,AXAH5#,AXAL5#..(G,P,V)..(EUR,GEN)202210-202310

REAR SIDE GLASS-REINFORCED UV-CUT(GREEN)

main68123-42200supersedes 68123-42190iMXAA54..6F..G..EUR;MXAA52..LHD..G..EUR;AXAH52..LHD..G..GEN;AXAH52..G..(ARL,EUR);AXAA54,MXAA52..(ATM,CVT)..(G,V)..(ARL,GEN,SA);AXAA52,AXAH54,AXAL5#,MXAA54..(ATM,CVT)..(G,V)..(ARL,EUR,GEN,SA); MXAA54..RHD..M;AXAH5#,AXAL5#..X..EUR;MXAA52..6F..(M,X)..EUR;AXAA54,MXAA52..LHD..X..GEN;AXAA54,MXAA52..M..(ARL,GEN);MXAA52..LHD..CVT..(M,X)..EUR;AXAH5#,AXAL5#..M..(ARL,EUR,GEN);AXAA52,MXAA54..LHD..(M,X)..(EUR,GEN)201811-202007

REAR SIDE GLASS-REINFORCED(GRAY)

main68123-42210iAXAH54..LHD..(G,P)..GEN202008-202210

BRAZIL SPEC&REAR SIDE GLASS-REINFORCED UV-CUT(GREEN)

main68123-42220iAXAA5#..LHD..G..GEN; MXAA54..6F..X;MXAA52..LHD..X..GEN;AXAA5#..LHD..(M,X)..GEN201811-202007

ECUADOR SPEC; ECUADOR SPEC&REAR SIDE GLASS-REINFORCED UV-CUT(GREEN)

main68123-42230iAXAA54..LHD..G..GEN202310

ECUADOR SPEC

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-0R130iAXAA54,MXAA5#..RUS201910-202009

main68124-42190supersedes 68124-42200iMXAA54..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA52..LHD..G..EUR;AXAA54..LHD..V..GEN;AXAH54..G..(EUR,GEN);AXAA5#,MXAA52..G..GEN;AXAH52,AXAL5#..G..EUR;MXAA54..LHD..CVT..(G,V)..(EUR,GEN); MXAA54..G..GCC;MXAA54..(M,X)..GEN;AXAA5#,AXAH54..(G,V)..GCC;MXAA54..(M,V,X)..(EUR,GCC);AXAA54..(M,X)..(ARL,GCC,GEN);AXAA52,AXAH5#,AXAL5#,MXAA52..(M,X)..(ARL,EUR,GCC,GEN,SA)201811-202007

REAR SIDE GLASS-REINFORCED UV-CUT(GREEN)

main68124-42200supersedes 68124-42190iAXAA54..V..ARL;AXAA52..LHD..G..GEN;AXAA54..LHD..V..GEN;MXAA52..LHD..G..EUR;AXAL54..(G,P,V)..EUR;MXAA52..G..(ARL,GEN,SA);AXAA54,AXAL52..(G,P)..(EUR,GEN,SA);AXAH5#,MXAA54..(G,P,V)..(ARL,EUR,GEN,SA); AXAH5#..M..EUR;MXAA52..M..GEN;AXAH5#..LHD..M..GEN;MXAA52..LHD..M..EUR;MXAA54..JPP..LHD..6F..M;AXAA5#,AXAL5#,MXAA54..(ATM,CVT)..M..(EUR,GEN)202008-202210

REAR SIDE GLASS-REINFORCED(GRAY)

main68124-42210iAXAH54..LHD..(G,P)..GEN202008-202210

BRAZIL SPEC&REAR SIDE GLASS-REINFORCED UV-CUT(GREEN)

main68124-42220iAXAA54..LHD..G..GEN; MXAA54..6F..X;MXAA52..LHD..X..GEN202210-202310

ECUADOR SPEC; ECUADOR SPEC&REAR SIDE GLASS-REINFORCED UV-CUT(GREEN)

main68124-42230iAXAA5#..LHD..G..GEN; MXAA54..6F..X;MXAA52..LHD..X..GEN;AXAA5#..LHD..(M,X)..GEN201811-202007

ECUADOR SPEC; ECUADOR SPEC&REAR SIDE GLASS-REINFORCED(GRAY)

68142CRUN, REAR DOOR GLASS, RH

main68142-42060iAXAA5#,AXAH5#,MXAA5#201811-201903

main68142-42061iMXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXAL5#,MXAA52..CVT..(ARL,EUR,GCC,GEN,SA)201904-202007

68152CRUN, REAR DOOR GLASS, LH

main68152-42060iAXAA5#,AXAH5#,MXAA5#201811-201903

main68152-42061iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201904-201909

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-42070iAXAL5#..ARL;AXAA54..G..ARL;AXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5#..RHD..X..EUR202008-202111

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-42070iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;MXAA54..JPP..CVT..(M,X);AXAH5#..X..(ARL,GCC,GEN);AXAH5#,AXAL5#..LHD..X..EUR;MXAA54..(G,V)..(EUR,GEN,SA);MXAA54..JPP..LHD..6F..(M,X);AXAA54..(G,M,X)..(GCC,GEN,SA);AXAA52,AXAH52..LHD..(G,M,P)..GEN;AXAH5#..(G,M,P,V)..(ARL,EUR,GCC,SA);AXAA52,MXAA52..(6F,8FC)..(EUR,GCC,SA)202008-202210

68196BSEAL, REAR DOOR BELT, FRONT RH

main68196-0R040iAXAA54,MXAA5#..RUS201910-202009

main68196-42010iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;MXAA54..JPP..CVT..(M,X);AXAH5#..X..(ARL,GCC,GEN);AXAH5#,AXAL5#..LHD..X..EUR;MXAA54..(G,V)..(EUR,GEN,SA);MXAA54..JPP..LHD..6F..(M,X);AXAA54..(G,M,X)..(GCC,GEN,SA);AXAA52,AXAH52..LHD..(G,M,P)..GEN;AXAH5#..(G,M,P,V)..(ARL,EUR,GCC,SA);AXAA52,MXAA52..(6F,8FC)..(EUR,GCC,SA)202008-202210

68197ASEAL, REAR DOOR BELT, FRONT LH

main68197-0R040iAXAA54,MXAA5#..RUS201910-202009

main68197-42010iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;MXAA54..JPP..CVT..(M,X);AXAH5#..X..(ARL,GCC,GEN);AXAH5#,AXAL5#..LHD..X..EUR;MXAA54..(G,V)..(EUR,GEN,SA);MXAA54..JPP..LHD..6F..(M,X);AXAA54..(G,M,X)..(GCC,GEN,SA);AXAA52,AXAH52..LHD..(G,M,P)..GEN;AXAH5#..(G,M,P,V)..(ARL,EUR,GCC,SA);AXAA52,MXAA52..(6F,8FC)..(EUR,GCC,SA)202008-202210

68198SEAL, REAR DOOR BELT, REAR RH

main68198-0R040iAXAA54,MXAA5#..RUS202010-202203

main68198-42010iMXAA52..X..(ARL,GCC,GEN);AXAA5#,AXAH5#,AXAL5#..JPP;MXAA52..(G,M)..(ARL,GEN,SA);MXAA54..JPP..(GCC,GEN,RUS,SA)202210-202310

68199SEAL, REAR DOOR BELT, REAR LH

main68199-0R040iAXAA54,MXAA5#..RUS201910-202009

main68199-42010iMXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXAL5#,MXAA52..CVT..(ARL,EUR,GCC,GEN,SA)201811-202007

68630DCHECK ASSY, REAR DOOR, RH

main68630-42050iMXAA54..EUR;MXAA52..G..EUR;MXAA52..(M,X)..(EUR,SA)202210

68640ACHECK ASSY, REAR DOOR, LH

main68630-42050iAXAA54..EUR;AXAH52..RHD..G..GEN201811-202004

75953ATAPE, BLACK OUT, INNER REAR RH

main75953-42010iAXAH5#,AXAL5#..M..EUR201811-202007

BODY STRIPE-WITH

75954ATAPE, BLACK OUT, INNER REAR LH

main75954-42010iAXAH5#,AXAL5#..M..EUR201811-202007

BODY STRIPE-WITH

75977HSTRIPE, REAR DOOR OUTSIDE, LOWER RH

main75977-42050iAXAH5#,AXAL5#..M..EUR201811-202007

BODY STRIPE-WITH

75978HSTRIPE, REAR DOOR OUTSIDE, LOWER LH

main75978-42050iAXAH52,AXAL5#..P;AXAH54..LHD..P..EUR;AXAH54..P..(ARL,GEN)202310

BODY STRIPE-WITHOUT

75987FSTRIPE, REAR DOOR, OUTSIDE, RH

main75987-42060iAXAH5#,AXAL5#..M..EUR201811-202007

BODY STRIPE-WITH

75988ESTRIPE, REAR DOOR, OUTSIDE LH

main75988-42060iAXAH5#,AXAL5#..M..EUR201811-202007

BODY STRIPE-WITH

9010908295

main90109-08295

9011906983

main90119-06983

90119W0037

main90119-W0037

9015150026

main90151-50026

9015950388

main90159-50388

9017905102

main90179-05102

9018905074

main90189-05074

9095001604

main90950-01604

9095001919

main90950-01919

9095001956

main90950-01956

9095001A02

main90950-01A02

9167380616

main91673-80616

59 parts on this diagram · 2 diagrams in section
