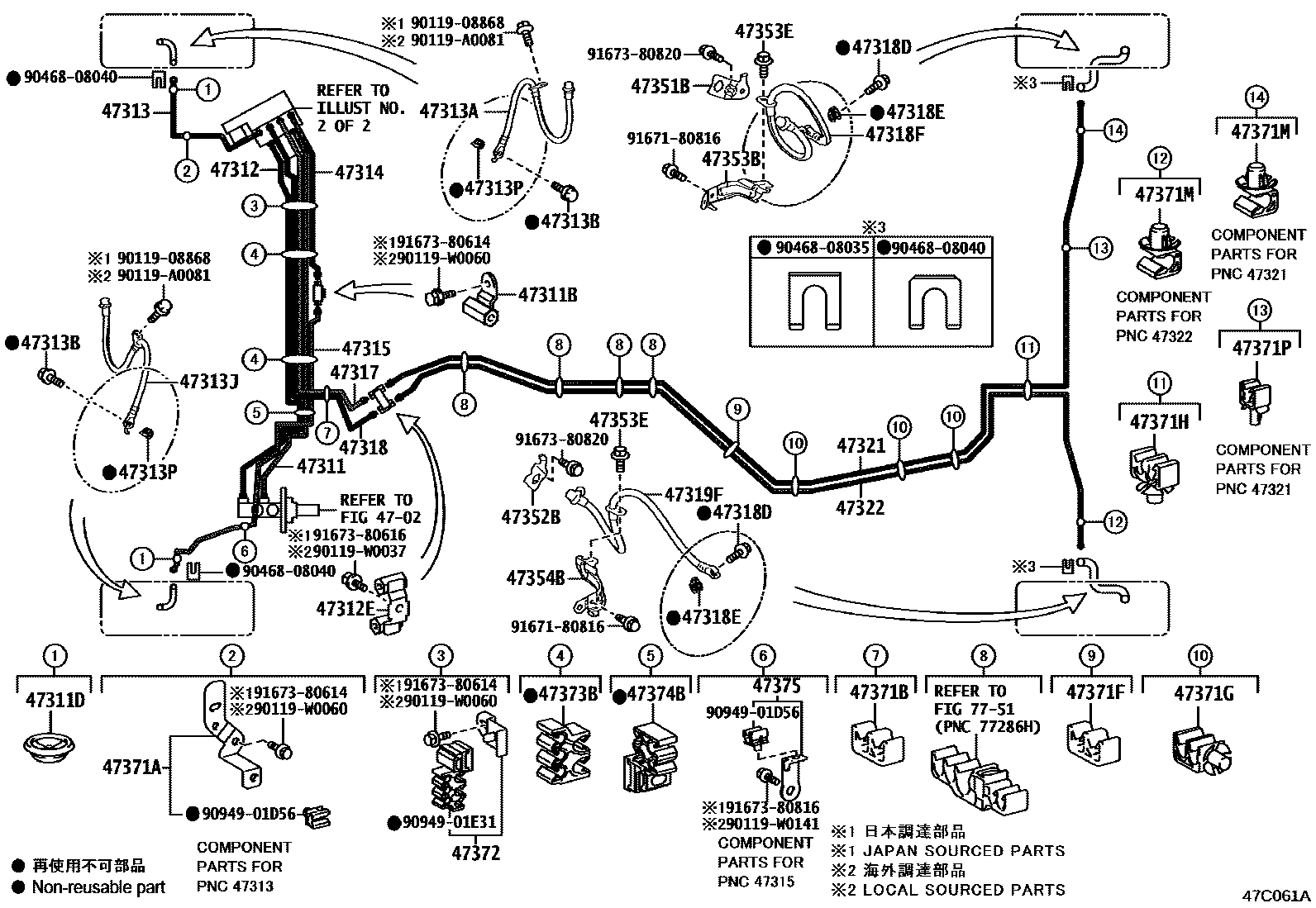

BRAKE TUBE & CLAMP

0001 1BRAKE TUBE 0002 1BRAKE TUBE 0003 1BRAKE TUBE 0004 1BRAKE TUBE 0005 1BRAKE TUBE 0006 1BRAKE TUBE 0007 1BRAKE ACTUATOR 0008 1BRAKE ACTUATOR 0009 1BRAKE BOOSTER PUMP 0010 1BRAKE ACTUATOR 0011 1BRAKE BOOSTER PUMP 0012 1BRAKE ACTUATOR

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47311TUBE, FRONT BRAKE, NO.1

main47311-0R130iAXAA54,MXAA5#..RUS201910-202009

main47311-42240iMXAA54..6F..G..GEN201811-201909

main47311-42250iMXAA52..RHD..CVT;AXAA5#,MXAA54..RHD;MXAA52..RHD..6F..(M,X)201811-202005

main47311-42260iAXAH5#,AXAL5#..LHD202112-202210

main47311-42270iAXAL5#..RHD;AXAH52..RHD..(G,P)..EUR;AXAH5#..RHD..(ARL,GEN,SA)202310

main47311-48110iAXAA54,MXAA54..RHD;MXAA52..RHD..X..(ARL,GEN);MXAA52..RHD..(G,M)..(ARL,GEN,SA)202210-202310

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10272iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-201909

47311DGROMMET(FOR FRONT BRAKE TUBE)

main90480-25037×2iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-201909

47312TUBE, FRONT BRAKE, NO.2

main47312-0R120iAXAA54,MXAA5#..RUS201910-202009

main47312-42410iMXAA54..6F..G..GEN201811-201909

main47312-42420iMXAA52..6F..G..SA201811-201909

main47312-42430iAXAH54..X..GCC;AXAH52,AXAL5#..LHD;AXAH54..LHD..(G,M,P,V)202310

main47312-42440iAXAH5#,AXAL5#..RHD202210-202310

main47312-48060iAXAA54,MXAA54..RHD;MXAA52..RHD..X..(ARL,GEN);MXAA52..RHD..(G,M)..(ARL,GEN,SA)202310

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10285iAXAA54,MXAA5#..RUS202008-202203

47313TUBE, FRONT BRAKE, NO.3

main47313-0R160iAXAA54,MXAA5#..RUS201910-202009

main47313-42420iMXAA54..6F..G..GEN201811-201909

main47313-42430iMXAA52..6F..SA;MXAA5#..RHD..CVT;AXAA54..(M,V,X)..ARL;AXAA54..RHD..(G,M,X)..(GEN,SA)202008-202210

main47313-42440iAXAH5#,AXAL5#..LHD202008-202112

main47313-42450iAXAH5#..X..ARL;AXAH54..RHD..G..GEN;AXAL5#..RHD..(G,M)..EUR;AXAH5#..RHD..(G,M)..(ARL,EUR)202008-202112

main47313-48060iAXAH5#..X..ARL;AXAH54..RHD..G..GEN;AXAL5#..RHD..(G,M,P,V)..EUR;AXAH5#..RHD..(G,M,P,V)..(ARL,EUR,SA)202112-202210

main47313-48070iAXAH54..X..EUR202310-202410

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02J10supersedes 90947-02J12iAXAH52,MXAA5#..GCC; AXAH54..GCC;AXAA54..V..GCC202310

SAUDI ARABIA SPEC

main90947-02J12iAXAA5#,AXAL5#..JPP;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;MXAA52..X..(ARL,GEN);AXAH54..ARL,GCC,GEN,SA;MXAA52..(G,M)..(ARL,GEN,SA);AXAH54..LHD..(G,M,P,V)..EUR;AXAH52,MXAA54..JPP..(ARL,GEN,RUS,SA); AXAH52..GCC202310

JORDAN SPEC

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iAXAL5#..ARL;AXAA54..G..ARL;AXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5#..RHD..X..EUR202008-202111

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02J11supersedes 90947-02J15iAXAH52,MXAA5#..GCC; AXAH54..GCC;AXAA54..V..GCC202210-202310

SAUDI ARABIA SPEC

main90947-02J15iAXAA5#,AXAL5#..JPP;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;MXAA52..X..(ARL,GEN);AXAH54..ARL,GCC,GEN,SA;MXAA52..(G,M)..(ARL,GEN,SA);AXAH54..LHD..(G,M,P,V)..EUR;AXAH52,MXAA54..JPP..(ARL,GEN,RUS,SA); AXAH52..GCC202310

JORDAN SPEC

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50021×2iMXAA54..EUR;MXAA52..G..EUR;MXAA52..(M,X)..(EUR,SA)202210

47314TUBE, FRONT BRAKE, NO.4

main47314-0R180iAXAA54,MXAA5#..RUS201910-202009

main47314-42200iMXAA54..6F..G..GEN201811-201909

main47314-42210iMXAA52..RHD..CVT;AXAA5#,MXAA54..RHD;MXAA52..RHD..6F..(M,X)201811-202005

main47314-42260iAXAH54..RUS201811-201909

main47314-42270iAXAL5#..ARL;AXAH5#..RHD..M..GEN;AXAH5#,AXAL5#..RHD..X..EUR202008-202111

main47314-42280iAXAH5#,AXAL5#..LHD202112-202210

main47314-48070iAXAA5#,MXAA5#..RHD202005-202007

47315TUBE, FRONT BRAKE, NO.5

main47315-0R070iAXAA54,MXAA5#..RUS201910-202009

main47315-42260iMXAA54..6F..G..GEN201811-201909

main47315-42270iMXAA52..X..SA;MXAA52..G..EUR202210

main47315-42280iAXAH5#,AXAL5#..LHD202008-202112

main47315-42290iAXAH54,AXAL5#..RHD;AXAH52..RHD..(M,X);AXAH52..RHD..G..(ARL,EUR)201811-202007

main47315-42310iAXAH54..X..GCC;AXAH52,AXAL5#..LHD;AXAH54..LHD..(G,M,P,V)202310

main47315-42320iAXAH54..RHD..EUR;AXAH52..RHD..M..EUR202310-202410

47317TUBE, FRONT BRAKE, NO.7

main47317-0R160iAXAA54,MXAA5#..RUS201910-202009

main47317-42250iAXAA5#,MXAA5#..JPP..LHD..(GCC,GEN,RUS)202310

main47317-42260iMXAA52..RHD..CVT;AXAA5#,MXAA54..RHD;MXAA52..RHD..6F..(M,X)201811-202005

main47317-42270iAXAH5#,AXAL5#..LHD202008-202112

main47317-42280iAXAL5#..ARL;AXAH5#..RHD..M..GEN;AXAH5#,AXAL5#..RHD..X..EUR202008-202111

main47317-42290iAXAH54..X..GCC;AXAH52,AXAL5#..LHD;AXAH54..LHD..(G,M,P,V)202310

main47317-42300iAXAH5#,AXAL5#..RHD202210-202310

main47317-48400iMXAA52..X..SA;MXAA52..G..EUR202210

47318TUBE, FRONT BRAKE, NO.8

main47318-0R160iAXAA54,MXAA5#..RUS201910-202009

main47318-42250iMXAA54..6F..G..GEN201811-201909

main47318-42260iMXAA52..6F..G..SA201811-201909

main47318-42270iAXAH54..RUS201811-201909

main47318-42280iAXAH5#..X..ARL;AXAH54..RHD..G..GEN;AXAL5#..RHD..(G,M)..EUR;AXAH5#..RHD..(G,M)..(ARL,EUR)202008-202112

main47318-42290iAXAH5#,AXAL5#..LHD202210-202310

main47318-42300iAXAH5#,AXAL5#..RHD202210-202310

main47318-48250iMXAA52..X..SA;MXAA52..G..EUR202210

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058×2iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-201909

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50021×2iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-201909

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02J08iMXAA52..X..SA202210

main90947-02J43iAXAH54..X..EUR;AXAH54..RHD..EUR;AXAH52..RHD..M..EUR202310-202410

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02J09iAXAA54,MXAA5#..RUS201811-202009

main90947-02J44iMXAA54..G..EUR;AXAA5#,MXAA52..EUR,GCC;MXAA54..(M,X)..(EUR,GCC);AXAH5#,AXAL5#..LHD..X..(EUR,GCC);AXAH5#,AXAL5#..(G,M,P,V)..(EUR,GCC)202008-202210

47321TUBE, REAR BRAKE, NO.1

main47321-0R110iAXAA54,MXAA5#..RUS202010-202203

main47321-42210iAXAH54..X..EUR;AXAH54..RHD..EUR;AXAH52..RHD..M..EUR202310-202410

47322TUBE, REAR BRAKE, NO.2

main47322-0R110iAXAA54,MXAA5#..RUS201910-202009

(L)

main47322-42190iAXAA5#,AXAL5#..JPP;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;MXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAH54..LHD..(G,M,P,V)..EUR;AXAH5#,MXAA54..JPP..(ARL,GCC,GEN,RUS,SA)202310

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-06050iAXAH52..G..ARL;AXAH52,MXAA54..LHD..CVT..G..GEN;MXAA52..6F..(M,X)..(ARL,GEN,SA);AXAH52,MXAA54..(M,V,X)..(ARL,GEN,SA);AXAA5#,AXAH54,AXAL5#,MXAA52..(ATM,CVT)..(ARL,GEN,SA)201812-202007

(L)

main47351-47030iAXAL5#..ARL;AXAA54..G..ARL;AXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5#..RHD..X..EUR202008-202111

(J)

47352BBRACKET, FLEXIBLE HOSE, NO.2

main47352-06050iAXAH52..G..ARL;AXAH52,MXAA54..LHD..CVT..G..GEN;MXAA52..6F..(M,X)..(ARL,GEN,SA);AXAH52,MXAA54..(M,V,X)..(ARL,GEN,SA);AXAA5#,AXAH54,AXAL5#,MXAA52..(ATM,CVT)..(ARL,GEN,SA)201812-202007

(L)

main47352-47030iAXAH54..X..EUR;AXAH54..RHD..EUR;AXAH52..RHD..M..EUR202310-202410

(J)

47353BBRACKET, FLEXIBLE HOSE, NO.3

main47351-10110iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-201909

47353EBOLT(FOR FLEXIBLE HOSE BRACKET)

main90119-08868×2iAXAH52..LHD..M..EUR;AXAH54,MXAA52..X..GCC;AXAA5#,AXAL5#..EUR,GCC;MXAA54..JPP..(GCC,RUS);AXAH52..(G,P,X)..(EUR,GCC);AXAH54..LHD..(G,M,P,V)..(EUR,GCC); MXAA52..X..(ARL,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAA54,AXAH5#,MXAA54..ARL,GEN,SA202310

(J); MADE IN JAPAN

main90119-A0081×2iAXAA52..X..GEN;AXAA54..G..ARL;AXAA54..RHD..V..GEN;AXAH5#..RHD..M..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAA52,AXAL5#..RHD..(ARL,GEN)202008-202111

MADE IN TMMNA,NUMMI

main90119-W0011×2iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201812-201909

MADE IN EUROPE

main90119-W0171×2iAXAH52..RHD..G..GEN202003-202004

MADE IN EUROPE

47354BBRACKET, FLEXIBLE HOSE, NO.4

main47352-10060iAXAA54,MXAA5#..RUS201811-202009

47371ACLAMP, BRAKE TUBE, NO.1

main47371-42130iAXAA5#,AXAL5#..JPP;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;MXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAH54..LHD..(G,M,P,V)..EUR;AXAH5#,MXAA54..JPP..(ARL,GCC,GEN,RUS,SA)202310

47371BCLAMP, BRAKE TUBE, NO.6

main47371-42170iAXAH54,AXAL5#..RHD;AXAH52..RHD..(M,X);AXAH52..RHD..G..(ARL,EUR)201811-202007

main90464-00903iAXAA54,MXAA5#..RUS202008-202203

main90464-00957×2iAXAH5#,AXAL5#..LHD202008-202112

47371FCLAMP, BRAKE TUBE, NO.10

main90464-00903iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-201909

47371GCLAMP, BRAKE TUBE, NO.11

main90949-01D13iAXAH54..RUS; MXAA5#..6F..G..(GEN,SA)201811-201909

47371HCLAMP, BRAKE TUBE, NO.12

main90949-01D12iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-201909

47371MCLAMP, BRAKE TUBE, NO.13

main90949-01D17×2iMXAA52..X..(ARL,GCC,GEN);AXAA5#,AXAH5#,AXAL5#..JPP;MXAA52..(G,M)..(ARL,GEN,SA);MXAA54..JPP..(GCC,GEN,RUS,SA)202210-202310

47371PCLAMP, BRAKE TUBE, NO.14

main90949-01E01iMXAA52..X..(ARL,GCC,GEN);AXAA5#,AXAH5#,AXAL5#..JPP;MXAA52..(G,M)..(ARL,GEN,SA);MXAA54..JPP..(GCC,GEN,RUS,SA)202210-202310

47372CLAMP, BRAKE TUBE, NO.2

main47371-42150iAXAA54,MXAA5#..RUS201811-202009

main90949-01D35×2iAXAH5#,AXAL5#..LHD..(EUR,GCC,GEN)201811-202007

main90949-01D95iAXAH52..RHD..G..GEN201811-202004

main90949-01E30iMXAA52..X..SA;MXAA52..G..EUR202210

47373BCLAMP, BRAKE TUBE, NO.3

main47371-42150iAXAA54,MXAA54..RHD;MXAA52..RHD..X..(ARL,GEN);MXAA52..RHD..(G,M)..(ARL,GEN,SA)202310

main47371-42160iAXAH54..RUS201811-201909

main90949-01D64iAXAH52..RHD..G..GEN201811-202004

main90949-01E40×2iAXAA5#,MXAA5#..JPP..LHD..(GCC,GEN,RUS)202310

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01D91iAXAH54..RUS201811-201909

main90949-01E30iMXAA52..JPP..LHD;MXAA54..6F..G..EUR;MXAA54..JPP..CVT..G;AXAA5#..LHD..(GCC,GEN);MXAA54..JPP..LHD..(M,V,X)201811-202007

main90949-01E38iAXAH54,AXAL5#..RHD;AXAH52..RHD..(M,X);AXAH52..RHD..G..(ARL,EUR)201811-202007

main90949-01E40iAXAH5#..X..ARL;AXAH54..RHD..G..GEN;AXAL5#..RHD..(G,M,P,V)..EUR;AXAH5#..RHD..(G,M,P,V)..(ARL,EUR,SA); AXAH52..LHD..(G,M);AXAH52..LHD..X..EUR;AXAH54,AXAL5#..LHD..(G,M,X)202112-202210

47375CLAMP, BRAKE TUBE, NO.5

main47371-42140iAXAA52..X..GEN;MXAA54..(G,V)..GCC202008-202111

main90949-01D17×2iAXAA54,MXAA54..RHD;MXAA52..RHD..X..(ARL,GEN);MXAA52..RHD..(G,M)..(ARL,GEN,SA); AXAL5#..RHD;AXAH52..RHD..(G,P)..EUR;AXAH5#..RHD..(ARL,GEN,SA)202310

main90949-01E38iAXAH54..RUS201811-201909

main90949-04036iAXAH54,AXAL5#..RHD;AXAH52..RHD..(M,X);AXAH52..RHD..G..(ARL,EUR)201811-202007

7751FUEL TANK & TUBE

→ Go to FIG 77-51

9011908868

main90119-08868

90119A0081

main90119-A0081

90119W0037

main90119-W0037

90119W0060

main90119-W0060

90119W0141

main90119-W0141

9046808035

main90468-08035

9046808040

main90468-08040

9094901D56

main90949-01D56

9094901E31

main90949-01E31

9167180816

main91671-80816

9167380614

main91673-80614

9167380616

main91673-80616

9167380816

main91673-80816

9167380820

main91673-80820

52 parts on this diagram · 12 diagrams in section
