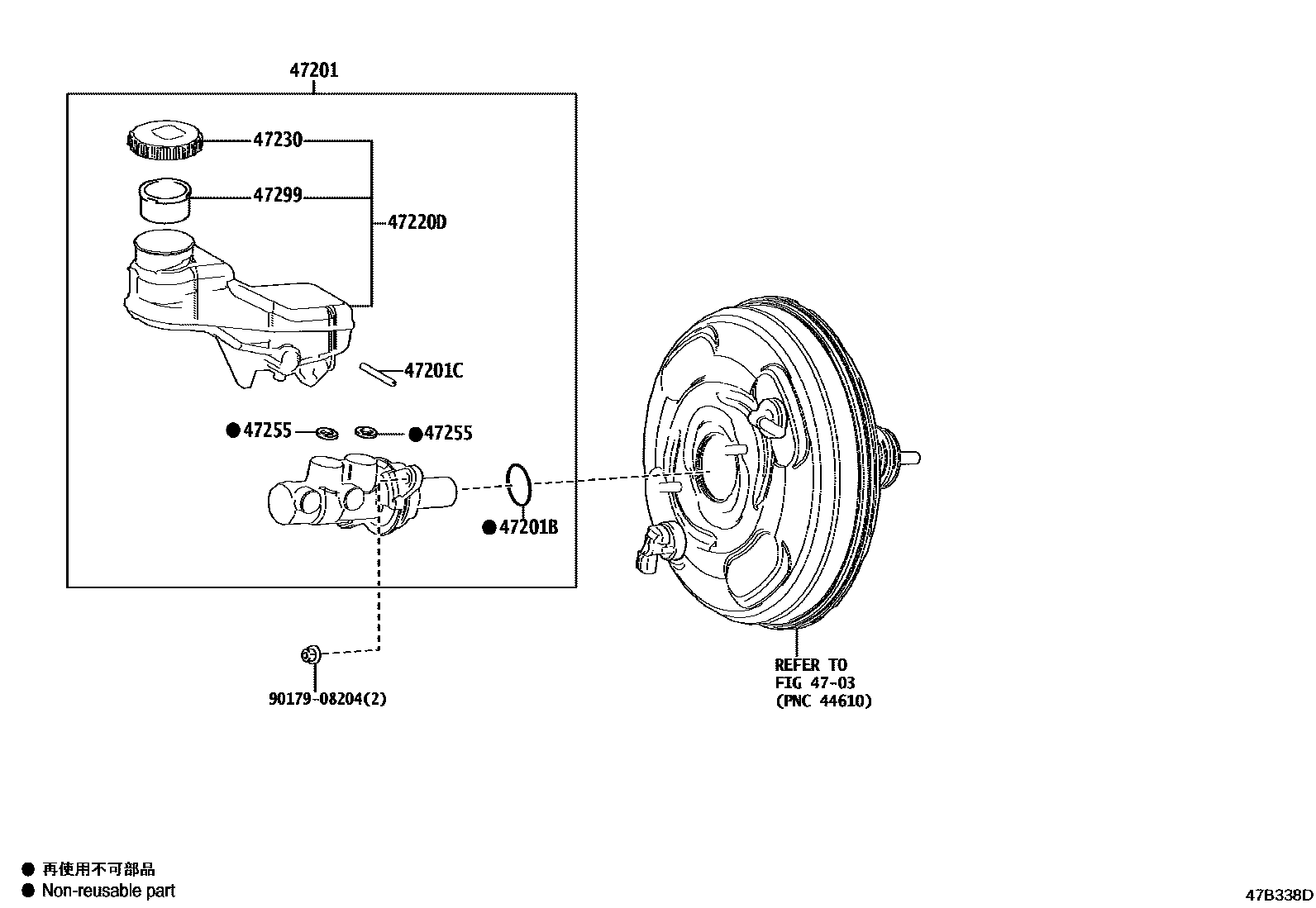

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-42400iAXAA54,MXAA54..RHD;MXAA52..RHD..X..(ARL,GEN);MXAA52..RHD..(G,M)..(ARL,GEN,SA)202310

main47201-42410iMXAA5#..RHD..6F..(ARL,GEN)202008-202111

main47201-42420iMXAA52..G..EUR202210

main47201-42430iMXAA52..RHD..6F..EUR201811-202007

main47201-42440iAXAA52..X..GEN202008-202111

main47201-42450iMXAA5#..LHD..6F..GEN202008-202210

main47201-42460iAXAA54..EUR201811-202004

main47201-42470iMXAA5#..6F..EUR202210

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iMXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAA5#,MXAA54..JPP..(ARL,GCC,GEN,RUS,SA)202210-202310

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAA52..LHD..(G,M)..GEN;MXAA54..JPP..CVT..(M,X);MXAA54..(G,V)..(EUR,GEN,SA);MXAA54..JPP..LHD..6F..(M,X);AXAA54..(G,M,X)..(GCC,GEN,SA);AXAA52,MXAA52..(6F,8FC)..(EUR,GCC,SA)202008-202210

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-42130iAXAL5#..ARL;AXAH5#..RHD..M..GEN;AXAH5#,AXAL5#..RHD..X..EUR202008-202111

main47220-42140iAXAH5#,AXAL5#..LHD..(EUR,GCC,GEN)201811-202007

main47220-42150iAXAA52..RHD;AXAA54..G..ARL;AXAA54..RHD..V..GEN202008-202111

main47220-42160iMXAA52..6F..G..SA201811-201909

main47220-42170iMXAA5#..JPP..LHD..CVT;AXAA5#..LHD..(GCC,GEN)201811-202007

main47220-42180iMXAA5#..6F..RUS202008-202203

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-47090iAXAH52..LHD..(G,M);AXAH52..LHD..X..EUR;AXAH54,AXAL5#..LHD..(G,M,X)202112-202210

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001×2iAXAA52..X..GEN;AXAA54..G..ARL;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAA52,MXAA5#..RHD..(6F,8FC)..(ARL,GEN)202008-202111

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iMXAA5#..6F..G..(GEN,SA)201811-201909

9017908204

main90179-08204

9 parts on this diagram · 6 diagrams in section
