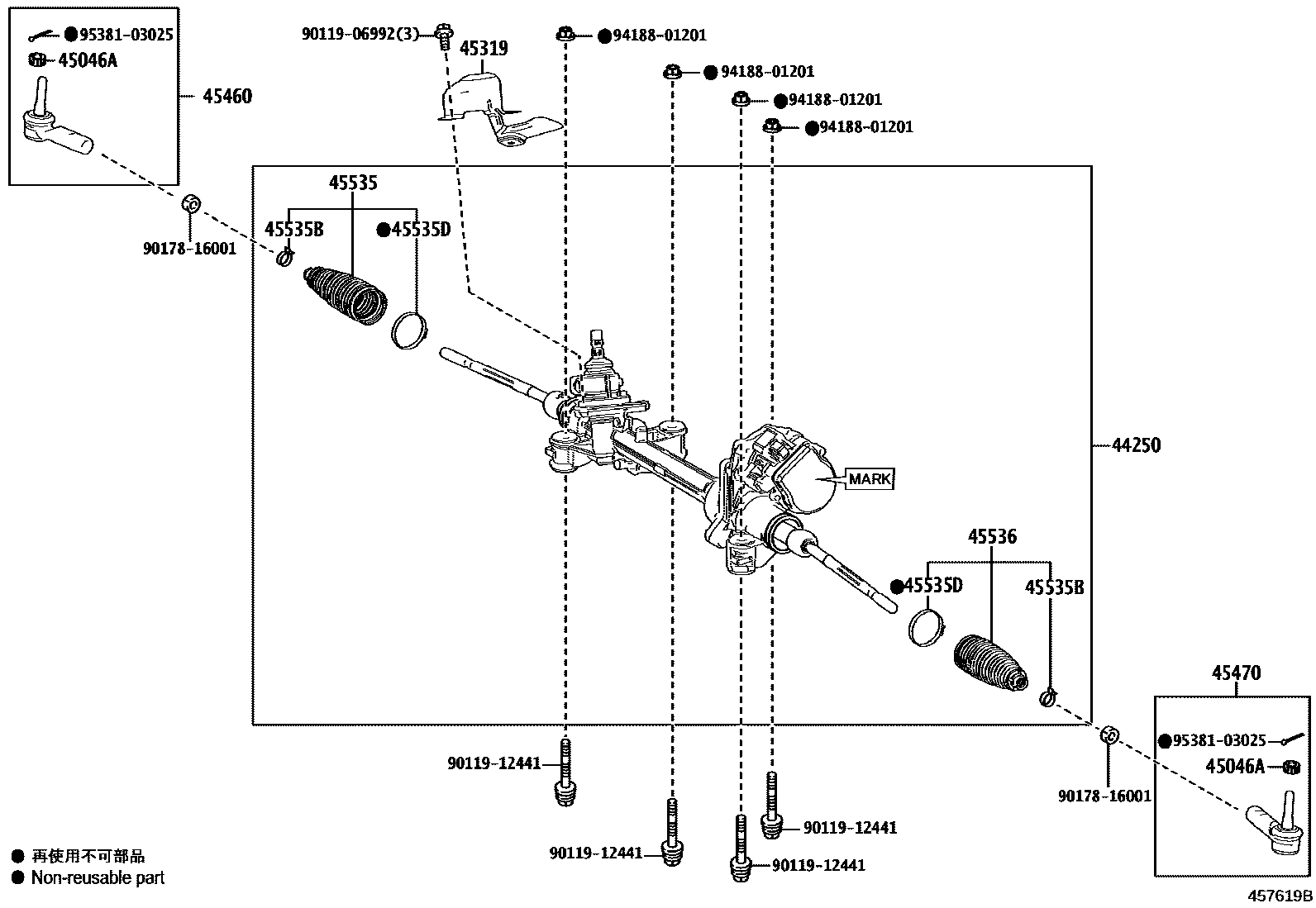

FRONT STEERING GEAR & LINK
44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)
MARK=65
MARK=64
main44250-42251iAXAH5#,AXAL5#..RHD..G..EUR; AXAH5#,AXAL5#..RHD..P..EUR; AXAH54,MXAA54..RHD..V..(GEN,SA); AXAH54..RHD..G..EUR;MXAA52..RHD..G..(GEN,SA);AXAA54,AXAH52,AXAL5#..RHD..G..(EUR,GEN,SA); MXAA52..G..ARL;AXAA54,AXAH54,AXAL54..RHD..V..(ARL,EUR)202210-202310
TIRE & DISC WHEEL-235/55R19,ALL SEASON TIRE,ALUMI,LTD; TIRE & DISC WHEEL-235/55R19,ALUMI,AD; TIRE & DISC WHEEL-235/55R19,ALUMI,HV; TIRE & DISC WHEEL-235/55R19,ALUMI,LTD
main44250-42420iMXAA54..G..GEN;MXAA52..LHD..(GCC,GEN);AXAA5#,AXAH5#,AXAL5#..JPP..LHD;MXAA54..JPP..LHD..(M,V,X)..(GCC,GEN,RUS)202210-202310
main44250-42430iAXAH5#,AXAL5#..LHD..G..EUR; AXAH5#,AXAL5#..LHD..P..EUR; MXAA52..LHD..G;AXAH54..LHD..G..EUR;AXAA5#,AXAH52,AXAL5#..LHD..G..(EUR,GCC); MXAA54..G..GEN;AXAA54..LHD..(G,V)..GEN; MXAA54..JPP..G..RUS; MXAA54..LHD..V;AXAA54,AXAH54,AXAL54..LHD..V..(EUR,GCC)202210-202310
SPARE TIRE-T165/90D18(REINFORCED TEMPORARY),STEEL; TIRE & DISC WHEEL-235/55R19,ALL SEASON TIRE,ALUMI,LTD; TIRE & DISC WHEEL-235/55R19,ALUMI,AD; TIRE & DISC WHEEL-235/55R19,ALUMI,HV; TIRE & DISC WHEEL-235/55R19,ALUMI,LTD
*614; TIRE & DISC WHEEL-235/55R19,ALL SEASON TIRE,ALUMI,LTD,*614; TIRE & DISC WHEEL-235/55R19,ALUMI,HV,*614; TIRE & DISC WHEEL-235/55R19,ALUMI,LTD,*614
*614
*614
main44250-42780iAXAH54..V..SA;AXAH5#..X..ARL;AXAH54..RHD..G..GEN;AXAL5#..RHD..(G,M,P)..EUR;AXAH5#..RHD..(G,M,P)..(ARL,EUR,SA)202112-202210
MARK=71
main44250-42790iAXAH5#,AXAL5#..RHD..G..EUR; AXAH5#,AXAL5#..RHD..P..EUR; AXAH54,AXAL54..RHD..V..(ARL,EUR); AXAH54..V..SA202112-202210
MARK=71; TIRE & DISC WHEEL-235/55R19,ALL SEASON TIRE,ALUMI,LTD,MARK=71; TIRE & DISC WHEEL-235/55R19,SM/CF,ALUMI,HV,MARK=71; TIRE & DISC WHEEL-235/55R19,SM/CF,ALUMI,LTD,MARK=71; TIRE & DISC WHEEL-235/55R19,SUMMER TIRE,ALUMI,AD,MARK=71
MARK=70
main44250-42840iAXAA52..GCC;AXAA52..LHD..(G,M)..GEN;AXAA54,MXAA52..JPP..LHD;MXAA54..JPP..LHD..(M,X);MXAA54..LHD..(G,V)..(EUR,GEN)202112-202210
MARK=70
main44250-42870iAXAA54..V..ARL;MXAA52..G..ARL; MXAA52..6F..SA;MXAA54..RHD..CVT;AXAA54,MXAA52..(ATM,CVT)..(M,X)..ARL;AXAA54,MXAA52..RHD..(ATM,CVT)..(G,M,X)..(EUR,GEN,SA); MXAA52..G..ARL202112-202210
MARK=71; SPARE TIRE-GROUND TIRE(18),MARK=71; SPARE TIRE-T165/80D17(REINFORCED TEMPORARY),STEEL,MARK=71
TIRE & DISC WHEEL-225/55R19,SUMMER TIRE,ALUMI,EMO,MARK=65; TIRE & DISC WHEEL-235/55R19,SUMMER TIRE,ALUMI,LTD,MARK=65
TIRE & DISC WHEEL-225/55R19,SUMMER TIRE,ALUMI,EMO,MARK=64; TIRE & DISC WHEEL-235/55R19,SUMMER TIRE,ALUMI,LTD,MARK=64
TIRE & DISC WHEEL-225/60R18,ALL SEASON TIRE,ALUMI,MARK=64
TIRE & DISC WHEEL-225/60R18,ALL SEASON TIRE,ALUMI
TAIWAN SPEC&SPARE TIRE-T165/90D18(REINFORCED TEMPORARY),STEEL; TIRE & DISC WHEEL-235/55R19,ALL SEASON TIRE,ALUMI,LTD
TIRE & DISC WHEEL-235/55R19,ALL SEASON TIRE,ALUMI,AD; TIRE & DISC WHEEL-235/55R19,ALL SEASON TIRE,ALUMI,LTD
main44250-42220iAXAA5#,MXAA5#..LHD..(ATM,CVT)..(G,V)..GEN; AXAA5#..(G,M)..GCC;MXAA5#..LHD..(G,M)..(EUR,GCC); AXAA54,MXAA54..V..GCC201811-202007
SPARE TIRE-T165/90D18(REINFORCED TEMPORARY),STEEL; TIRE & DISC WHEEL-235/55R19,SM/CF,ALUMI,AD; TIRE & DISC WHEEL-235/55R19,SM/CF,ALUMI,LTD
TIRE & DISC WHEEL-235/55R19,ALL SEASON TIRE,ALUMI,LTD
NEW ZEALAND SPEC
TIRE & DISC WHEEL-235/55R19,SM/CF,ALUMI,LTD,MARK=65; TIRE & DISC WHEEL-235/55R19,SUMMER TIRE,ALUMI,AD,MARK=65
TIRE & DISC WHEEL-235/55R19,ALUMI,GR
TIRE & DISC WHEEL-235/55R19,ALUMI,GR
TIRE & DISC WHEEL-235/55R19,ALL SEASON TIRE,ALUMI,LTD,*614; TIRE & DISC WHEEL-235/55R19,ALUMI,AD,*614; TIRE & DISC WHEEL-235/55R19,ALUMI,HV,*614; TIRE & DISC WHEEL-235/55R19,ALUMI,LTD,*614
TIRE & DISC WHEEL-235/55R19,ALUMI,GR,*614
TIRE & DISC WHEEL-235/55R19,ALUMI,GR,*614
main44250-42810iAXAH5#,AXAL5#..LHD..G..EUR; AXAH5#,AXAL5#..LHD..P..EUR; AXAH54,AXAL54..LHD..V202112-202210
TIRE & DISC WHEEL-235/55R19,ALL SEASON TIRE,ALUMI,LTD,MARK=70; TIRE & DISC WHEEL-235/55R19,SM/CF,ALUMI,HV,MARK=70; TIRE & DISC WHEEL-235/55R19,SM/CF,ALUMI,LTD,MARK=70; TIRE & DISC WHEEL-235/55R19,SUMMER TIRE,ALUMI,AD,MARK=70
TIRE & DISC WHEEL-225/60R18,ALL SEASON TIRE,ALUMI,MARK=70
TIRE & DISC WHEEL-235/55R19,ALL SEASON TIRE,ALUMI,AD,MARK=70; TIRE & DISC WHEEL-235/55R19,ALL SEASON TIRE,ALUMI,LTD,MARK=70
main44250-42850iAXAA5#..G..GCC;MXAA54..G..EUR;MXAA52..JPP..LHD..G; AXAA54..V..GCC;MXAA54..LHD..V..GEN; MXAA54..G..GEN;AXAA5#..LHD..(G,V)..GEN202112-202210
SPARE TIRE-T165/90D18(REINFORCED TEMPORARY),STEEL,MARK=70; TIRE & DISC WHEEL-235/55R19,SM/CF,ALUMI,LTD,MARK=70; TIRE & DISC WHEEL-235/55R19,SUMMER TIRE,ALUMI,AD,MARK=70
NEW ZEALAND SPEC,MARK=71
main44250-42880iAXAA54,MXAA52..RHD..G..(GEN,SA); AXAA54..V..ARL;MXAA52..G..ARL; MXAA54..RHD..V202112-202210
MARK=71; TIRE & DISC WHEEL-235/55R19,SM/CF,ALUMI,LTD,MARK=71; TIRE & DISC WHEEL-235/55R19,SUMMER TIRE,ALUMI,AD,MARK=71
45046ANUT, CASTLE(FOR TIE ROD END)
main90171-12016×2iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAL52..(G,M,P)..EUR;AXAL54..(M,P,V)..EUR;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAH54..LHD..(M,P)..GEN;MXAA54..JPP..CVT..(M,X);AXAH5#..X..(ARL,GCC,GEN);AXAH52..(G,M,P)..(ARL,EUR);AXAH5#,AXAL5#..LHD..X..EUR;MXAA54..(G,V)..(EUR,GEN,SA);MXAA54..JPP..LHD..6F..(M,X);AXAA54..(G,M,X)..(GCC,GEN,SA);AXAA52,AXAH52..LHD..(G,M,P)..GEN;AXAH54..(M,P,V)..(ARL,EUR,GCC,SA);AXAA52,MXAA52..(6F,8FC)..(EUR,GCC,SA)202008-202210
45319INSULATOR, STEERING GEAR HEAT
main45319-42020iMXAA54..6F..G..EUR;MXAA54..JPP..CVT..G;AXAA54..LHD..(GCC,GEN);MXAA54..JPP..LHD..(M,V,X);AXAA52,AXAH5#,AXAL5#,MXAA52..LHD..(EUR,GCC,GEN)201811-202007
main45319-42030iAXAH5#..X..ARL;MXAA52..6F..SA;MXAA5#..RHD..CVT;AXAH54..RHD..G..GEN;AXAA54..(M,V,X)..ARL;AXAL5#..RHD..(G,M,P,V)..EUR;AXAA54..RHD..(G,M,X)..(GEN,SA);AXAH5#..RHD..(G,M,P,V)..(ARL,EUR,SA)202008-202210
45460ROD ASSY, TIE, RH
45470ROD ASSY, TIE, LH
45535BOOT, STEERING RACK, NO.1
main45535-29025iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;MXAA54..JPP..CVT..(M,X);AXAH5#..X..(ARL,GCC,GEN);AXAH5#,AXAL5#..LHD..X..EUR;MXAA54..(G,V)..(EUR,GEN,SA);MXAA54..JPP..LHD..6F..(M,X);AXAA54..(G,M,X)..(GCC,GEN,SA);AXAA52,AXAH52..LHD..(G,M,P)..GEN;AXAH5#..(G,M,P,V)..(ARL,EUR,GCC,SA);AXAA52,MXAA52..(6F,8FC)..(EUR,GCC,SA)202008-202210
45535BCLIP(FOR STEERING RACK BOOT)
main90467-19021×2iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;MXAA54..JPP..CVT..(M,X);AXAH5#..X..(ARL,GCC,GEN);AXAH5#,AXAL5#..LHD..X..EUR;MXAA54..(G,V)..(EUR,GEN,SA);MXAA54..JPP..LHD..6F..(M,X);AXAA54..(G,M,X)..(GCC,GEN,SA);AXAA52,AXAH52..LHD..(G,M,P)..GEN;AXAH5#..(G,M,P,V)..(ARL,EUR,GCC,SA);AXAA52,MXAA52..(6F,8FC)..(EUR,GCC,SA)202008-202210
45535DCLAMP(FOR STEERING RACK BOOT NO.1)
45536BOOT, STEERING RACK, NO.2
9011906992
main90119-06992
9011912441
main90119-12441
9017816001
main90178-16001
9418801201
main94188-01201
9538103025
main95381-03025
14 parts on this diagram · 2 diagrams in section
