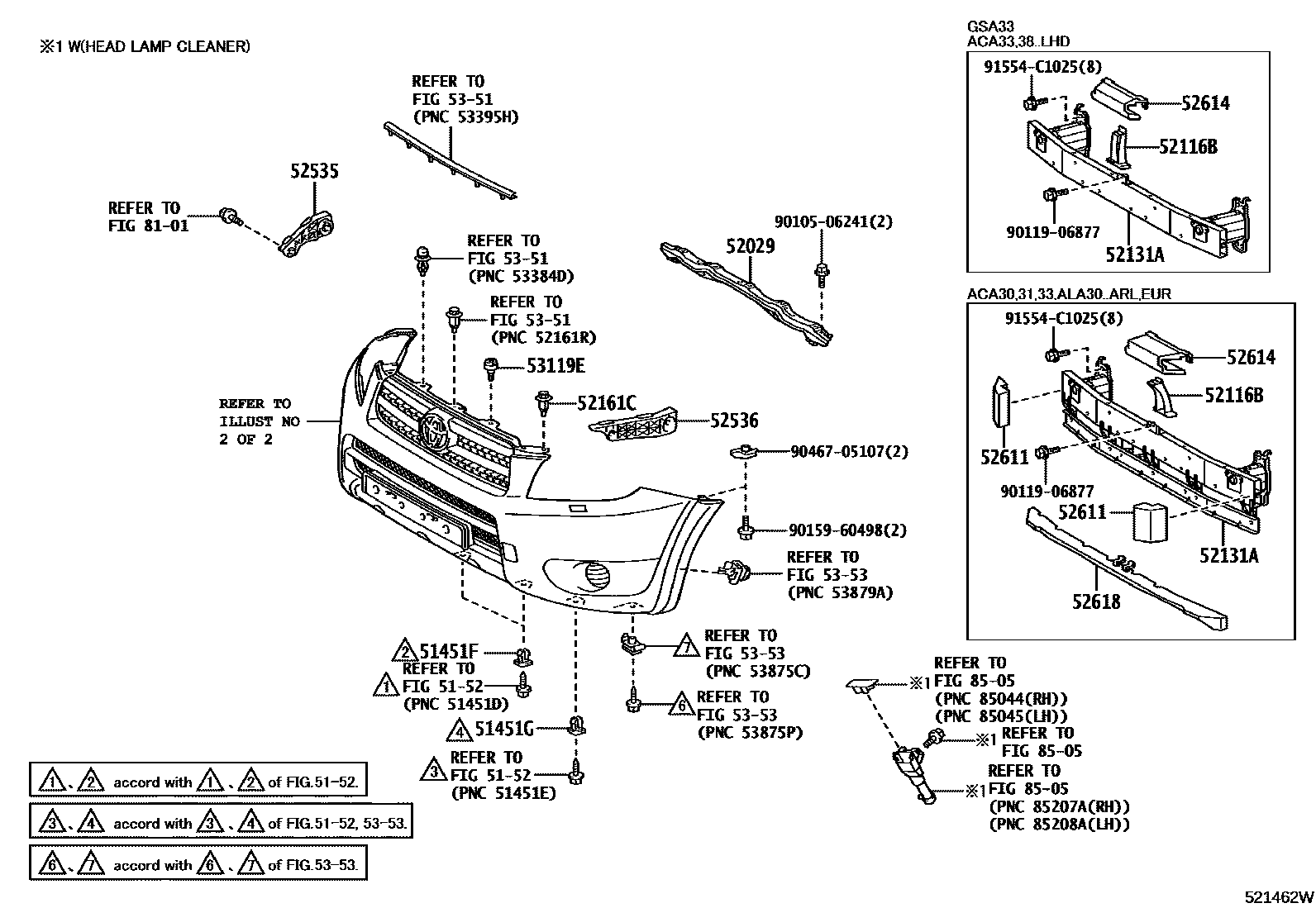

FRONT BUMPER & BUMPER STAY

0001 1 0003 1 0005 1CHINA SPEC 0006 1CHINA SPEC 0007 1 0009 1 0011 1 0012 1 0013 1X-SPORT PACKAGE OR SPECIAL ED0015 1X-SPORT PACKAGE OR SPECIAL ED0017 1 0018 1

51451FGROMMET, NO.1

main90189-06193×4iACA3#,ALA30,GSA33200511-200812

51451GGROMMET, NO.2

main90189-06193×2iACA30,33,38,ALA3#,GSA33,ZSA3#200808-201212

5152SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-52

52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER

main52029-42060iALA3#,ZSA3#..BTYPE201002-201212

main52029-42070iACA30,31,ALA30200511-200812

main52029-42090iACA30,33,38,ALA3#,GSA33,ZSA3#..ATYPE200808-201212

52116BRETAINER, FRONT BUMPER

main52116-42010iACA30,31,33,ALA30..ARL,EUR200511-200812

main52116-42020iGSA33;ACA33,38..LHD200511-200812

52131AREINFORCEMENT, FRONT BUMPER

main52021-42050iACA30,31,33,ALA30..ARL,EUR200511-200709

main52021-42051iACA38,ALA35..ARL,EUR;ALA30,ZSA3#..(6F,CVFC)..BTYPE200808-201212

main52021-42060iGSA33;ACA33,38..LHD200511-200709

main52021-42061iGSA33;ACA33,38..LHD200710-200803

main52021-42062iGSA33;ACA33,38..GCC,GEN200808-201212

main52021-42100iALA30..6FC200903-201212

52161CPIECE, FRONT BUMPER

main52161-16010×2iACA3#,ALA30,GSA33200511-200812

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-42020iACA3#,ALA30,GSA33200511-200806

main52535-42021iACA3#,ALA30,GSA33200807-200812

main52535-42030iALA3#,ZSA3#..BTYPE201002-201212

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-42020iACA3#,ALA30,GSA33200511-200806

main52536-42021iACA3#,ALA30,GSA33200807-200812

main52536-42030iALA3#,ZSA3#..BTYPE201002-201212

52611ABSORBER, FRONT BUMPER ENERGY

main52611-42010×2iACA30,31,33,ALA30..ARL,EUR200511-200812

52614ABSORBER, FRONT BUMPER ENERGY, NO.2

main52614-42010iACA30,31,33,ALA30..ARL,EUR200511-200812

main52614-42020iGSA33;ACA33,38..LHD200511-200812

main52614-42040iACA30,33,38,ALA3#,ZSA3#..(ARL,EUR)..ATYPE200808-201212

main52614-42050iGSA33;ACA33,38..GCC,GEN200808-201212

main52614-42060iALA3#,ZSA3#..BTYPE201002-201212

52618ABSORBER, FRONT BUMPER, LOWER

main52618-42010iACA30,31,33,ALA30..ARL,EUR200511-200812

main52618-42030iACA30,33,38,ALA3#,ZSA3#..(ARL,EUR)..ATYPE200808-201212

main52618-42040iALA3#,ZSA3#..BTYPE201002-201212

53119EPROTECTOR, RADIATOR GRILLE

main53119-20120×2iACA3#,ALA30200511-200606

main53119-42020×2iACA3#,ALA30,GSA33200607-200812

5351RADIATOR GRILLE

→ Go to FIG 53-51

5353HOOD & FRONT FENDER

→ Go to FIG 53-53

8101HEADLAMP

→ Go to FIG 81-01

8505HEADLAMP CLEANER

→ Go to FIG 85-05

9010506241

main90105-06241

9011906877

main90119-06877

9015960498

main90159-60498

9046705107

main90467-05107

91554C1025

main91554-C1025

22 parts on this diagram · 12 diagrams in section
