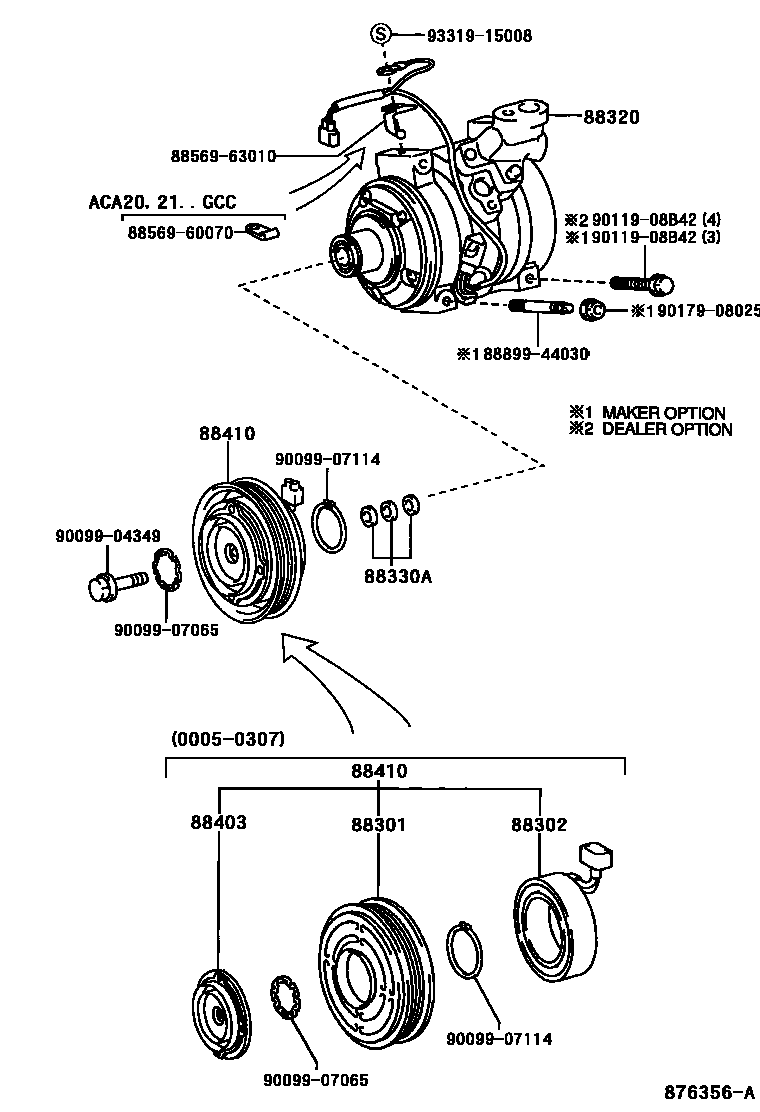

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-32070iCLA2#200105-200307

main88412-32120iZCA2#200005-200307

main88412-42010iACA2#200005-200307

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-44010iACA2#,CLA2#,ZCA2#200005-200307

88320COMPRESSOR ASSY, COOLER

main88320-42080iACA2#..ARL,EUR,GEN200005-200511

main88320-42090iACA2#..GCC200008-200511

main88320-42100iZCA2#200005-200511

main88320-42110iCLA2#200105-200511

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iACA2#,CLA2#,ZCA2#200005-200511

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-28020iZCA2#200005-200307

main88403-32010iACA2#,CLA2#200005-200307

88410CLUTCH ASSY, MAGNET

main88410-42040iACA2#200005-200307

main88410-42050iZCA2#200005-200307

main88410-42060iCLA2#200307-200511

main88410-42070iZCA2#200307-200511

main88410-42080iACA2#200307-200511

main88410-44060iCLA2#200105-200307

8856960070CLAMP (FOR COOLER RELAY)

main88569-60070

8856963010CLAMP (FOR COOLER RELAY)

main88569-63010

8889944030COVER, EVAPORATOR

main88899-44030

9009904349

main90099-04349

9009907065

main90099-07065

9009907114

main90099-07114

9011908B42

main90119-08B42

9017908025

main90179-08025

9331915008

main93319-15008

15 parts on this diagram · 4 diagrams in section
