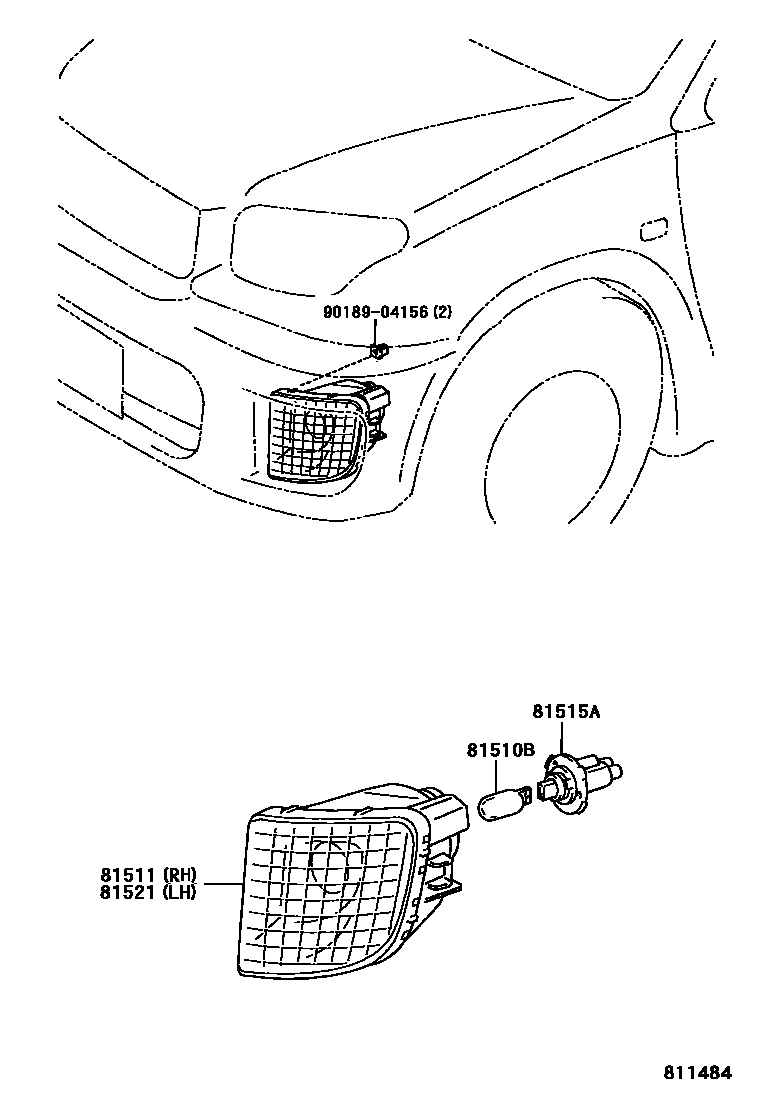

FRONT TURN SIGNAL LAMP

0001 1W/O(FOG LAMP) 0002 1W(FOG LAMP)

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-11042×2iACA2#,ZCA2#200005-200104

12V 21W,W(FOG LAMP)

main90981-11047×2iACA2#,CLA2#,ZCA2#200104-200307

12V 21W,W(FOG LAMP)

main90981-15011×2iACA20,21,CLA2#,ZCA2#200307

12V 21W,AMBER

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-42050iACA20,21,CLA2#,ZCA2#200307

main81511-42060iACA20,21,CLA2#,ZCA2#200307

W(FOG LAMP)

81515APLUG ASSY, FRONT TURN SIGNAL LAMP

main81515-42050×2iACA2#,CLA2#,ZCA2#200005-200307

main90075-99080×2iACA2#,CLA2#,ZCA2#200005-200307

W(FOG LAMP)

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-42050iACA2#,CLA2#,ZCA2#200005-200307

main81521-42060iACA20,21,CLA2#,ZCA2#200307

W(FOG LAMP)

9018904156

main90189-04156

5 parts on this diagram · 2 diagrams in section
