5152SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-52

52119ACOVER, FRONT BUMPER

main52119-42903i200005-200307

main52119-42905i200005-200208

W(OVER FENDER)

main52119-42907i200005-200307

W(HEADLAMP CLEANER)

main52119-42908i200005-200208

W(HEADLAMP CLEANER & OVER FENDER)

main52119-42912i200307-200511

UNPAINTED

main52119-42913i200307-200511

TYPE A:REFER TO ILLUSTRATION & W(PAINTED BUMPER) & W/O(HEADLAMP CLEANER & OVER FENDER)

main52119-42914i200307-200511

W(OVER FENDER & PAINTED BUMPER)

main52119-42919i200307-200511

TYPE B:REFER TO ILLUSTRATION & W(OVER FENDE & PAINTED BUMPER) & W/O(HEADLAMP CLEANER)

main52119-42920i200307-200511

TYPE A:REFER TO ILLUSTRATION & W(HEADLAMP CLEANER & OVER FENDER & PAINTED BUMPER)

main52119-42921i200307-200511

TYPE A:REFER TO ILLUSTRATION & W(HEADLAMP CLEANER & PAINTED BUMPER) & W/O(OVER FENDER)

main52119-42922i200307-200511

TYPE B:REFER TO ILLUSTRATION & W/O(HEADLAMP CLEANER & OVER FENDER)

52131AREINFORCEMENT, FRONT BUMPER

main52021-42040i200005-200007

main52021-42041i200007-200307

52145ASTAY, FRONT BUMPER, NO.2 RH

main52145-42020i200005-200307

main52145-42030i200307-200511

52146ASTAY, FRONT BUMPER, NO.2 LH

main52146-42020i200005-200307

main52146-42030i200307-200511

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-42010i200005-200307

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-42010i200005-200307

53112EGRILLE, RADIATOR, LOWER NO.1

main53112-42020i200005-200307

main53112-42030i200307

NO.2

main53113-42020i200307

NO.1

53127AGRILLE, RADIATOR, LOWER RH

main53127-42030i200005-200307

53128AGRILLE, RADIATOR, LOWER LH

main53128-42030i200005-200307

5353HOOD & FRONT FENDER

→ Go to FIG 53-53

7652SPOILER & SIDE MUDGUARD

→ Go to FIG 76-52

8102FOG LAMP

→ Go to FIG 81-02

8103FRONT TURN SIGNAL LAMP

→ Go to FIG 81-03

9011906909

main90119-06909

9015960431

main90159-60431

9017906127

main90179-06127

9018905015

main90189-05015

9162140614

main91621-40614

91635B0825

main91635-B0825

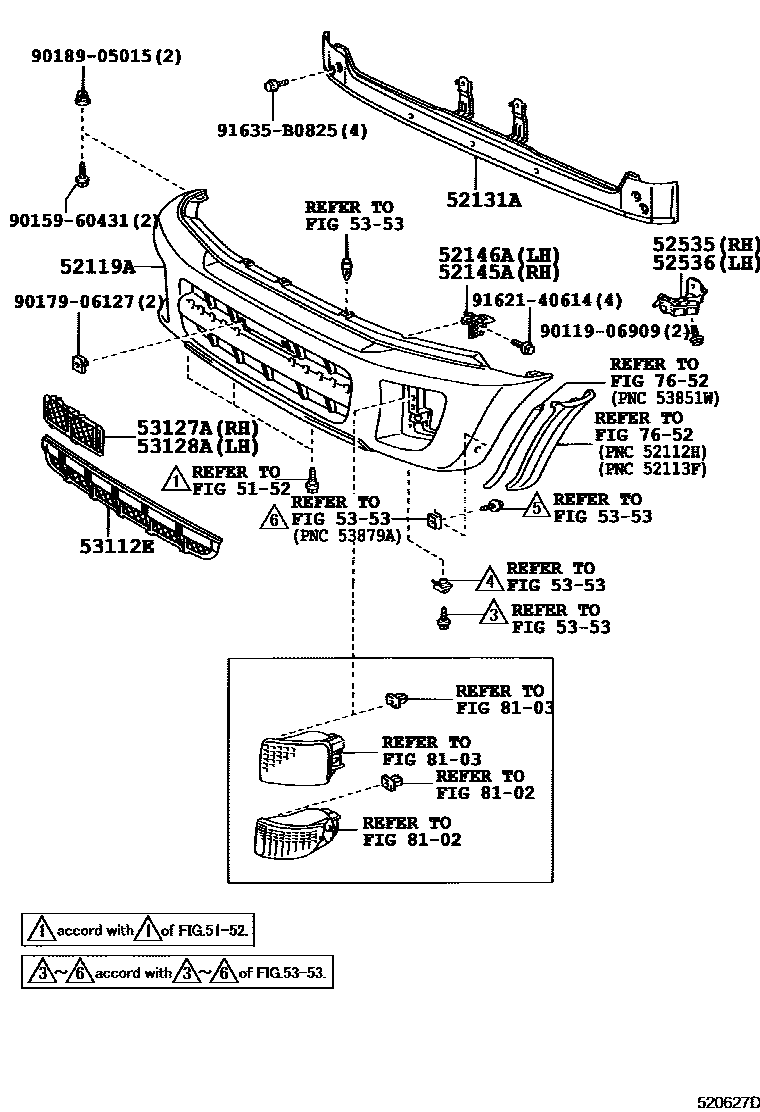

FRONT BUMPER & BUMPER STAY
