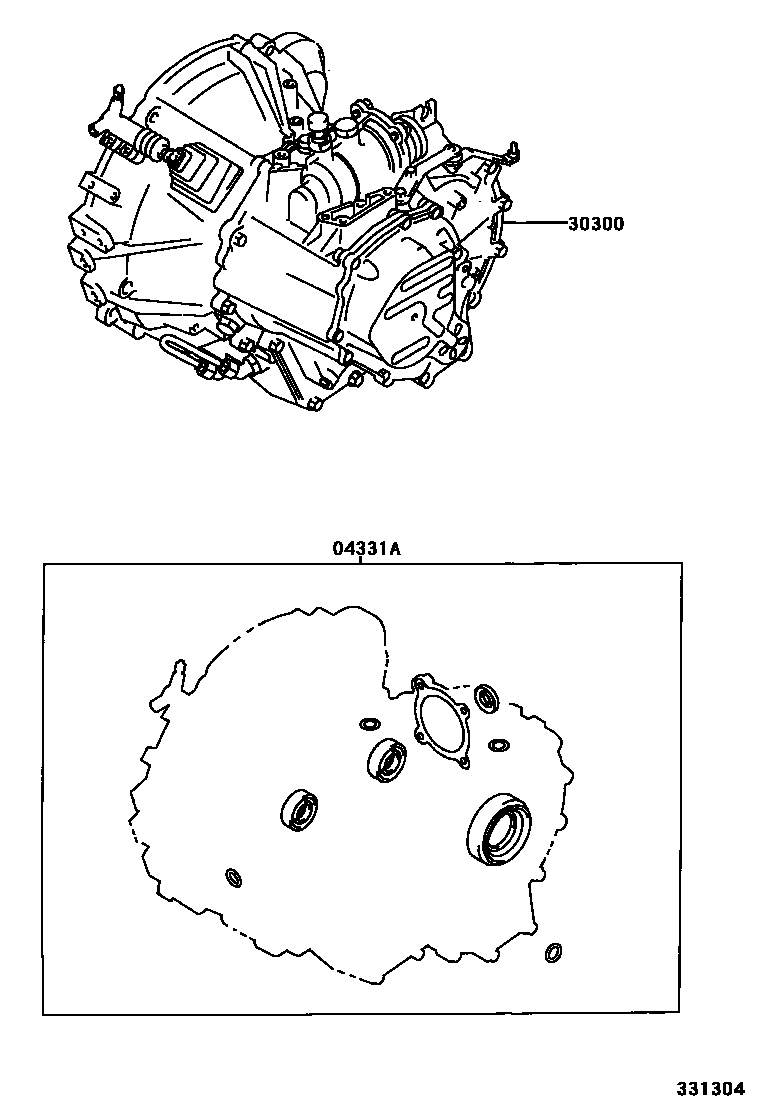

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1E352F,E353F,E359F 0002 1E352F,E353F,E359F 0003 1C54

04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)

main04331-12181iZCA2#200410-200510

main04331-12580iZCA2#200511

main04331-1E040iZCA2#200407-200410

main04331-20100iZCA2#200307-200407

main04331-42010iACA2#..MTM200005-200307

main04331-42040iCLA2#200105-200307

main04331-42060iACA20,21..MTM200407-200503

main04331-42061iACA22,23..MTM200511

main04331-42070iCLA2#200407-200511

main04331-42071iCLA2#200511

main04331-42080iACA20,21..MTM200503-200511

main04331-42081iACA20,21..MTM200511

30300TRANSAXLE ASSY, MANUAL

main30300-42100iACA2#..MTM200005-200105

main30300-42101iACA20,21..MTM200307-200503

E352F

main30300-42110iZCA2#200005-200104

main30300-42111iZCA2#200307-200511

C54

main30300-42120iCLA2#200307-200503

E353F

main30300-42130iACA20,21..MTM200503-200511

E352F

main30300-42140iCLA2#200503-200511

E353F

main30300-42150iACA22,23..MTM200307-200503

E359F

main30300-42151iACA22,23..MTM200503-200511

E359F

2 parts on this diagram · 3 diagrams in section
