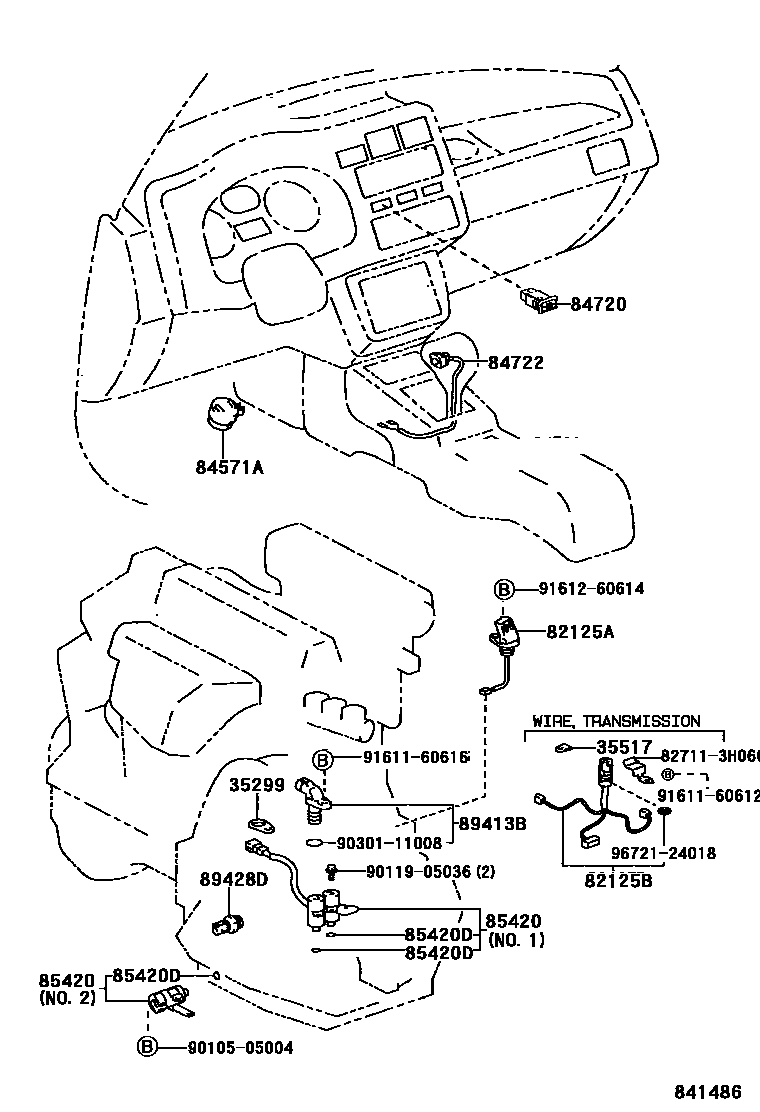

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

35299SPACER, TRANSMISSION REVOLUTION SENSOR

main35299-32010iSXA1#..ATM199406

35517PLATE, TRANSMISSION WIRE LOCK

main35517-32010iSXA1#..ATM199504

82125AWIRE, TRANSMISSION

main82125-20210iSXA1#..ATM199405

82125BWIRE, TRANSMISSION

main82125-42010iSXA1#..ATM199404

84571ASWITCH, KICK DOWN

main84571-24010iSXA1#..LHD..ATM..EUR199404

84720SWITCH ASSY, PATTERN SELECT

main84720-42020iSXA1#..ATM199404

84722SWITCH, TRANSMISSION CONTROL

main84722-12050-C0iSXA1#..RHD..ATM199404-199709

BLACK,TRIM1#

main84722-12060-C0iSXA11..ATM..GEN; SXA11..RHD..ATM..(ARL,EUR)199808

BLACK,TRIM1#,10,12; BLACK,TRIM10,12

main84722-12070-C0iSXA1#..LHD..ATM199404-199608

BLACK,TRIM1#

main84722-42040-C0iSXA11..LHD..ATM199808

BLACK,TRIM1#,10,12

85420SOLENOID ASSY, TRANSMISSION

main85420-32102iSXA1#..ATM199404

NO.1

main85420-32111iSXA1#..ATM199701

NO.2

main85420-32120iSXA1#..ATM199404-199701

NO.2

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004×3iSXA1#..ATM199404

89413BSENSOR, TRANSMISSION REVOLUTION

main89413-32010iSXA1#..ATM199404

89428DSWITCH, TEMPERATURE, NO.2

main89428-12140iSXA1#..ATM199404

827113H060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3H060

9010505004

main90105-05004

9011905036

main90119-05036

9030111008

main90301-11008

9161160612

main91611-60612

9161160616

main91611-60616

9161260614

main91612-60614

9672124018

main96721-24018

19 parts on this diagram · 1 diagram in section
