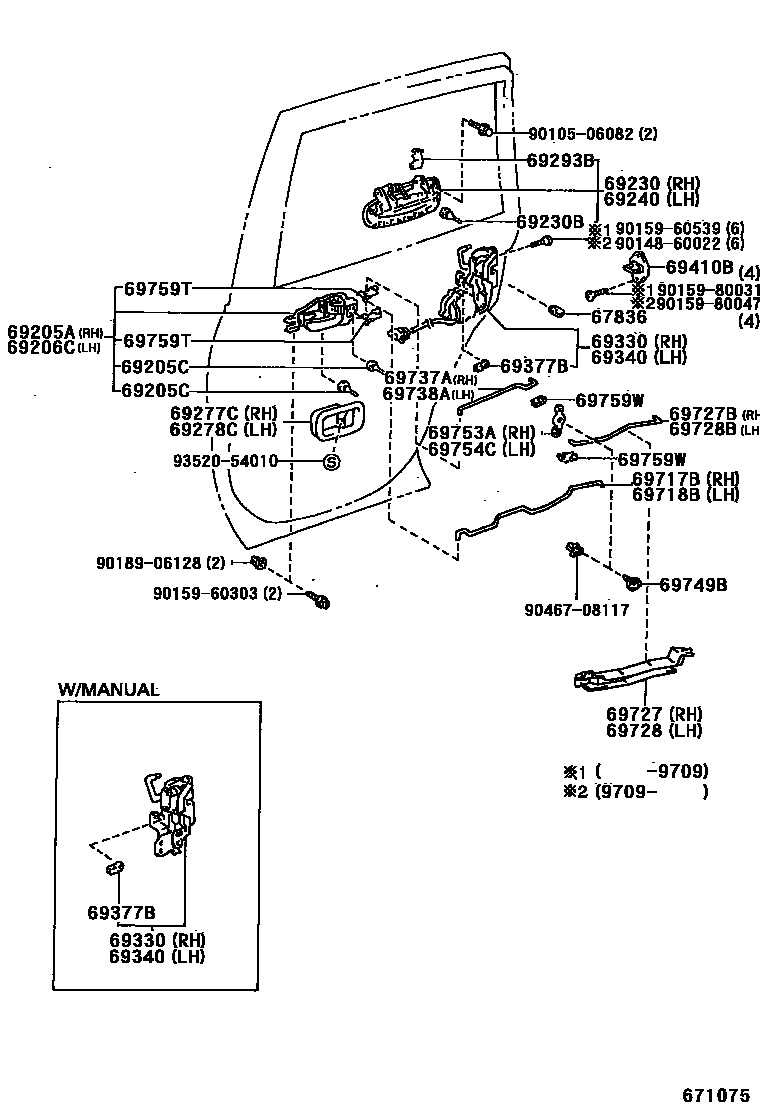

REAR DOOR LOCK & HANDLE

67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH

main67836-42010×2iSXA11199504

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-42010-B0iSXA11199504-199709

BLUISH GRAY,TRIM1#

main69205-42010-B1iSXA11199709-199808

SHADOW GRAY,TRIM10,12

69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)

main90541-04018×2iSXA11199504

D=8.5

main90541-04020×2iSXA11199504

D=12.0

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-42010-B0iSXA11199504-199709

BLUISH GRAY,TRIM1#

main69206-42010-B1iSXA11199709-199808

SHADOW GRAY,TRIM10,12

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-12140iSXA11199504-199709

main69230-42010iSXA11199709-200008

main69230-42020-A1iSXA11..ARL,EUR199709-200005

WHITE,K59 ,056

main69230-42020-A2iSXA11..ARL199804-199805

WORLD CUP CELEBRATION MODEL,WHITE PEARL MICA,K18

main69230-42020-B0iSXA11..ARL,EUR199709-199808

SILVER ME,K61 ,199

main69230-42020-B1iSXA11..ARL,EUR199808-200005

SILVER GR.SF.,K98 ,1B9

main69230-42020-C0iSXA11..ARL,EUR199709-199808

BLACK,K63 ,202

main69230-42020-D1iSXA11..ARL,EUR199709-200005

RED,K65 ,3L5

main69230-42020-E0iSXA11..ARL,EUR199709-199808

LT.BROWN ME,K66 ,4J6

main69230-42020-G0iSXA11..ARL,EUR199709-199808

DK.GREEN M.M.,K68 ,6P3

main69230-42020-G1iSXA11..ARL,EUR199709-200005

GREEN ME.OP.,K69 ,6Q8

main69230-42020-J1iSXA11..ARL199804-199805

WORLD CUP CELEBRATION MODEL,BLUE MICA M.,KA4

69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)

main90541-04014×4iSXA11199504

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-12140iSXA11199504-199709

main69240-42010iSXA11199709-200008

main69240-42020-A1iSXA11..ARL,EUR199709-200005

WHITE,K59 ,056

main69240-42020-A2iSXA11..ARL199804-199805

WORLD CUP CELEBRATION MODEL,WHITE PEARL MICA,K18

main69240-42020-B0iSXA11..ARL,EUR199709-199808

SILVER ME,K61 ,199

main69240-42020-B1iSXA11..ARL,EUR199808-200005

SILVER GR.SF.,K98 ,1B9

main69240-42020-C0iSXA11..ARL,EUR199808-200005

BLACK,K99 ,202

main69240-42020-D1iSXA11..ARL,EUR199709-200005

RED,K65 ,3L5

main69240-42020-E0iSXA11..ARL,EUR199808-200005

LT.BROWN ME,KA1 ,4J6

main69240-42020-G0iSXA11..ARL,EUR199709-199808

DK.GREEN M.M.,K68 ,6P3

main69240-42020-G1iSXA11..ARL,EUR199709-200005

GREEN ME.OP.,K69 ,6Q8

main69240-42020-J1iSXA11..ARL199804-199805

WORLD CUP CELEBRATION MODEL,BLUE MICA M.,KA4

69277CBEZEL, REAR DOOR INSIDE HANDLE, RH

main69277-22070-B0iSXA11199504-199709

BLUISH GRAY,TRIM1#

main69277-22070-B1iSXA11199709-199808

SHADOW GRAY,TRIM10,12

69278CBEZEL, REAR DOOR INSIDE HANDLE, LH

main69278-22030-B0iSXA11199504-199709

BLUISH GRAY,TRIM1#

main69278-22030-B1iSXA11199709-199808

SHADOW GRAY,TRIM10,12

69293BSNAP, REAR DOOR OUTSIDE HANDLE

main69293-12030iSXA11199504

RH

main69293-12040iSXA11199504

LH

69330LOCK ASSY, REAR DOOR, RH

main69050-42010iSXA11..ARL; SXA11..EUR,GEN199504-199510

W(POWER DOOR LOCK)

main69050-42011iSXA11199510

W(POWER DOOR LOCK)

main69330-42010iSXA11..EUR,GEN199504-199510

main69330-42011iSXA11..EUR,GCC,GEN199510

69340LOCK ASSY, REAR DOOR, LH

main69060-42010iSXA11..ARL; SXA11..EUR,GEN199504-199510

W(POWER DOOR LOCK)

main69060-42011iSXA11199510

W(POWER DOOR LOCK)

main69340-42010iSXA11..EUR,GEN199504-199510

main69340-42011iSXA11..EUR,GCC,GEN199510

69377BSNAP, REAR DOOR LOCK CONTROL ROD

main69759-20040×2iSXA11199504

RH-YELLOW

main69759-20050×2iSXA11199504

LH-BROWN

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-20070×2iSXA11199504-199709

main69410-87001×2iSXA11199709

69717BLINK, REAR DOOR LOCK REMOTE CONTROL, RH

main69713-42010iSXA11199504

69718BLINK, REAR DOOR LOCK REMOTE CONTROL, LH

main69714-42010iSXA11199504

69727PROTECTOR, REAR DOOR INSIDE LOCKING LINK, RH

main69727-42010iSXA11199504

69727BLINK, REAR DOOR INSIDE LOCKING, NO.2 RH

main69727-42020iSXA11199504

69728PROTECTOR, REAR DOOR INSIDE LOCKING LINK, LH

main69728-42010iSXA11199504

69728BLINK, REAR DOOR INSIDE LOCKING, NO.2 LH

main69728-42020iSXA11199504

69737ALINK, REAR DOOR INSIDE LOCKING , RH

main69737-42010iSXA11199504

69738ALINK, REAR DOOR INSIDE LOCKING , LH

main69738-42010iSXA11199504

69749BCLAMP, REAR DOOR LOCK LINK

main69749-32030×2iSXA11199504

69753ABELLCRANK, DOOR LOCK CONTROL

main69753-20060iSXA11199504

69754CBELLCRANK, DOOR LOCK CONTROL, LH

main69753-20060iSXA11199504

69759TSNAP, REAR DOOR INSIDE HANDLE

main69759-14050×2iSXA11199504

LH-PINK

main69759-24070×2iSXA11199504

RH-YELLOW

69759WSNAP, REAR DOOR LOCK CONTROL LINK

main69759-24030×4iSXA11199504

9010506082

main90105-06082

9014860022

main90148-60022

9015960303

main90159-60303

9015960539

main90159-60539

9015980031

main90159-80031

9015980047

main90159-80047

9018906128

main90189-06128

9046708117

main90467-08117

9352054010

main93520-54010

36 parts on this diagram · 1 diagram in section
