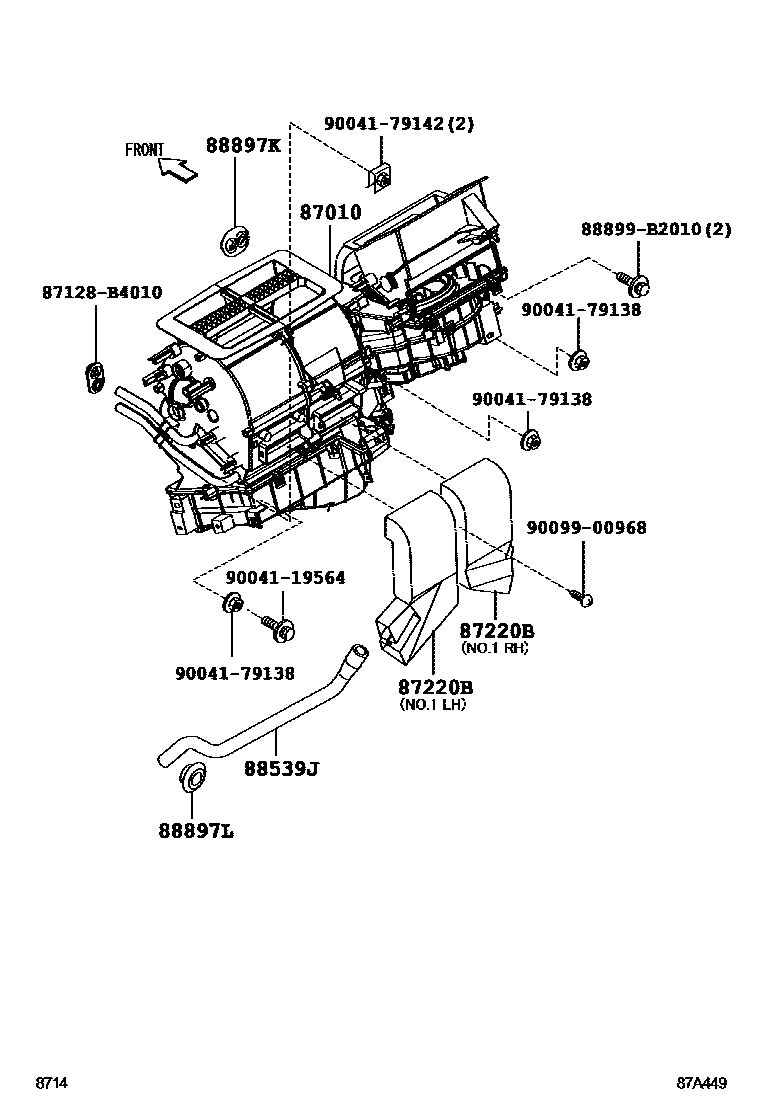

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1

87010UNIT ASSY, AIR CONDITIONER

main87010-B4031iJ200200811-200911

main87010-B4041iJ200,210201605

TROPIC SPEC.-HOT AREA SPEC

87220BDUCT ASSY, AIR

main87220-B4040iJ200200811-200911

NO.1 RH

main87230-B4020iJ200,210201605

NO.1 LH

88539JHOSE, DRAIN COOLER

main88539-B4020iJ200200811-200911

88897KGROMMET, (FOR COOLER PIPE)

main88897-B4050iJ200200811-200911

88897LGROMMET (FOR DRAIN HOSE)

main88897-87210iJ200200811-200911

87128B4010GROMMET, HEATER

main87128-B4010

88899B2010COVER, EVAPORATOR

main88899-B2010

9004119564

main90041-19564

9004179138

main90041-79138

9004179142

main90041-79142

9009900968

main90099-00968

11 parts on this diagram · 3 diagrams in section
