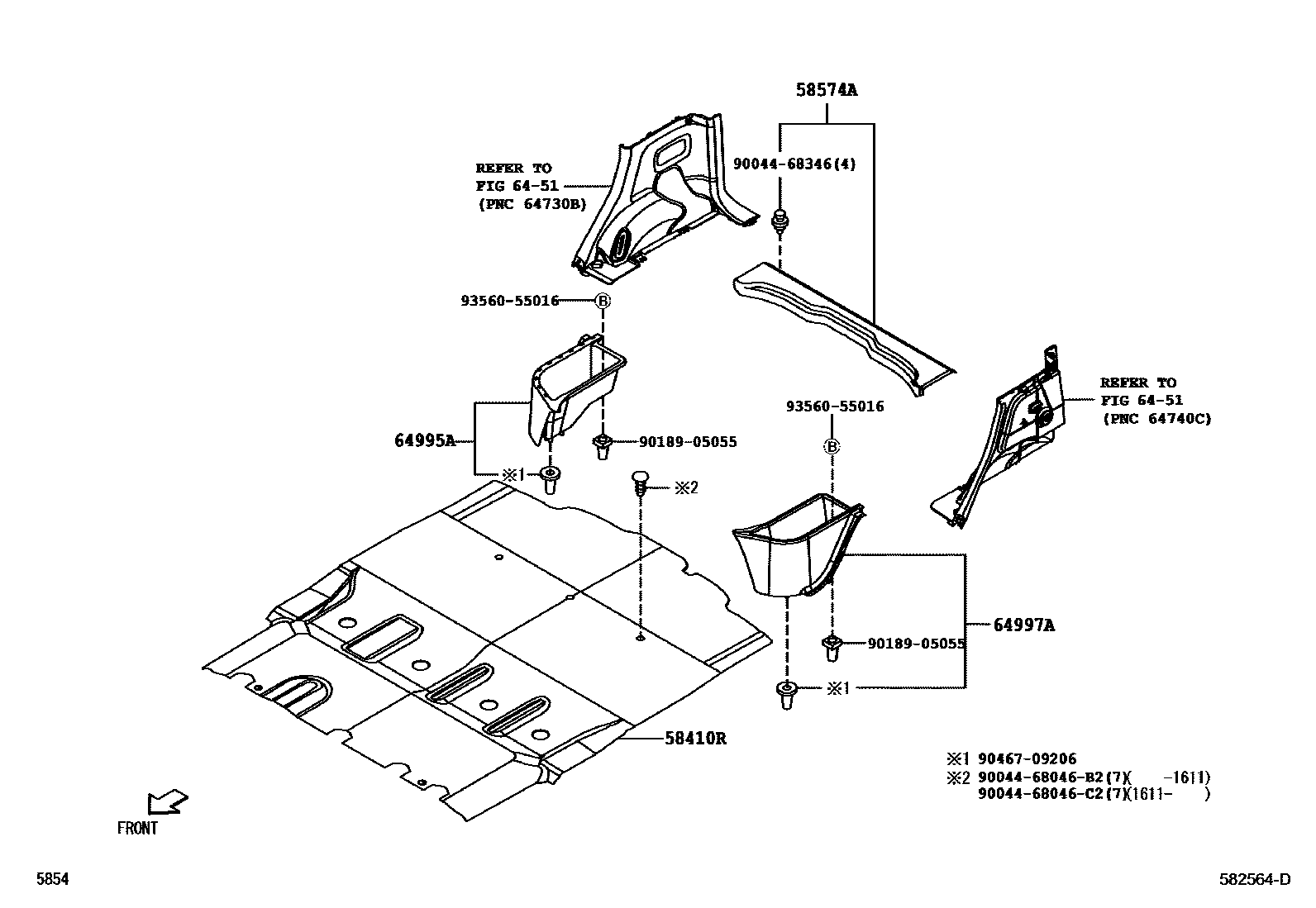

FLOOR MAT & SILENCER PAD

0001 1 0003 1

58410RBOARD ASSY, DECK

main58410-B4010-B0iJ200,210200811

GRAY,TRIM1#

58574APLATE, REAR FLOOR MAT SUPPORT, REAR

main64716-B4010-B0iJ200,210200811

DK.GRAY,TRIM1#

6451INSIDE TRIM BOARD

→ Go to FIG 64-51

64995ABOX, DECK FLOOR, RH

main64995-B4010-B0iJ200,210200811

DK.GRAY,TRIM1#

64997ABOX, DECK FLOOR, LH

main64997-B4010-B0iJ200,210200811

DK.GRAY,TRIM1#

9004468046B2

main90044-68046B2

9004468046C2

main90044-68046C2

9004468346

main90044-68346

9018905055

main90189-05055

9046709206

main90467-09206

9356055016

main93560-55016

11 parts on this diagram · 2 diagrams in section
