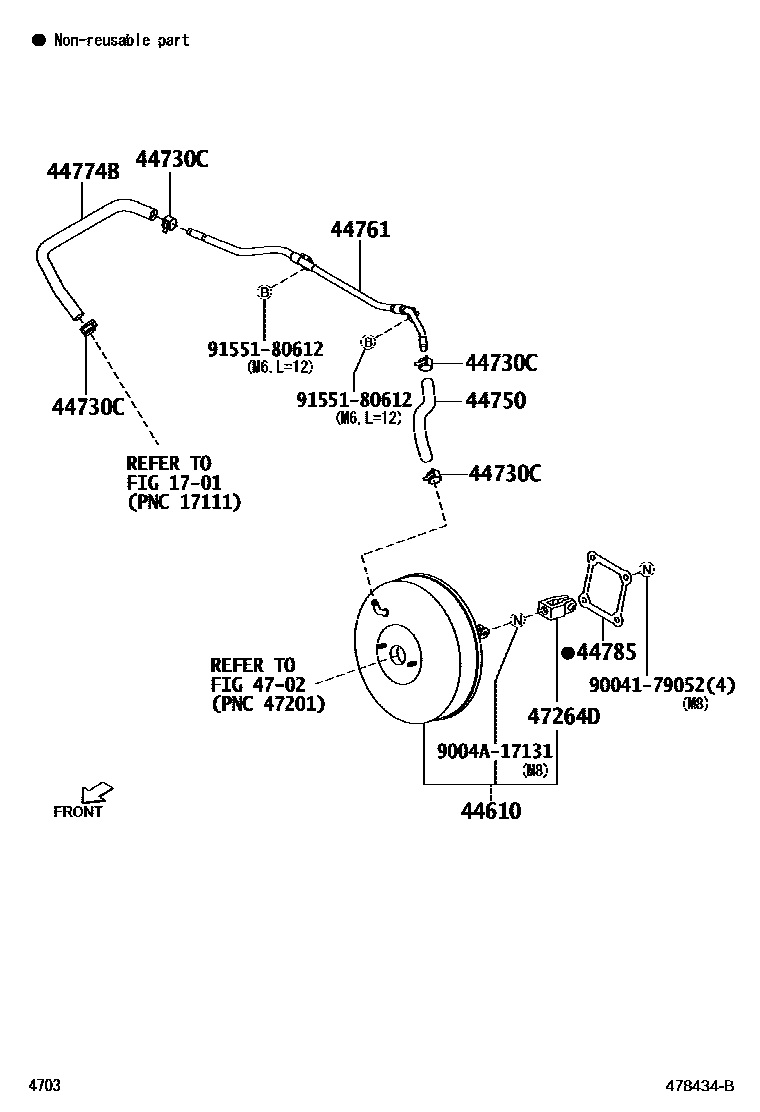

BRAKE BOOSTER & VACUUM TUBE

1701MANIFOLD

→ Go to FIG 17-01

44610BOOSTER ASSY, BRAKE

main44610-B4020iJ200200811-200911

main44610-B4040iJ200,210201605

44730CCLIP(FOR VACUUM HOSE)

main90044-67161×4iJ200,210200811

44750HOSE ASSY, VACUUM

main44750-B4020iJ200,210200811

44761TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR

main44761-B4010iJ200,210200811

44774BHOSE, UNION TO CONNECTOR TUBE

main44774-B4010iJ200,210200811

44785GASKET, BRAKE BOOSTER

main47275-B4010iJ200,210200811

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-87401iJ200,210200811

9004179052

main90041-79052

9004A17131

main9004A-17131

9155180612

main91551-80612

12 parts on this diagram · 1 diagram in section
