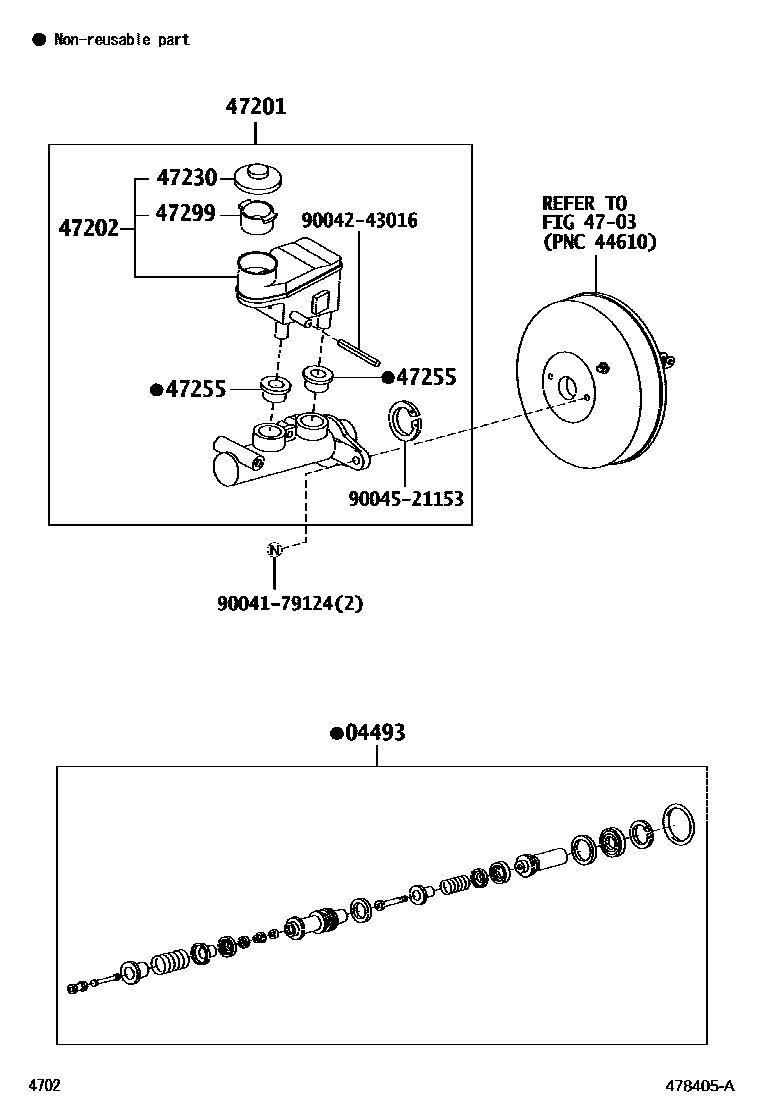

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-B4030iJ200,210200811

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-B4030iJ200,210..E4AT200811

main47201-B4040iJ200,210..5F200811

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-B4010iJ200,210..E4AT200811

main47220-B4020iJ200,210..5F200811

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-B4010iJ200,210200811

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-87502×2iJ200,210200811

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-B4010iJ200,210200811

9004179124

main90041-79124

9004243016

main90042-43016

9004521153

main90045-21153

10 parts on this diagram · 1 diagram in section
