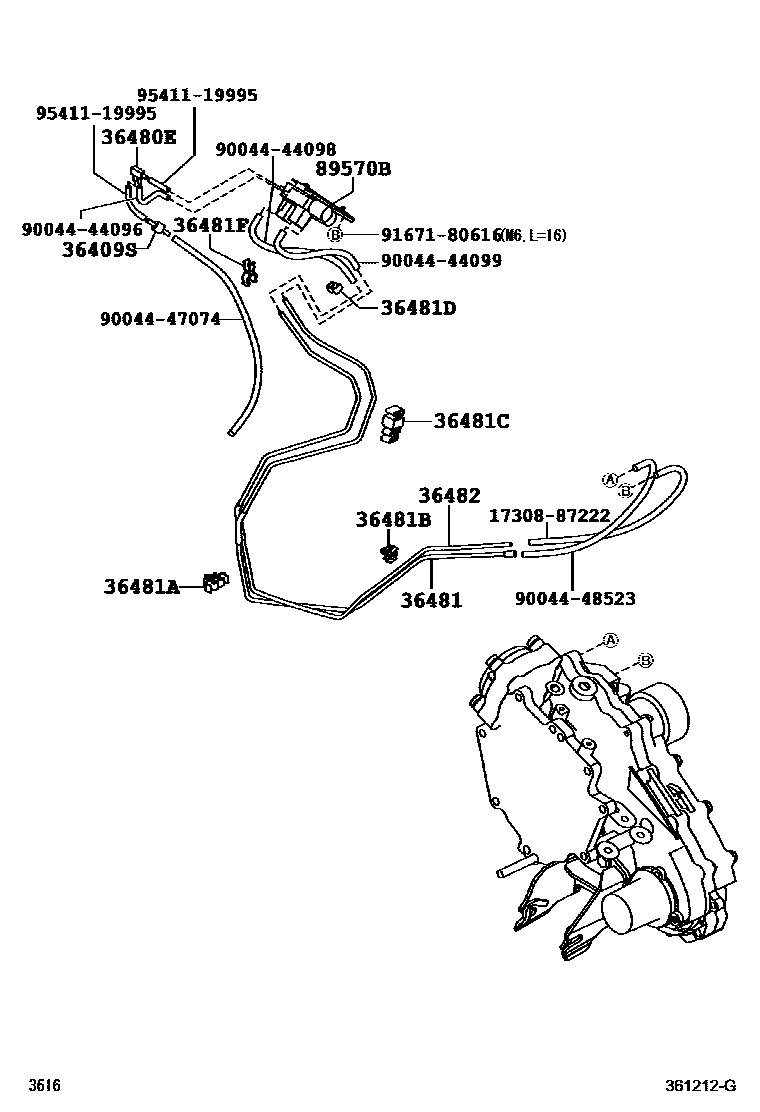

TRANSFER VACUUM PIPING

36409SVALVE, CHECK (FOR FRONT DRIVE SHIFT)

main90048-20008iJ210201605

36480EWAY, 3 (FOR TRANSFER VACUUM TUBE)

main90044-13034iJ210201605

36481TUBE, FRONT DRIVE VACUUM, NO.1

main36481-B4010iJ210201605

36481ACLAMP (FOR FRONT DRIVE VACUUM TUBE)

main90044-64742iJ210201605

36481BCLAMP, FRONT DRIVE VACUUM TUBE, NO.1

main90044-64687iJ210201605

36481CCLAMP, FRONT DRIVE VACUUM TUBE, NO.2

main90044-64781iJ210201605

36481DCLAMP, NO.1 (FOR TRANSFER VACUUM)

main90044-64108iJ210201605

36481FCLAMP, NO.3(FOR TRANSFER VACUUM)

main90044-64805iJ210201605

36482TUBE, FRONT DRIVE VACUUM, NO.2

main36482-B4010iJ210201605

89570BVALVE ASSY, VACUUM SWITCHING

main89470-B4010iJ210201605

1730887222HOSE SUB-ASSY, VACUUM(FOR IDLE-UP)

main17308-87222

9004444096

main90044-44096

9004444098

main90044-44098

9004444099

main90044-44099

9004447074

main90044-47074

9004448523

main90044-48523

9167180616

main91671-80616

9541119995

main95411-19995

18 parts on this diagram · 1 diagram in section
