TRANSFER CASE & EXTENSION HOUSING

12282EHANGER, TRANSFER CASE

main12282-87501i3SZVE..J210201605

3304SPEEDOMETER DRIVEN GEAR (MTM)

→ Go to FIG 33-04

33146ADEFLECTOR, TRANSFER EXTENSION HOUSING DUST

main33146-87404iJ210201605

3608TRANSFER ASSEMBLY & GASKET KIT

→ Go to FIG 36-08

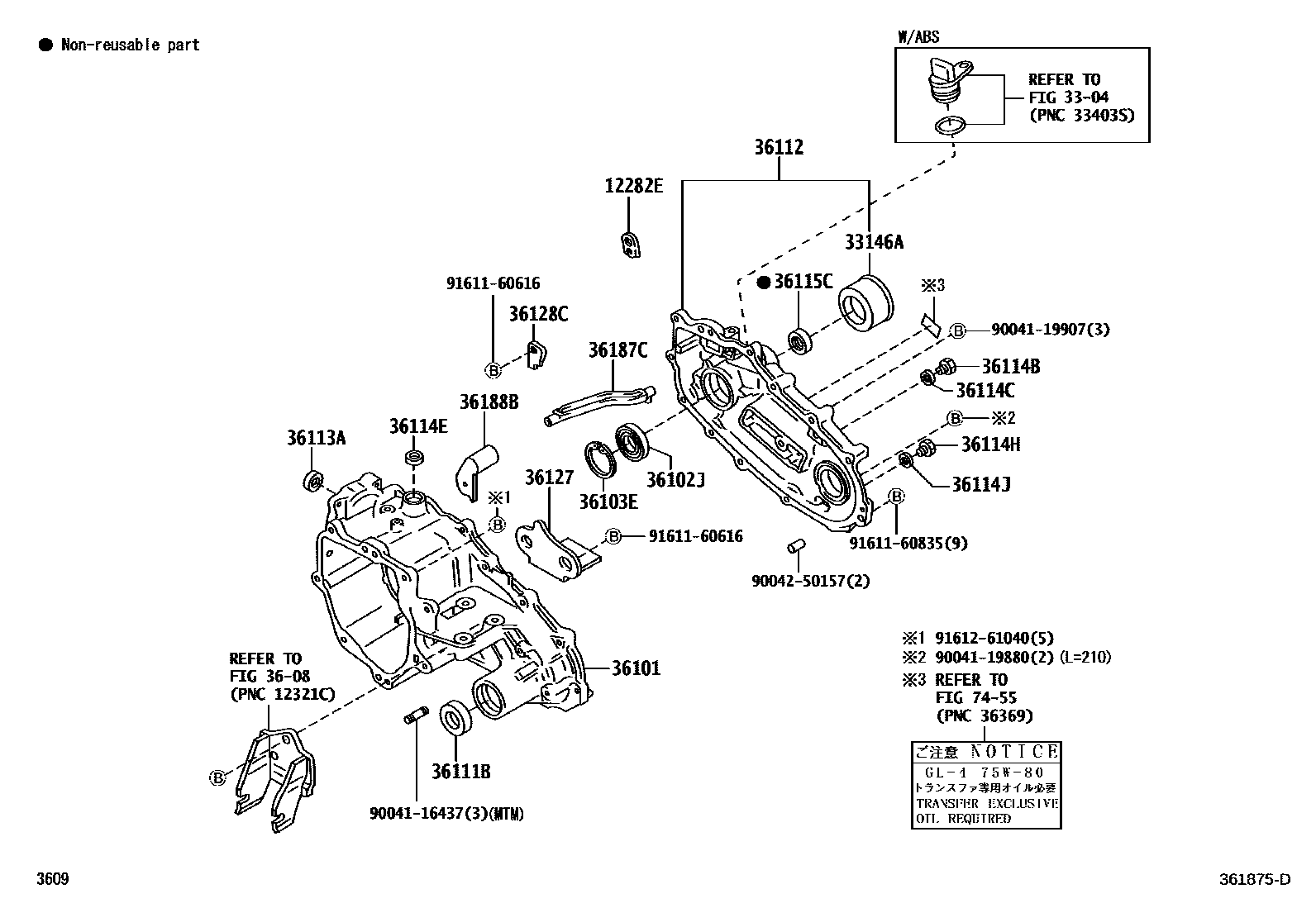

36101CASE SUB-ASSY, TRANSFER

main36103-87401iJ210..E4AT201605

main36103-B4010iJ210..5F201605

36102JSEAL, TYPE T OIL (FOR TRANSFER COVER)

main88364-87501iJ210201605

36103ERING, HOLE SNAP (FOR TRANSFER CASE BEARING)

main90045-21156iJ210201605

36111BSEAL, OIL (FOR TRANSFER CASE)

main90043-11320iJ210201605-201806

36112CASE, TRANSFER, REAR

main36104-B4020iJ210201605

36113ASEAL, OIL (FOR TRANSFER CASE RH)

main90043-11362iJ210201605

36114BPLUG, NO.1 (FOR TRANSFER CASE)

main90341-16012iJ210201605

36114CGASKET, NO.1 (FOR TRANSFER CASE)

main90044-30178iJ210201605

36114ESEAL, OIL (FOR TRANSFER CASE LH)

main90043-13008iJ210201605

36114HPLUG, NO.2 (FOR TRANSFER CASE)

main90043-41068iJ210201605

36114JGASKET, NO.2 (FOR TRANSFER CASE)

main90044-30055iJ210201605

36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)

main90043-11285iJ210201605

36127PLATE, TRANSFER OIL

main36127-87506iJ210201605

36128CPLATE, TRANSFER OIL SUPPLY

main36128-87503iJ210201605

36187CPIPE, TRANSFER OIL SUPPLY, RH

main36187-87502iJ210201605

36188BPIPE, TRANSFER OIL SUPPLY, LH

main36188-87401iJ210..E4AT201605

main36188-B5010iJ210..5F201605

7455CAUTION PLATE

→ Go to FIG 74-55

9004116437

main90041-16437

9004119880

main90041-19880

9004119907

main90041-19907

9004250157

main90042-50157

9161160616

main91611-60616

9161160835

main91611-60835

9161261040

main91612-61040

28 parts on this diagram · 1 diagram in section
