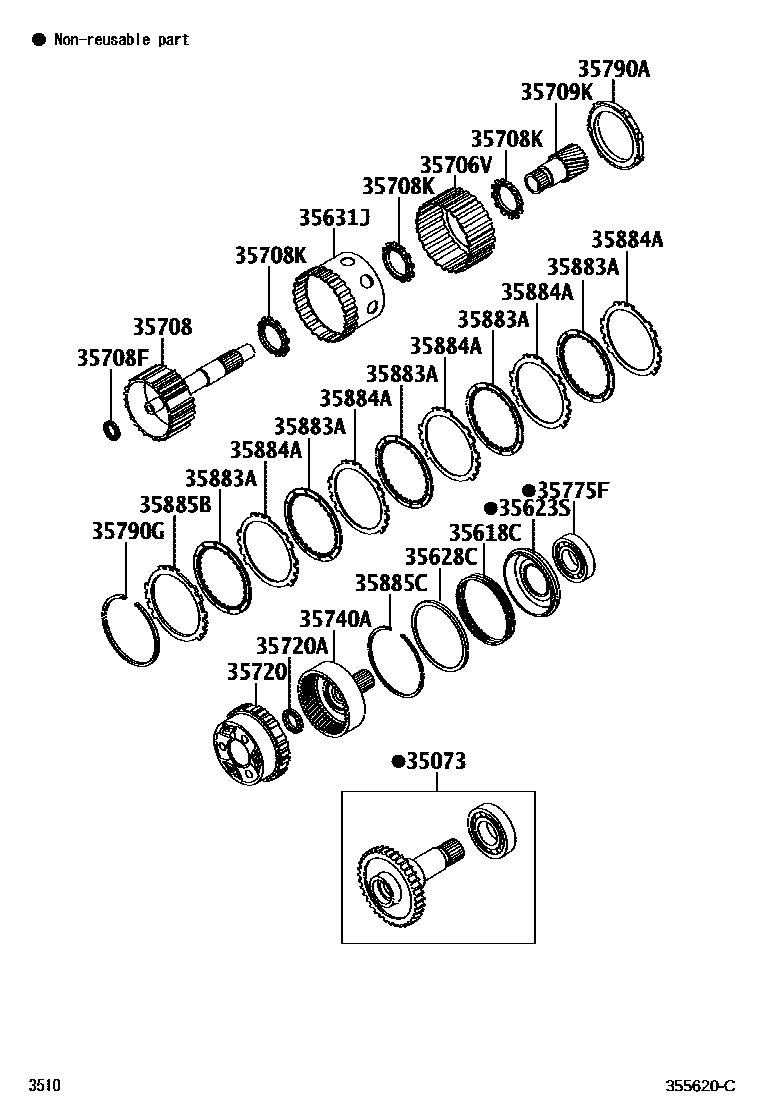

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

35073SHAFT SUB-ASSY, OUTPUT

main35073-B9010200811

main35073-B9020201605

35618CRETURN SPRING SUB-ASSY, 1ST & REVERSE

main35618-B1010200811

35623SPISTON,1ST & REVERSE BRAKE

main35623-97202200811-200911

main35623-B1010201605

35628CSEAT, 1ST & REVERSE BRAKE PISTON RETURN SPRING

main35628-97202200811

35631JHUB, FORWARD CLUTCH, NO.1

main35631-97203200811-200911

main35631-B1010201605

35706VGEAR SUB ASSY, PLANETARY SUN

main35706-97203200811

35708SHAFT SUB-ASSY, INTERMEDIATE

main35708-97203200811

35708FBEARING, THRUST NEEDLE ROLLER (FOR INTERMEDIATE SHAFT)

main90043-74051200811

35708KBEARING, NEEDLE ROLLER(FOR INTERMEDIATE SHAFT)

main90043-74047200811

35709KGEAR SUB-ASSY, REAR PLANETARY

main35709-97204200811

35720GEAR ASSY, FRONT PLANETARY

main35720-97211200811

35720ABEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR)

main90043-74043200811

35740AGEAR ASSY,FRONT PLANETARY RING

main35740-97201200811

main35740-B5010201605

35775FBEARING, RADIAL BOLL

main90043-63273200811

35790ACLUTCH ASSY, 1 WAY

main35790-97201200811-200911

main35790-B1050201605

35790GHOLE SNAP RING (FOR 1WAY CLUTCH)

main90045-21174200811

35883ADISC, BRAKE

main35883-97204200811-200911

main35883-B1020201701-201706

main35883-B1030201605-201701

main35883-B5010201707

35884APLATE,BRAKE

main35884-97204200811-201701

main35884-B1010201701

35885BFLANGE, BRAKE

main35885-97213200811-201701

main35885-97214200811-201701

main35885-97215200811-201701

main35885-97216200811-201701

main35885-97217200811-201701

main35885-97218200811-201701

main35885-B1010201701

main35885-B1020201701

main35885-B1030201701

main35885-B1040201701

main35885-B1050201701

main35885-B1060201701

35885CRING,HOLE SNAP (FOR CLUTCH PLATE)

main90045-21175200811-200911

main90045-21194201605

20 parts on this diagram · 1 diagram in section
