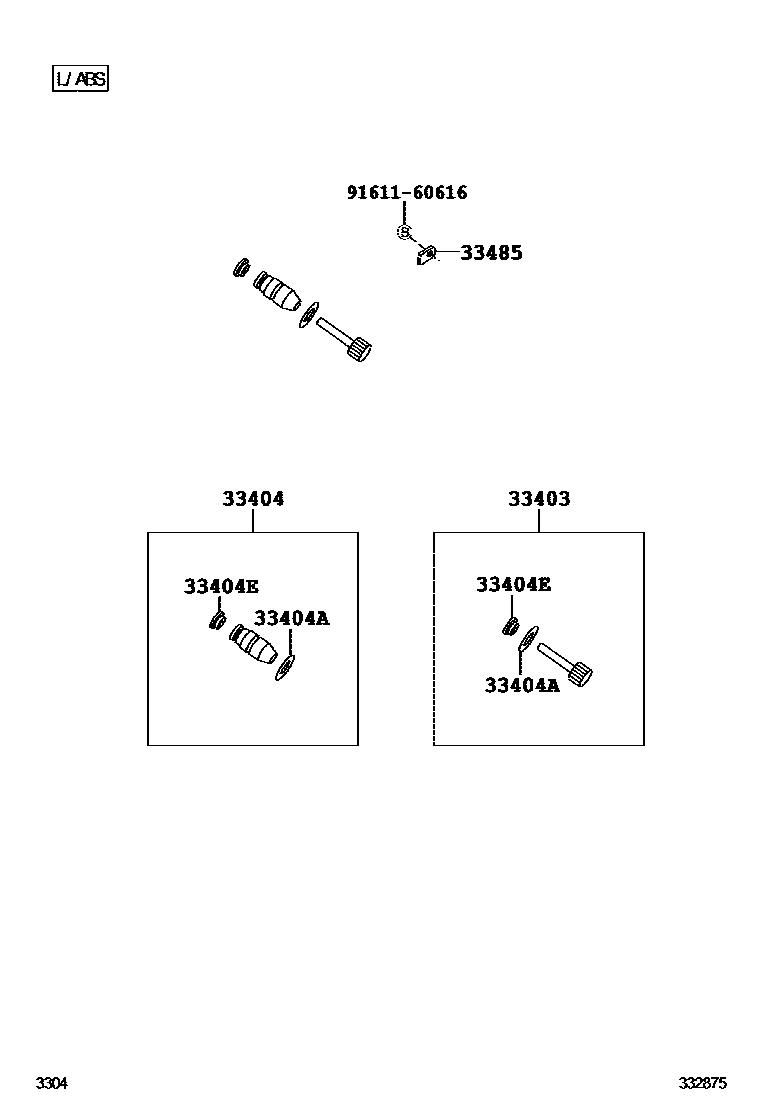

SPEEDOMETER DRIVEN GEAR (MTM)

0001 1L/ABS 0002 1W/ABS

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33482-B9040iJ200..5F200811-200911

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33484-B9050iJ200..5F200811-200911

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main96723-24020iJ200..5F200811-200911

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90043-11341iJ200..5F200811-200911

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-87201iJ200..5F200811-200911

9161160616

main91611-60616

6 parts on this diagram · 2 diagrams in section
