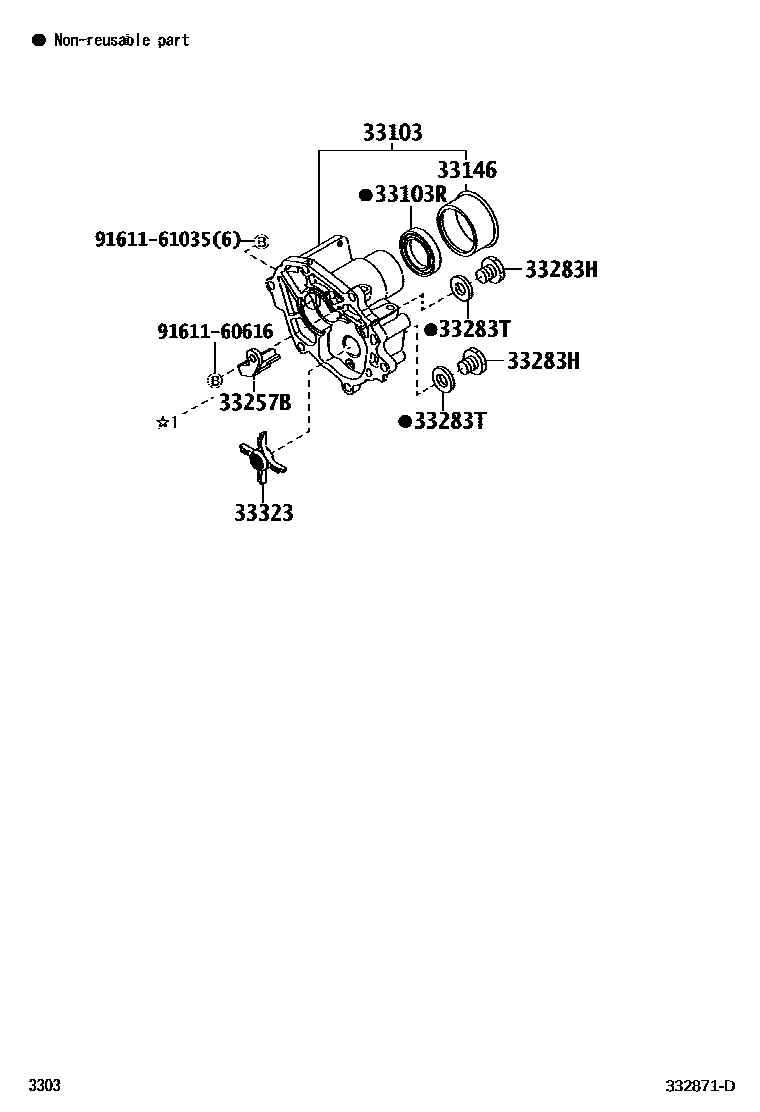

EXTENSION HOUSING (MTM)

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-87401iJ200..5F200811-200911

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90043-11285iJ200..5F200811-200911

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-87404iJ200..5F200811-200911

33257BPLATE, GEAR OIL

main35257-87501iJ200..5F200811-200911

33283HPLUG, W/HEAD STRAIGHT SCREW

main90341-16012×2iJ200..5F200811-200911

33283TGASKET (FOR HEAD STRAIGHT SCREW PLUG)

main90044-30178×2iJ200..5F200811-200911

33323SLINGER, OUTPUT SHAFT OIL

main33467-87501iJ200..5F200811-200911

9161160616

main91611-60616

9161161035

main91611-61035

9 parts on this diagram · 1 diagram in section
