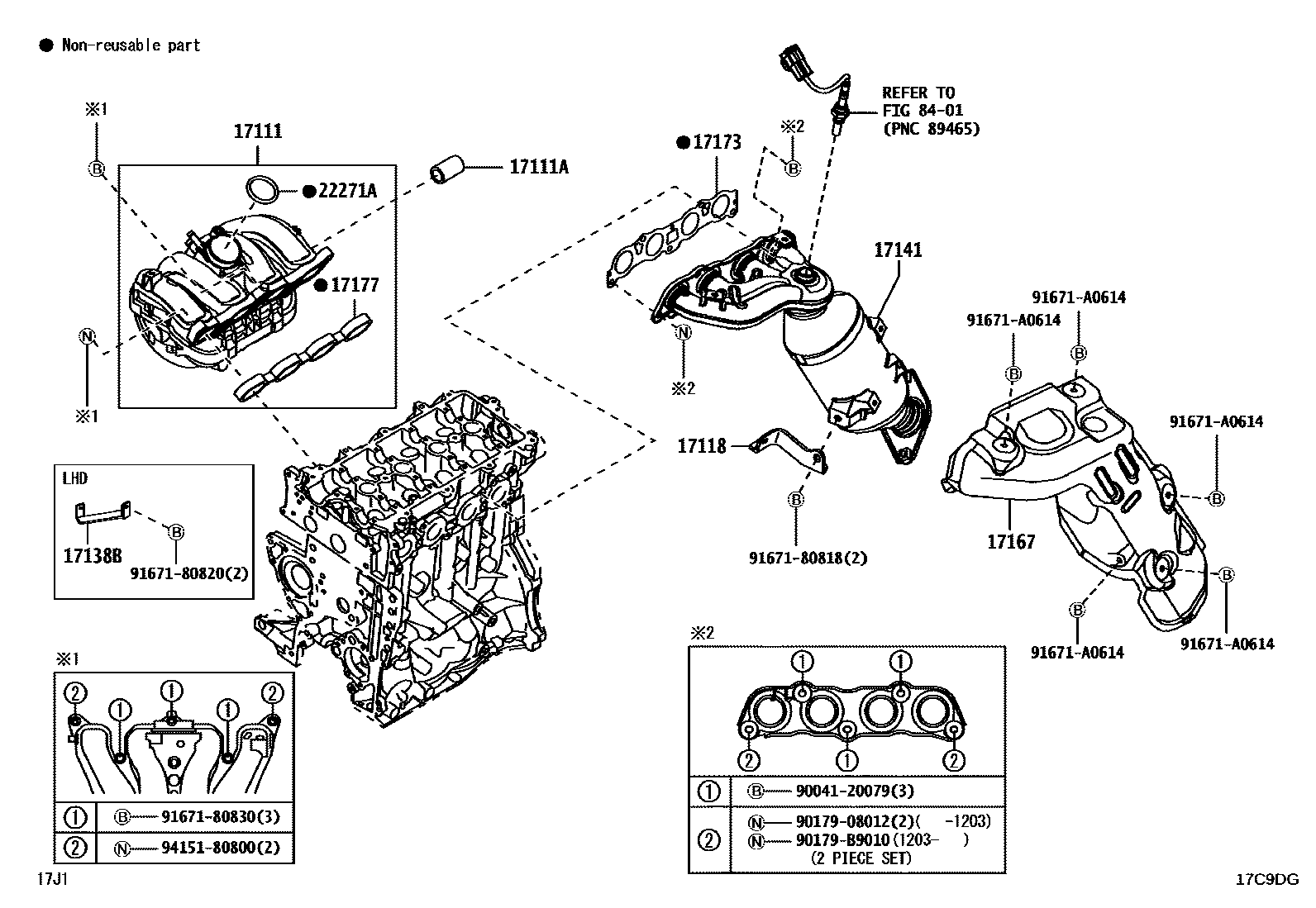

MANIFOLD

17111MANIFOLD, INTAKE

main17120-B1020i3SZVE..J200,210200811

17111APLUG, NO.1

main90043-39029i3SZVE..J200200811

17118STAY, MANIFOLD

main17118-B1030i3SZVE..J200,210200811

17138BSTAY, INTAKE MANIFOLD

main17138-B1020i3SZVE..J200,210200811

17141MANIFOLD, EXHAUST

main17140-B1100i3SZVE..J200200811-200911

main17140-B1260i3SZVE..J200,210201605

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-B1020i3SZVE..J200,210200811

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-97401i3SZVE..J200,210200811

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-B1020i3SZVE..J200,210200811

22271AGASKET, THROTTLE BODY

main90043-01321i3SZVE..J200,210200811

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9004120079

main90041-20079

9017908012

main90179-08012

90179B9010

main90179-B9010

9167180818

main91671-80818

9167180820

main91671-80820

9167180830

main91671-80830

91671A0614

main91671-A0614

9415180800

main94151-80800

18 parts on this diagram · 1 diagram in section
