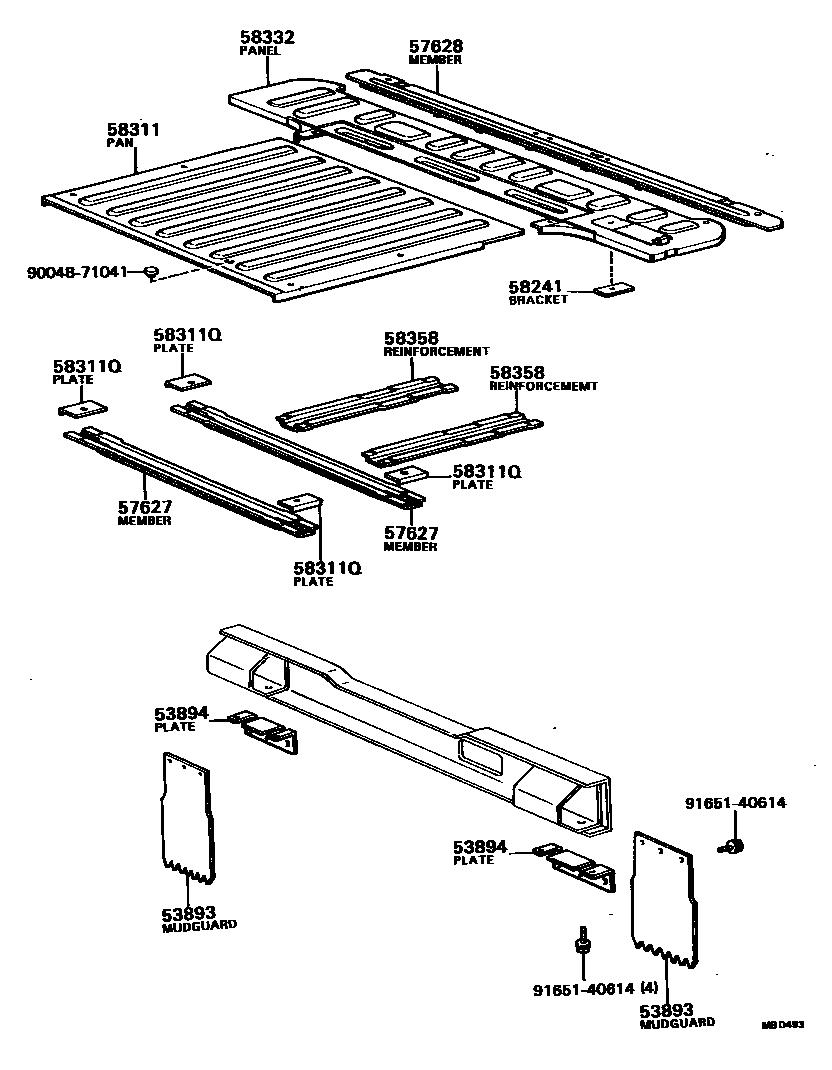

REAR FLOOR PANEL & REAR FLOOR MEMBER

53893MUDGUARD, REAR

main66241-87604×2iLD10198201-198210

main66241-87609×2iLD10198210-198404

53894PLATE, REAR MUDGUARD SET RETAINER

main66221-87602×2iLD10198201-198404

57627MEMBER, REAR FLOOR CROSS, FRONT

main58260-87603×2iLD10198201-198404

57628MEMBER, REAR FLOOR CROSS, REAR

main57609-87605iLD10198201-198404

58241BRACKET, JACK

main58367-87502iLD10198201-198404

58311PAN, REAR FLOOR

main58211-87602iLD10198201-198404

58311QPLATE, REAR FLOOR CROSSMEMBER, SIDE

main58346-87603×4iLD10198201-198404

58332PANEL, REAR FLOOR, REAR

main58209-87610iLD10198201-198404

58358REINFORCEMENT, REAR FLOOR, REAR

main58231-87602×2iLD10198201-198404

9004871041

main90048-71041

9165140614

main91651-40614

11 parts on this diagram · 1 diagram in section
