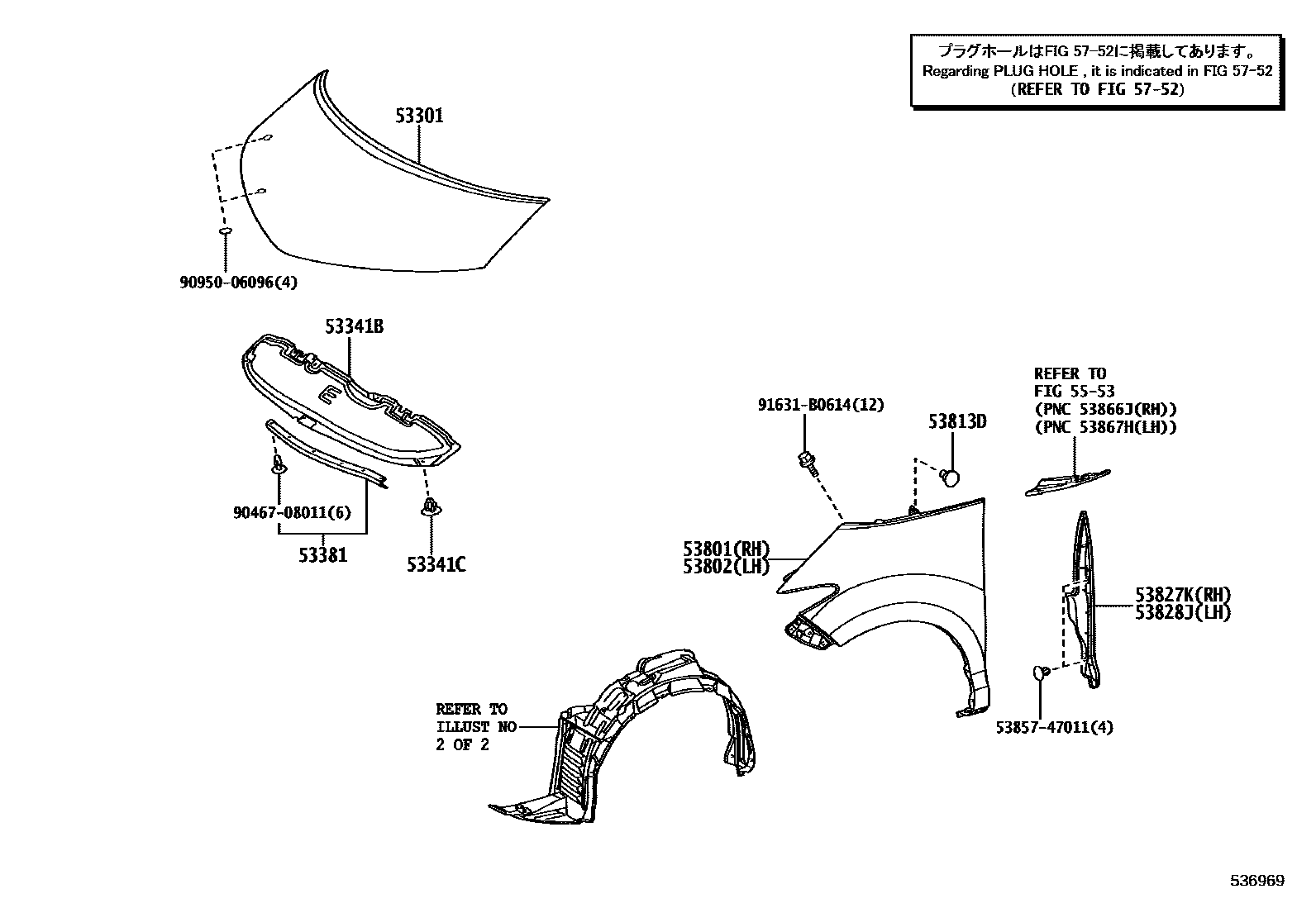

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53301HOOD SUB-ASSY

main53301-28110iAHR20201304

53341BINSULATOR, HOOD

main53341-28070iAHR20201304

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050×5iAHR20201304

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-28090iAHR20201304

53801FENDER SUB-ASSY, FRONT RH

main53811-28091iAHR20201304

53802FENDER SUB-ASSY, FRONT LH

main53812-28091iAHR20201304

53813DEXTENSION, FRONT FENDER

main53813-52020×2iAHR20201304

53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-28081iAHR20201304

53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-28061iAHR20201304

5553COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-53

5752HOLE PLUG

→ Go to FIG 57-52

5385747011RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011

9046708011

main90467-08011

9095006096

main90950-06096

91631B0614

main91631-B0614

15 parts on this diagram · 2 diagrams in section
