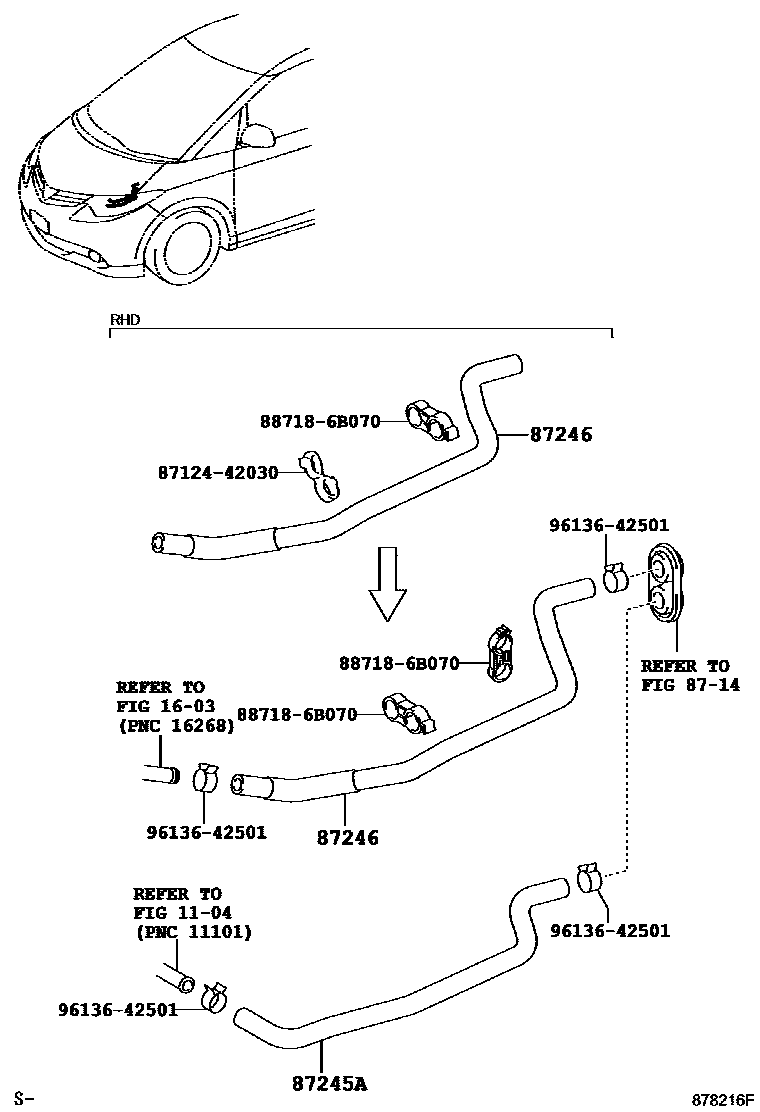

HEATING & AIR CONDITIONING - WATER PIPING

0001 1FRONT,W/O(REAR HEATER) 0002 1FRONT,W(REAR HEATER) 0005 1FRONT,W(REAR HEATER) 0007 1FRONT,W/O(REAR HEATER) 0008 1FRONT,W(REAR HEATER) 0009 1REAR

1104CYLINDER HEAD

→ Go to FIG 11-04

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245HOSE, HEATER WATER, INLET

main87245-63080iACR50..CVT201003-201605

87245AHOSE, HEATER WATER, INLET A

main87209-28A00iACR50..LHD..GL..GEN200601-201111

main87209-28A01iACR50..LHD..GL..GEN201112-201204

main87209-28A11iACR50..RHD..CVT..GL201204-201907

main87209-28A11iACR50..ARL201605

COLD AREA SPEC

main87209-28A30iGSR50..RHD..GEN201011-201111

main87209-28A31iGSR50..RHD..GEN201112-201605

COLD AREA SPEC

main87209-28A31iGSR50..DLX201409-201605

main87209-28A50iGSR50..LHD..GEN200611-201111

main87209-28A51iGSR50..LHD..GEN201112-201204

main87209-28A90iACR50..CVT201003-201111

main87209-28A91iACR50..(AERAS,DLX)..GEN201112-201605

main87245-28B10iACR50..LHD..GL..GEN200601-201204

WITHOUT(COLD AREA SPEC)

main87245-28B10iACR50..LHD201204-201605

main87245-28B20iACR50..RHD200601-201205

main87245-28B20iACR50..CVT..ARL;ACR50..RHD..4FC..GEN201204-201605

SINGAPORE SPEC

main87245-28B40iGSR50..GL..ARL200611-201605

main87245-28B60iGSR50..GCC200611-201204

WITHOUT(COLD AREA SPEC)

main87245-28B60iGSR50..GEN201204-201605

87246HOSE, HEATER WATER, OUTLET

main87209-28871iACR50..ARL201605

COLD AREA SPEC

main87209-28871iACR50..RHD..CVT..GL201204-201907

main87209-28890iACR50..LHD..GL..GEN200601-201111

main87209-28891iACR50..LHD..GL..GEN201112-201204

main87209-28A20iGSR50..RHD..GEN201011-201111

main87209-28A21iGSR50..GL..ARL201112-201605

COLD AREA SPEC

main87209-28A21iGSR50..DLX201409-201605

main87209-28A40iGSR50..LHD..GEN200611-201111

main87209-28A41iGSR50..LHD..GEN201112-201204

main87209-28B60iACR50..CVT201003-201111

main87209-28B61iACR50..(AERAS,DLX)..GEN201112-201605

main87245-28A90iACR50..DLX..GEN201204-201605

SINGAPORE SPEC

main87245-28A90iACR50..RHD..4FC200601-201205

main87245-28B00iACR50..LHD201204-201605

main87245-28B00iACR50..GCC;ACR50..LHD..DLX..GEN200601-201204

WITHOUT(COLD AREA SPEC)

main87245-28B30iGSR50..ARL200611-201605

main87245-28B50iGSR50..LHD201204-201605

main87245-28B50iGSR50..GCC200611-201204

WITHOUT(COLD AREA SPEC)

8712442030CLAMP, HEATER

main87124-42030

887186B070PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-6B070

9613642501

main96136-42501

9 parts on this diagram · 6 diagrams in section
