HEATING & AIR CONDITIONING - COOLER UNIT

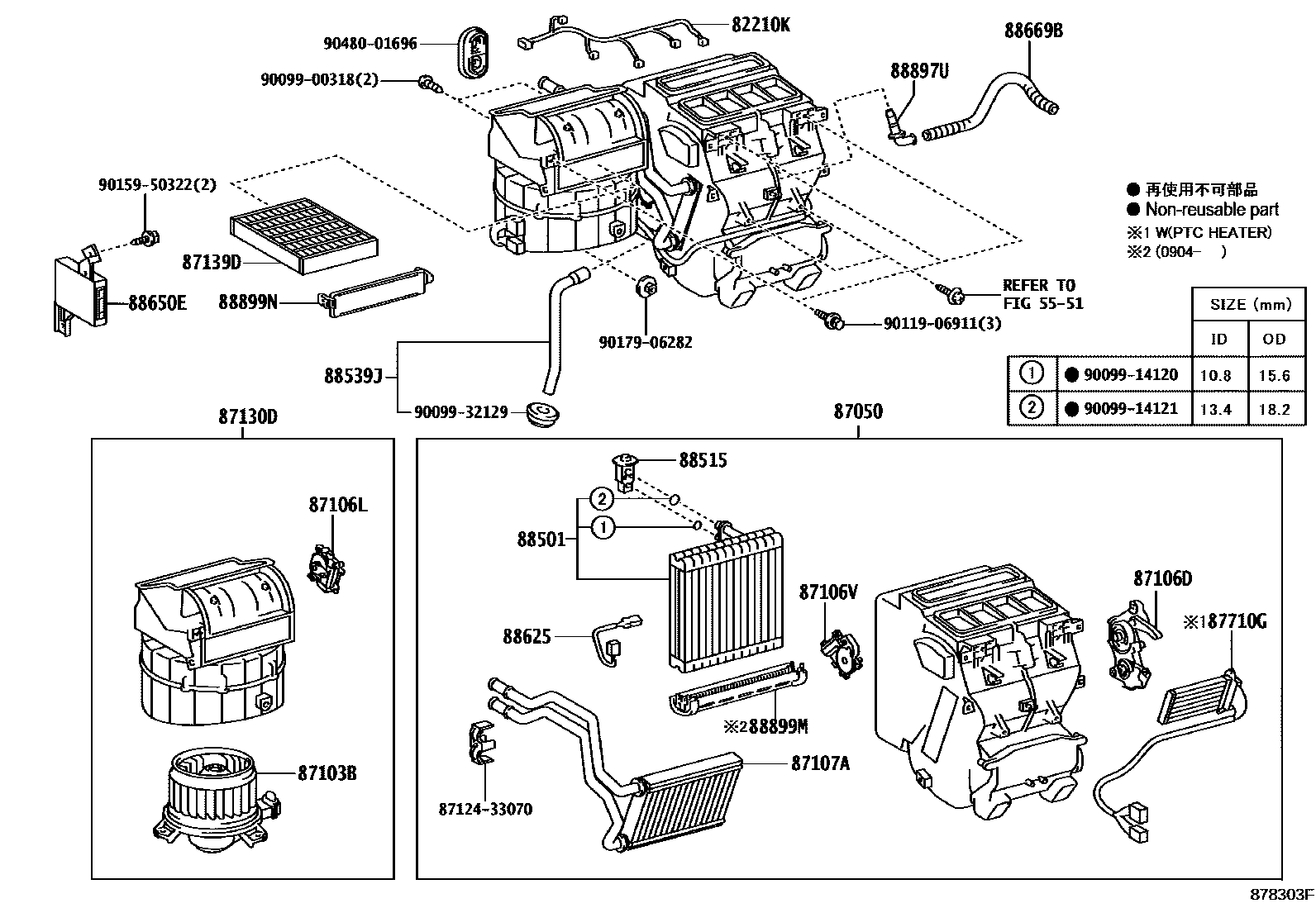

Parts diagram
5551INSTRUMENT PANEL & GLOVE COMPARTMENT
→ Go to FIG 55-51
82210KHARNESS ASSY, AIR CONDITIONER
main82212-28030i200702-201906
main82212-28040i200702-201605
main82212-33010i200601-200701
main82212-33020i200601-200702
87050RADIATOR ASSY, AIR CONDITIONER
main87050-28620i200601-200701
main87050-28621i200702-200708
main87050-28622i200709-201205
main87050-28632i201003-201205
main87050-28640i200601-200701
HONDURAS SPEC&WITHOUT(COLD AREA SPEC)
main87050-28640i200601-200701
EL SALVADOR SPEC&WITHOUT(COLD AREA SPEC)
main87050-28640i200611-200701
VENEZUELA SPEC&WITHOUT(COLD AREA SPEC)
main87050-28640i200601-200701
TAIWAN SPEC&WITHOUT(COLD AREA SPEC)
main87050-28640i200601-200701
WITHOUT(COLD AREA SPEC)
main87050-28640i200601-200701
PHILIPPINES SPEC&WITHOUT(COLD AREA SPEC)
main87050-28640i200601-200701
JORDAN SPEC&WITHOUT(COLD AREA SPEC)
main87050-28640i200601-200701
GUATEMALA SPEC&WITHOUT(COLD AREA SPEC)
main87050-28641i200702-200708
TAIWAN SPEC&WITHOUT(COLD AREA SPEC)
main87050-28641i200702-200708
VENEZUELA SPEC&WITHOUT(COLD AREA SPEC)
main87050-28641i200702-200708
EL SALVADOR SPEC&WITHOUT(COLD AREA SPEC)
main87050-28641i200702-200708
HONDURAS SPEC&WITHOUT(COLD AREA SPEC)
main87050-28641i200702-200708
GUATEMALA SPEC&WITHOUT(COLD AREA SPEC)
main87050-28641i200702-200708
JORDAN SPEC&WITHOUT(COLD AREA SPEC)
main87050-28641i200702-200708
PHILIPPINES SPEC&WITHOUT(COLD AREA SPEC)
main87050-28641i200702-200708
WITHOUT(COLD AREA SPEC)
main87050-28642i200709-201204
EL SALVADOR SPEC&WITHOUT(COLD AREA SPEC)
main87050-28642i200709-201204
VENEZUELA SPEC&WITHOUT(COLD AREA SPEC)
main87050-28642i200709-201204
TAIWAN SPEC&WITHOUT(COLD AREA SPEC)
main87050-28642i200709-201204
WITHOUT(COLD AREA SPEC)
main87050-28642i200709-201204
PHILIPPINES SPEC&WITHOUT(COLD AREA SPEC)
main87050-28642i200709-201204
JORDAN SPEC&WITHOUT(COLD AREA SPEC)
main87050-28642i200709-201204
GUATEMALA SPEC&WITHOUT(COLD AREA SPEC)
main87050-28642i200709-201204
HONDURAS SPEC&WITHOUT(COLD AREA SPEC)
main87050-28650i200601-200701
main87050-28651i200702-200708
main87050-28652i200709-201204
main87050-28720i201204-201906
main87050-28740i201605
COLD AREA SPEC
main87050-28740i201409-201605
main87050-28750i201204-201605
87103BMOTOR SUB-ASSY, BLOWER W/FAN
main87103-28150i201605-201906
main87103-28160i201605
main87103-33090i200601-201605
main87103-33100i200601-201605
87106DSERVO SUB-ASSY, DAMPER, NO.1
main87106-28190i200601-200701
main87106-28191i200702-201906
87106LSERVO SUB-ASSY, DAMPER
main87106-33270i200601-201605
main87106-33280i200601-201906
87106VSERVO SUB-ASSY, DAMPER(FOR AIRMIX NO.2)
main87106-33260i200601-201906
87107AUNIT SUB-ASSY, HEATER RADIATOR
main87107-33120i200601-201906
87130DBLOWER ASSY
main87130-28540i200601-201605
main87130-28541i201605-201906
main87130-28550i201003-201605
main87130-28551i201605
COLD AREA SPEC
main87130-28570i200601-201204
main87130-28580i201112-201204
WITHOUT(COLD AREA SPEC)
main87130-28580i201112-201204
VENEZUELA SPEC&WITHOUT(COLD AREA SPEC)
main87130-28580i201112-201204
EL SALVADOR SPEC&WITHOUT(COLD AREA SPEC)
main87130-28580i201112-201204
HONDURAS SPEC&WITHOUT(COLD AREA SPEC)
main87130-28580i201112-201204
GUATEMALA SPEC&WITHOUT(COLD AREA SPEC)
main87130-28580i201112-201204
JORDAN SPEC&WITHOUT(COLD AREA SPEC)
main87130-28580i201112-201204
PHILIPPINES SPEC&WITHOUT(COLD AREA SPEC)
main87130-28580i201112-201204
TAIWAN SPEC&WITHOUT(COLD AREA SPEC)
main87130-28580i201204-201605
main87130-28581i201605
main87130-33200i200601-201111
PHILIPPINES SPEC&WITHOUT(COLD AREA SPEC)
main87130-33200i200601-201111
TAIWAN SPEC&WITHOUT(COLD AREA SPEC)
main87130-33200i200601-201111
WITHOUT(COLD AREA SPEC)
main87130-33200i200601-201111
JORDAN SPEC&WITHOUT(COLD AREA SPEC)
main87130-33200i200601-201111
GUATEMALA SPEC&WITHOUT(COLD AREA SPEC)
main87130-33200i200601-201111
HONDURAS SPEC&WITHOUT(COLD AREA SPEC)
main87130-33200i200601-201111
EL SALVADOR SPEC&WITHOUT(COLD AREA SPEC)
main87130-33200i200611-201111
VENEZUELA SPEC&WITHOUT(COLD AREA SPEC)
87139DELEMENT, AIR REFINER
main87139-30040i200601-201304
MICRO DUST FILTER
main87139-30040i200812-201205
main87139-50100i201304-201906
*DPF
87710GQUICK HEATER ASSY
main87710-28091i201605
COLD AREA SPEC
main87710-28091i201003-201605
main87710-28100i200601-200805
main87710-28101i200806-201204
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
main88501-28400i200709-200904
main88501-33120i200601-200611
EL SALVADOR SPEC&WITHOUT(COLD AREA SPEC)
main88501-33120i200601-200611
TAIWAN SPEC&WITHOUT(COLD AREA SPEC)
main88501-33120i200601-200611
WITHOUT(COLD AREA SPEC)
main88501-33120i200601-200611
PHILIPPINES SPEC&WITHOUT(COLD AREA SPEC)
main88501-33120i200601-200611
JORDAN SPEC&WITHOUT(COLD AREA SPEC)
main88501-33120i200601-200611
GUATEMALA SPEC&WITHOUT(COLD AREA SPEC)
main88501-33120i200601-200611
HONDURAS SPEC&WITHOUT(COLD AREA SPEC)
main88501-33120i200601-200702
main88501-33190i200611-200708
main88501-48310i200904-201007
main88501-48311i201007-201906
88515VALVE, COOLER EXPANSION
main88515-28240i201204-201906
main88515-33020i200601-201205
88539JHOSE, DRAIN COOLER
main88539-28280i200601-201906
main88539-28290i200601-201605
88625THERMISTOR, COOLER, NO.1
main88625-33190i200601-201906
main88625-33190i200812-201011
HONG KONG SPEC&COLD AREA SPEC
main88625-33190i200812-201205
COLD AREA SPEC
88650EAMPLIFIER ASSY, AIR CONDITIONER, NO.1
main88650-28A60i201204-201303
SINGAPORE SPEC
main88650-28A61i201304-201308
SINGAPORE SPEC
main88650-28A63i201308-201409
SINGAPORE SPEC
main88650-28A64i201409-201605
SINGAPORE SPEC
main88650-28A70i200601-200903
WITHOUT(COLD AREA SPEC)
main88650-28A70i200601-200903
PHILIPPINES SPEC&WITHOUT(COLD AREA SPEC)
main88650-28A70i200601-200903
JORDAN SPEC&WITHOUT(COLD AREA SPEC)
main88650-28A70i200601-200903
GUATEMALA SPEC&WITHOUT(COLD AREA SPEC)
main88650-28A70i200601-200903
HONDURAS SPEC&WITHOUT(COLD AREA SPEC)
main88650-28A70i200601-200903
EL SALVADOR SPEC&WITHOUT(COLD AREA SPEC)
main88650-28A70i200601-200903
TAIWAN SPEC&WITHOUT(COLD AREA SPEC)
main88650-28A70i200812-200903
VENEZUELA SPEC&WITHOUT(COLD AREA SPEC)
main88650-28A71i200904-200910
WITHOUT(COLD AREA SPEC)
main88650-28A71i200904-200910
TAIWAN SPEC&WITHOUT(COLD AREA SPEC)
main88650-28A71i200904-200910
PHILIPPINES SPEC&WITHOUT(COLD AREA SPEC)
main88650-28A71i200904-200910
JORDAN SPEC&WITHOUT(COLD AREA SPEC)
main88650-28A71i200904-200910
GUATEMALA SPEC&WITHOUT(COLD AREA SPEC)
main88650-28A71i200904-200910
HONDURAS SPEC&WITHOUT(COLD AREA SPEC)
main88650-28A71i200904-200910
EL SALVADOR SPEC&WITHOUT(COLD AREA SPEC)
main88650-28A71i200904-200910
VENEZUELA SPEC&WITHOUT(COLD AREA SPEC)
main88650-28A72i200911-201204
JORDAN SPEC&WITHOUT(COLD AREA SPEC)
main88650-28A72i200911-201204
EL SALVADOR SPEC&WITHOUT(COLD AREA SPEC)
main88650-28A72i200911-201204
VENEZUELA SPEC&WITHOUT(COLD AREA SPEC)
main88650-28A72i200911-201204
TAIWAN SPEC&WITHOUT(COLD AREA SPEC)
main88650-28A72i200911-201204
WITHOUT(COLD AREA SPEC)
main88650-28A72i200911-201204
PHILIPPINES SPEC&WITHOUT(COLD AREA SPEC)
main88650-28A72i200911-201204
GUATEMALA SPEC&WITHOUT(COLD AREA SPEC)
main88650-28A72i200911-201204
HONDURAS SPEC&WITHOUT(COLD AREA SPEC)
main88650-28A72i200911-201205
main88650-28A80i200611-200903
TAIWAN SPEC&WITHOUT(COLD AREA SPEC)
main88650-28A80i200611-200903
JORDAN SPEC&WITHOUT(COLD AREA SPEC)
main88650-28A81i200904-200910
TAIWAN SPEC&WITHOUT(COLD AREA SPEC)
main88650-28A81i200904-200910
JORDAN SPEC&WITHOUT(COLD AREA SPEC)
main88650-28A82i200911-201205
main88650-28A82i200911-201204
TAIWAN SPEC&WITHOUT(COLD AREA SPEC)
main88650-28A90i200812-200903
COLD AREA SPEC
main88650-28A90i200601-200812
COLD SPEC(BATTERY SIZE:80D26L)
main88650-28A90i200812-200903
HONG KONG SPEC&COLD AREA SPEC
main88650-28A90i200601-200812
HONG KONG SPEC&COLD SPEC(BATTERY SIZE:80D26L)
main88650-28A91i200904-200910
HONG KONG SPEC&COLD AREA SPEC
main88650-28A91i200904-200910
COLD AREA SPEC
main88650-28A92i200911-201205
main88650-28B50i201204-201303
main88650-28B51i201304-201308
main88650-28B53i201308-201409
main88650-28B54i201409-201605
main88650-28B60i201204-201303
BEIJING SPEC&COLD AREA SPEC
main88650-28B60i201204-201303
CHINA SPEC&COLD AREA SPEC
main88650-28B61i201304-201308
CHINA SPEC&COLD AREA SPEC
main88650-28B61i201304-201308
BEIJING SPEC&COLD AREA SPEC
main88650-28B61i201304-201308
COLD AREA SPEC
main88650-28B63i201308-201409
CHINA SPEC&COLD AREA SPEC
main88650-28B63i201308-201409
BEIJING SPEC&COLD AREA SPEC
main88650-28B63i201308-201409
COLD AREA SPEC
main88650-28B64i201409-201605
CHINA SPEC&COLD AREA SPEC
main88650-28B64i201409-201605
COLD AREA SPEC
main88650-28B64i201409-201605
BEIJING SPEC&COLD AREA SPEC
main88650-28D10i201605
main88650-28D20i201605
COLD AREA SPEC
main88650-28D20i201605-201906
main88650-28D30i201605
88669BHOSE, COOLER AIR
main88669-33090i200601-201906
88897UPIPE, ASPIRATOR
main88897-33030i200601-201906
88899MPLATE, COVER(FOR AIR FILTER)
main88899-33050i200904-201906
88899NPLATE, COVER
main88899-33040i200601-201906
8712433070CLAMP, HEATER
main87124-33070
9009900318
main90099-00318
9009914120
main90099-14120
9009914121
main90099-14121
9009932129
main90099-32129
9011906911
main90119-06911
9015950322
main90159-50322
9017906282
main90179-06282
9048001696
main90480-01696
