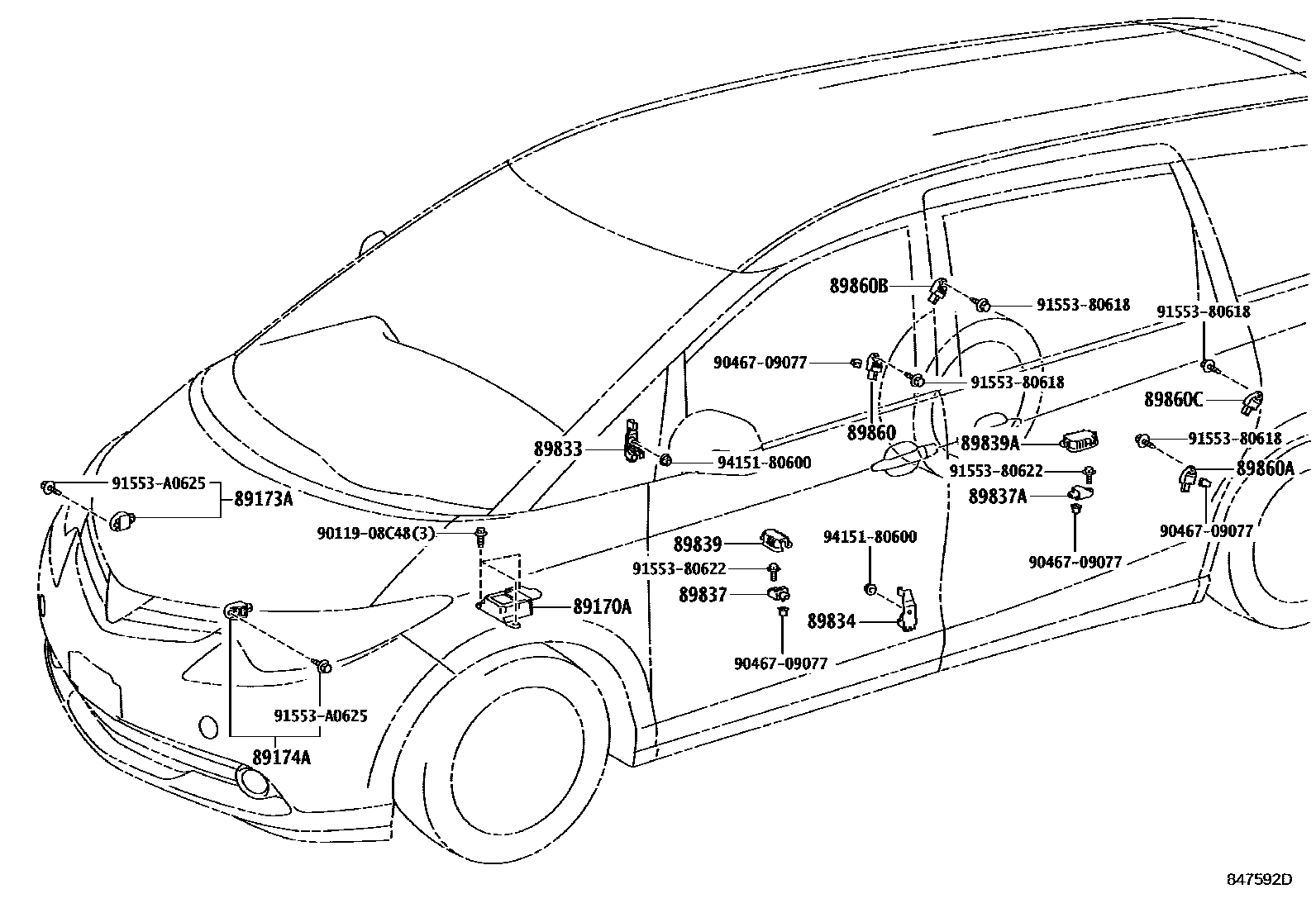

AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-28240iACR50..GCC;ACR50..CVT..GL201605-201910

main89170-28260supersedes 89170-28280iACR50..GL;ACR50..DLX..GCC201204-201605

main89170-28270supersedes 89170-28260iACR50..RHD..CVT..GL; GSR50..ARL;ACR50..CVT..(AERAS,DLX)201204-201605

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

main89170-28280iACR50..LHD..CVT; GSR50..LHD201204-201605

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

main89170-28410iACR50..CVT..(AERAS,DLX);ACR50,GSR50..ATM..(ARL,GEN); ACR50..CVT..GL201605-201910

SRS AIR BAG-*DRS & *PAS & *CUSA & SIDE & KNEE

89173ASENSOR, AIRBAG, FRONT RH

main89173-49375iACR50,GSR50200601-200812

main89173-79095iACR50..AERAS201605-201906

89174ASENSOR, AIRBAG, FRONT LH

main89173-49375iACR50,GSR50200601-200812

main89173-79095iACR50..AERAS201605-201906

89833SENSOR, AIRBAG, REAR RH

main89833-28010iGSR50..RHD..GEN201204-201409

main89833-28020iACR50..AERAS201605-201906

89834SENSOR, AIRBAG, REAR LH

main89834-28010iGSR50..RHD..GEN201204-201409

main89834-28020iACR50..CVT..DLX;ACR50,GSR50..ATM..(ARL,GEN); ACR50..CVT..GL201605

SRS AIR BAG-*DRS & *PAS & *CUSA & SIDE & KNEE

89837SENSOR, FRONT FLOOR SIDE AIRBAG

main89837-28050iACR50..AERAS201605-201906

main89837-58010iGSR50..RHD..GEN201204-201409

main89837-28010iGSR50200601-200612

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

main89837-28011iACR50,GSR50200612-200705

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

main89837-60010iACR50,GSR50200706-200812

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

89837ASENSOR, REAR FLOOR SIDE AIRBAG

main89837-28040iACR50..AERAS201605-201906

main89837-58020iGSR50..RHD..GEN201204-201409

main89837-28020iACR50200601-200611

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

main89837-28021iACR50,GSR50200612-200705

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

main89837-28030iACR50,GSR50200706-200812

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

89839COVER, FRONT FLOOR SIDE AIRBAG SENSOR

main89839-28010iGSR50..RHD..GEN201204-201409

89839ACOVER, REAR FLOOR SIDE AIRBAG SENSOR

main89839-28020iGSR50..RHD..GEN201204-201409

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-28060iACR50..CVT..DLX;ACR50,GSR50..ATM..(ARL,GEN); ACR50..CVT..GL201605

SRS AIR BAG-*DRS & *PAS & *CUSA & SIDE & KNEE

main89831-42010iGSR50..RHD..GEN201204-201409

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-28060iACR50..CVT..DLX;ACR50,GSR50..ATM..(ARL,GEN); ACR50..CVT..GL201605

SRS AIR BAG-*DRS & *PAS & *CUSA & SIDE & KNEE

main89831-42010iGSR50..RHD..GEN201204-201409

89860BSENSOR ASSY, SIDE AIRBAG, RH, NO.2

main89831-28010iGSR50..RHD..GEN201204-201409

main89831-28060iACR50..AERAS201605-201906

89860CSENSOR ASSY, SIDE AIRBAG, LH, NO.2

main89831-28010iGSR50..RHD..GEN201204-201409

main89831-28060iACR50..AERAS201605-201906

9011908C48

main90119-08C48

9046709077

main90467-09077

9155380618

main91553-80618

9155380622

main91553-80622

91553A0625

main91553-A0625

9415180600

main94151-80600

19 parts on this diagram · 1 diagram in section
