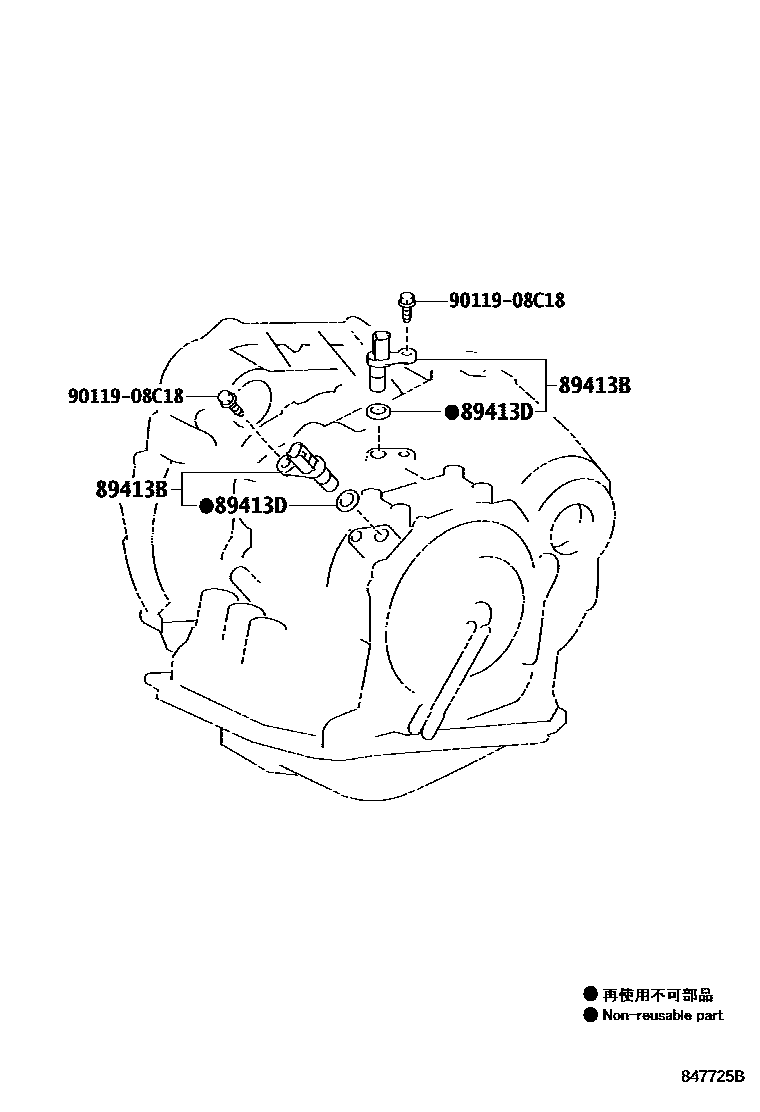

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1 0003 1

89413BSENSOR, TRANSMISSION REVOLUTION

main89413-24010×2iACR50..4FC..(GCC,GEN)201204-201605

main89413-28010×2iACR50..CVT..GL;ACR50..CVT..ARL; ACR50..DLX..GEN201204-201605

NO.1; SINGAPORE SPEC,NO.1

main89413-28011×2iACR50..CVT..(DLX,GL)201808

NO.1

main89413-33030iGSR50..LHD200812-201204

main89413-60020×3iACR50..(AERAS,DLX)..GEN; ACR50..CVT..GL;ACR50..CVT..ARL; ACR50..DLX..GEN201204-201605

NO.2; SINGAPORE SPEC,NO.2

main89413-60021iACR50..AERAS201808-201906

NO.2

89413DRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

main90301-11008×2iACR50200601-200812

9011908C18

main90119-08C18

3 parts on this diagram · 3 diagrams in section
