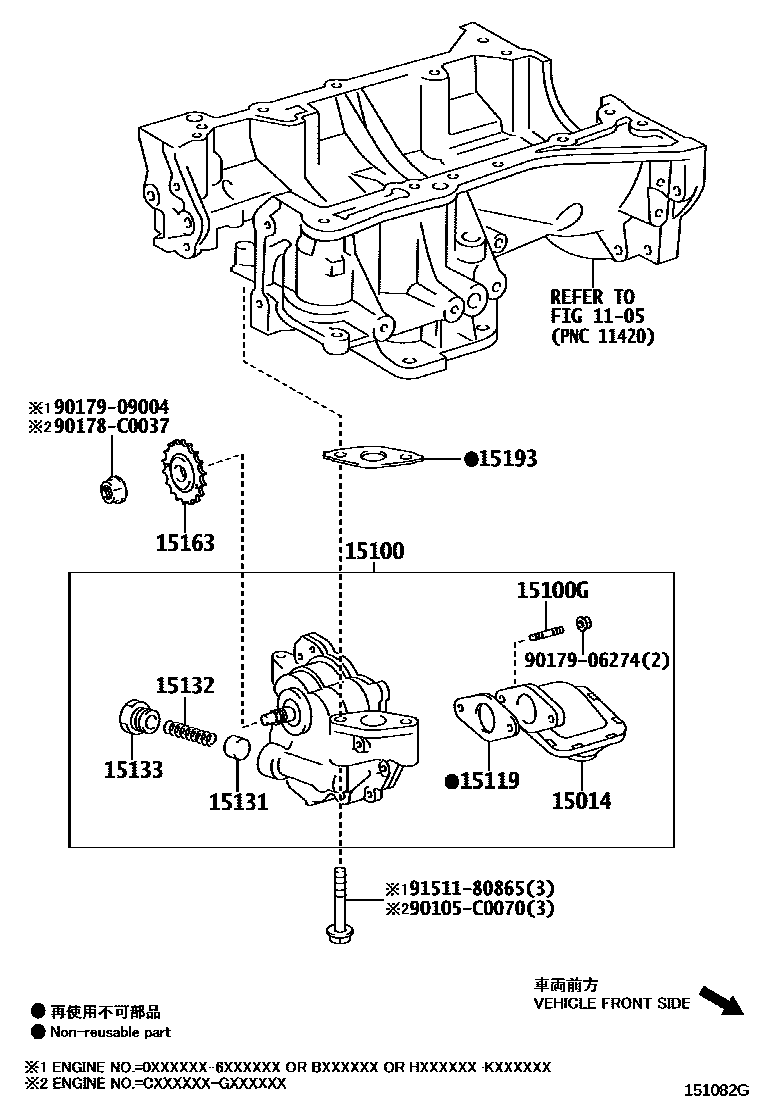

ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1

1105CYLINDER BLOCK

→ Go to FIG 11-05

15014STRAINER SET, OIL PUMP

main15014-28020i2AZFE..ACR50..GCC,GEN200812-201204

*195

main15014-0H060i2AZFE..ACR50..CVT201003-201204

2AZ-FE,(L),*194

15100PUMP ASSY, OIL

main15100-28020i2AZFE..ACR50200601-200812

*195

main15100-0H060i2AZFE..ACR50..(AERAS,DLX)..GEN201204-201605

2AZ-FE,*194

15100GBOLT,STUD(FOR OIL PUMP)

main15183-28020×2i2AZFE..ACR50..ARL200812-201205

*195

main15183-0H060×2i2AZFE..ACR50..(AERAS,DLX)..GEN201204-201605

2AZ-FE,*194

15119GASKET, OIL PUMP COVER

main15119-28020i2AZFE..ACR50..ARL200812-201205

*195

15131VALVE, OIL PUMP RELIEF

main15131-17010i2GRFE..GSR50..RHD200812-201205

main15131-46040i2AZFE..ACR50..DLX,GL201605

15132SPRING, OIL PUMP RELIEF VALVE

main15132-46020i2AZFE..ACR50200601-200812

*195

15133PLUG, OIL PUMP RELIEF VALVE

main15133-28020i2AZFE..ACR50..(AERAS,DLX)..GEN; 2AZFE..ACR50..CVT;2AZFE..ACR50..4FC..(GCC,GEN); 2GRFE..GSR50..ARL,GCC;2GRFE..GSR50..LHD..GEN201204-201605

*195; 2AZ-FE,*194; 2AZ-FE,*195

15163GEAR, OIL PUMP DRIVE SHAFT

main15163-28010i2AZFE..ACR50..ARL200812-201205

*195

main15163-0H050i2AZFE..ACR50..CVT201003-201204

2AZ-FE,(L),*194

15193GASKET, OIL PUMP

main15193-28010i2AZFE..ACR50200601-200812

*195

main15193-31020i2GRFE..GSR50..LHD200812-201204

main15193-0H030i2AZFE..ACR50..CVT201003-201204

2AZ-FE,(L),*194

90105C0070

main90105-C0070

90178C0037

main90178-C0037

9017906274

main90179-06274

9017909004

main90179-09004

9151180865

main91511-80865

15 parts on this diagram · 4 diagrams in section
