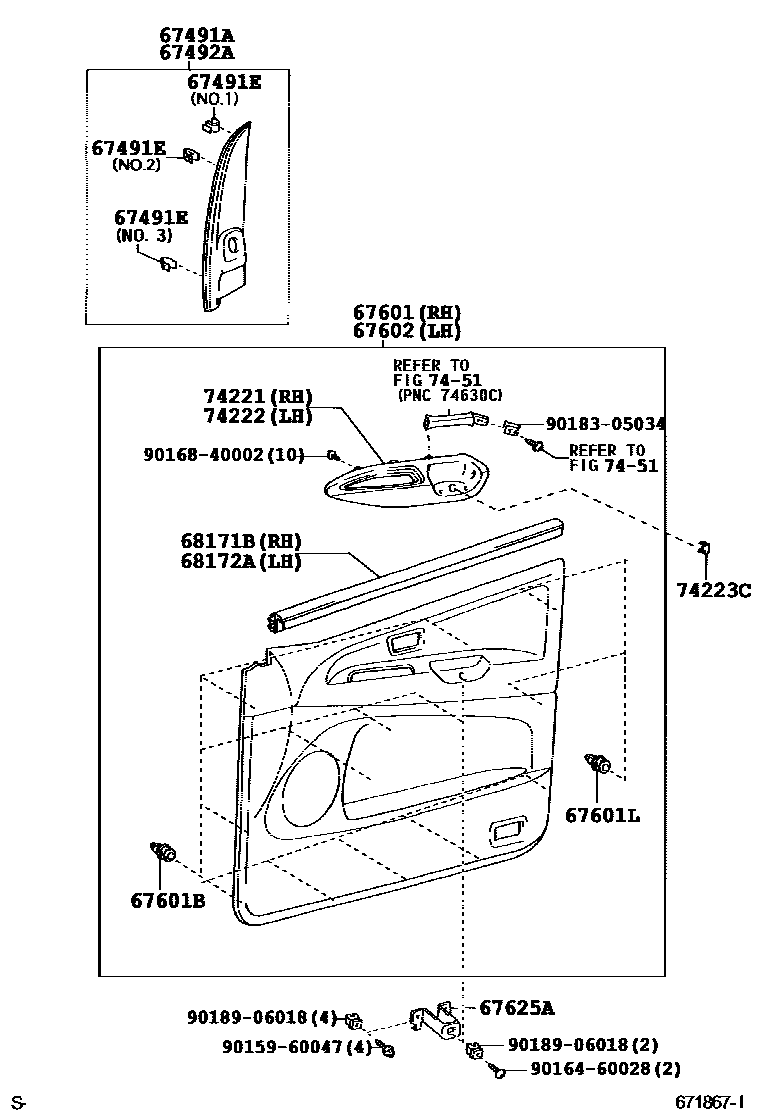

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1 0004 1

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-28040iACR30,CLR30200002-200304

main67491-28070iACR30,CLR30200304-200601

67491ERETAINER, DOOR TRIM

main67771-28080×2iACR30,CLR30200304-200601

NO.3

main67771-28090×2iACR30,CLR30200304-200601

NO.1

main67771-44010×2iACR30,CLR30200002-200304

NO.2

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-28040iACR30,CLR30200002-200304

main67492-28070iACR30,CLR30200304-200601

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-28A20-B0iACR30..GL..GCC200304-200309

DOOR TRIM=TYPE C-*104,DARK GRAY,TRIM1#

main67610-28A21-B0iACR30..GL..GCC200309-200403

DOOR TRIM=TYPE C-*104,DARK GRAY,TRIM1#

main67610-28A21-B1iACR30..GL..GCC200403-200601

DOOR TRIM=TYPE C-*104,DARK GRAY,TRIM15

main67610-28A50-B0iACR30..GL..GCC200304-200309

DOOR TRIM=TYPE C-*104 & W(WOOD GRAIN),DARK GRAY,TRIM1#

main67610-28A51-B0iACR30..GL..GCC200309-200601

DOOR TRIM=TYPE C-*104 & W(WOOD GRAIN),DARK GRAY,TRIM1#

main67610-28A60-B0iACR30,CLR30..EUR200304-200309

DOOR TRIM=TYPE A-*104 & W(WOOD GRAIN),DARK GRAY,TRIM1#

main67610-28A61-B0iACR30..08S..ATM..EUR200309-200405

DOOR TRIM=TYPE A-*104 & W(WOOD GRAIN),DARK GRAY,TRIM1#

main67610-28A90-B0iACR30,CLR30..(06S,07S)..(ARL,EUR,GEN)200304-200309

DOOR TRIM=TYPE D-*104 & W(WOOD GRAIN),DARK GRAY,TRIM1#

main67610-28A91-B0iACR30,CLR30..(06S,07S)..(ARL,EUR,GEN)200312-200502

DOOR TRIM=TYPE D-*104 & W(WOOD GRAIN),DARK GRAY,TRIM1#

main67610-28A92-B0iACR30,CLR30..(06S,07S)..(ARL,EUR,GEN)200502-200601

DOOR TRIM=TYPE D-*104 & W(WOOD GRAIN),DARK GRAY,TRIM1#

main67610-28B20-B0iACR30..DX..GCC;ACR30..GL..(ARL,GEN);ACR30..RHD..ATM..EUR200304-200309

DOOR TRIM=TYPE B-*104 & W(WOOD GRAIN),DARK GRAY,TRIM1#

main67610-28B21-B0iACR30..DX..GCC;ACR30..GL..(ARL,GEN);ACR30..RHD..ATM..EUR200309-200601

DOOR TRIM=TYPE B-*104 & W(WOOD GRAIN),DARK GRAY,TRIM1#

main67610-2J010-B0iACR30..DX200002-200102

DOOR TRIM=TYPE A-*104,LT.BLUISH GRAY,TRIM11

main67610-2J010-B2iACR30,CLR30..DX..(ARL,EUR,GEN)200002-200304

DOOR TRIM=TYPE A-*104,MD.CHARCOAL,TRIM12

main67610-2J010-B5iACR30,CLR30..DX..(ARL,EUR,GEN)200102-200304

DOOR TRIM=TYPE A-*104,LT. BLUISH GRAY,TRIM11

main67610-2J010-B6iACR30,CLR30..DX..(ARL,EUR)200304-200309

DOOR TRIM=TYPE A-*104,DARK GRAY,TRIM1#

main67610-2J011-B0iACR30..DX..ARL;ACR30,CLR30..(06S,07S)..EUR200309-200403

DOOR TRIM=TYPE A-*104,DARK GRAY,TRIM1#

main67610-2J011-B2iACR30..DX..ARL;ACR30,CLR30..(06S,07S)..EUR200403-200601

DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM15

main67610-2J020-B0iACR30..GL..GEN;ACR30..DX..GCC;ACR30..RHD..07S..ATM200002-200304

DOOR TRIM=TYPE B-*104,LT.BLUISH GRAY,TRIM11

main67610-2J020-B1iACR30..GL..GEN;ACR30..DX..GCC;ACR30..RHD..07S..ATM200002-200304

DOOR TRIM=TYPE B-*104,MD.CHARCOAL,TRIM12

main67610-2J030-B6iACR30..LHD..07S..ATM..(EUR,GCC)200110-200304

DOOR TRIM=TYPE C-*104 & W(WOOD GRAIN),LT.BLUISH GRAY,TRIM11

main67610-2J030-B7iACR30..LHD..07S..ATM..(EUR,GCC)200110-200304

DOOR TRIM=TYPE C-*104 & W(WOOD GRAIN),MD.CHARCOAL,TRIM12

main67610-2J050-B0iACR30,CLR30..(06S,07S)..EUR200102-200304

DOOR TRIM=TYPE G-*104,LT. BLUISH GRAY,TRIM1#

main67610-2J050-B1iACR30,CLR30..(06S,07S)..(ARL,EUR,GEN)200304-200309

DOOR TRIM=TYPE D-*104,DARK GRAY,TRIM1#

main67610-2J051-B0iACR30,CLR30..(06S,07S)..(ARL,EUR,GEN)200309-200403

DOOR TRIM=TYPE D-*104,DARK GRAY,TRIM1#

main67610-2J051-B1iACR30,CLR30..(06S,07S)..(ARL,EUR,GEN)200403-200601

DOOR TRIM=TYPE D-*104,DK.GRAY,TRIM15

main67610-2J060-B2iACR30,CLR30..DX..(EUR,GEN)200102-200304

DOOR TRIM=TYPE A-*104 & W(WOOD GRAIN),LT.BLUISH GRAY,TRIM11

main67610-2J060-B3iACR30,CLR30..DX..(EUR,GEN)200102-200304

DOOR TRIM=TYPE A-*104 & W(WOOD GRAIN),CHARCOAL,TRIM12

main67610-2J070-B2iACR30..GL..GEN;ACR30..DX..GCC;ACR30..RHD..07S..ATM200102-200304

DOOR TRIM=TYPE B-*104 & W(WOOD GRAIN),LT.BLUISH GRAY,TRIM11

main67610-2J070-B3iACR30..GL..GEN;ACR30..DX..GCC;ACR30..RHD..07S..ATM200102-200304

DOOR TRIM=TYPE B-*104 & W(WOOD GRAIN),CHACOAL,TRIM12

main67610-2J080-B1iACR30,CLR30..(06S,07S)..EUR200102-200304

DOOR TRIM=TYPE G-*104 & W(WOOD GRAIN),LT.BLUISH GRAY,TRIM1#

main67610-2J120-B0iACR30..GL..GCC200105-200110

DOOR TRIM=TYPE C-*104,LT.BLUISH GRAY,TRIM11

main67610-2J120-B1iACR30..LHD..07S..ATM..(EUR,GCC)200110-200304

DOOR TRIM=TYPE C-*104,CHARCOAL,TRIM12

main67610-2J130-B2iACR30..DX..GCC;ACR30..GL..(ARL,GEN);ACR30..RHD..ATM..EUR200304-200309

DOOR TRIM=TYPE B-*104,DARK GRAY,TRIM1#

main67610-2J131-B0iACR30..DX..GCC;ACR30..GL..(ARL,GEN);ACR30..RHD..ATM..EUR200309-200403

DOOR TRIM=TYPE B-*104,DARK GRAY,TRIM1#

main67610-2J131-B1iACR30..DX..GCC;ACR30..GL..(ARL,GEN);ACR30..RHD..ATM..EUR200403-200601

DOOR TRIM=TYPE B-*104,DK.GRAY,TRIM15

67601BCLIP(FOR FRONT DOOR TRIM BOARD)

main90467-09206×26iACR30..08S..ATM;ACR30,CLR30..06S,07S200304-200403

67601LCLIP(FOR FRONT DOOR TRIM BOARD)

main90467-09203×4iACR30,CLR30200403-200601

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-28A00-B0iACR30..GL..GCC200304-200309

DOOR TRIM=TYPE C-*104,DARK GRAY,TRIM1#

main67620-28A01-B0iACR30..GL..GCC200309-200403

DOOR TRIM=TYPE C-*104,DARK GRAY,TRIM1#

main67620-28A01-B1iACR30..GL..GCC200403-200601

DOOR TRIM=TYPE C-*104,DARK GRAY,TRIM15

main67620-28A50-B0iACR30..GL..GCC200304-200309

DOOR TRIM=TYPE C-*104 & W(WOOD GRAIN),DARK GRAY,TRIM1#

main67620-28A51-B0iACR30..GL..GCC200312-200601

DOOR TRIM=TYPE C-*104 & W(WOOD GRAIN),DARK GRAY,TRIM1#

main67620-28A60-B0iACR30,CLR30..EUR200304-200309

DOOR TRIM=TYPE A-*104 & W(WOOD GRAIN),DARK GRAY,TRIM1#

main67620-28A61-B0iACR30..08S..ATM..EUR200309-200405

DOOR TRIM=TYPE A-*104 & W(WOOD GRAIN),DARK GRAY,TRIM1#

main67620-28A90-B0iACR30,CLR30..(06S,07S)..(ARL,EUR,GEN)200304-200309

DOOR TRIM=TYPE D-*104 & W(WOOD GRAIN),DARK GRAY,TRIM1#

main67620-28A91-B0iACR30,CLR30..(06S,07S)..(ARL,EUR,GEN)200312-200502

DOOR TRIM=TYPE D-*104 & W(WOOD GRAIN),DARK GRAY,TRIM1#

main67620-28A92-B0iACR30,CLR30..(06S,07S)..(ARL,EUR,GEN)200502-200601

DOOR TRIM=TYPE D-*104 & W(WOOD GRAIN),DARK GRAY,TRIM1#

main67620-28B20-B0iACR30..DX..GCC;ACR30..GL..(ARL,GEN);ACR30..RHD..ATM..EUR200304-200309

DOOR TRIM=TYPE B-*104 & W(WOOD GRAIN),DARK GRAY,TRIM1#

main67620-28B21-B0iACR30..DX..GCC;ACR30..GL..(ARL,GEN);ACR30..RHD..ATM..EUR200309-200601

DOOR TRIM=TYPE B-*104 & W(WOOD GRAIN),DARK GRAY,TRIM1#

main67620-2J010-B0iACR30..DX200002-200102

DOOR TRIM=TYPE A-*104,LT.BLUISH GRAY,TRIM11

main67620-2J010-B2iACR30,CLR30..DX..(ARL,EUR,GEN)200002-200304

DOOR TRIM=TYPE A-*104,MD.CHARCOAL,TRIM12

main67620-2J010-B5iACR30,CLR30..DX..(ARL,EUR,GEN)200102-200304

DOOR TRIM=TYPE A-*104,LT. BLUISH GRAY,TRIM11

main67620-2J010-B6iACR30,CLR30..DX..(ARL,EUR)200304-200309

DOOR TRIM=TYPE A-*104,DARK GRAY,TRIM1#

main67620-2J011-B0iACR30,CLR30..08S..EUR200309-200405

DOOR TRIM=TYPE A-*104,DARK GRAY,TRIM1#

main67620-2J011-B2iACR30..DX..ARL;ACR30,CLR30..(06S,07S)..EUR200403-200601

DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM15

main67620-2J020-B0iACR30..GL..GEN;ACR30..DX..GCC;ACR30..RHD..07S..ATM200002-200304

DOOR TRIM=TYPE B-*104,LT.BLUISH GRAY,TRIM11

main67620-2J020-B1iACR30..GL..GEN;ACR30..DX..GCC;ACR30..RHD..07S..ATM200002-200304

DOOR TRIM=TYPE B-*104,MD.CHARCOAL,TRIM12

main67620-2J030-B6iACR30..LHD..07S..ATM..(EUR,GCC)200110-200304

DOOR TRIM=TYPE C-*104 & W(WOOD GRAIN),LT.BLUISH GRAY,TRIM11

main67620-2J030-B7iACR30..GL..GCC200105-200110

DOOR TRIM=TYPE C-*104 & W(WOOD GRAIN),MD.CHARCOAL,TRIM12

main67620-2J050-B0iACR30,CLR30..(06S,07S)..EUR200102-200304

DOOR TRIM=TYPE G-*104,LT. BLUISH GRAY,TRIM1#

main67620-2J050-B1iACR30,CLR30..(06S,07S)..(ARL,EUR,GEN)200304-200309

DOOR TRIM=TYPE D-*104,DARK GRAY,TRIM1#

main67620-2J051-B0iACR30,CLR30..(06S,07S)..(ARL,EUR,GEN)200309-200403

DOOR TRIM=TYPE D-*104,DARK GRAY,TRIM1#

main67620-2J051-B1iACR30,CLR30..(06S,07S)..(ARL,EUR,GEN)200403-200601

DOOR TRIM=TYPE D-*104,DK.GRAY,TRIM15

main67620-2J060-B2iACR30,CLR30..DX..(EUR,GEN)200102-200304

DOOR TRIM=TYPE A-*104 & W(WOOD GRAIN),LT.BLUISH GRAY,TRIM11

main67620-2J060-B3iACR30,CLR30..DX..(EUR,GEN)200102-200304

DOOR TRIM=TYPE A-*104 & W(WOOD GRAIN),CHARCOAL,TRIM12

main67620-2J070-B2iACR30..GL..GEN;ACR30..DX..GCC;ACR30..RHD..07S..ATM200102-200304

DOOR TRIM=TYPE B-*104 & W(WOOD GRAIN),LT.BLUISH GRAY,TRIM11

main67620-2J070-B3iACR30..GL..GEN;ACR30..DX..GCC;ACR30..RHD..07S..ATM200102-200304

DOOR TRIM=TYPE B-*104 & W(WOOD GRAIN),CHARCOAL,TRIM12

main67620-2J080-B1iACR30,CLR30..(06S,07S)..EUR200102-200304

DOOR TRIM=TYPE G-*104 & W(WOOD GRAIN),LT.BLUISH GRAY,TRIM1#

main67620-2J120-B0iACR30..GL..GCC200105-200110

DOOR TRIM=TYPE C-*104,LT.BLUISH GRAY,TRIM11

main67620-2J120-B1iACR30..LHD..07S..ATM..(EUR,GCC)200110-200304

DOOR TRIM=TYPE C-*104,CHARCOAL,TRIM12

main67620-2J130-B2iACR30..DX..GCC;ACR30..GL..(ARL,GEN);ACR30..RHD..ATM..EUR200304-200309

DOOR TRIM=TYPE B-*104,DARK GRAY,TRIM1#

main67620-2J131-B0iACR30..DX..GCC;ACR30..GL..(ARL,GEN);ACR30..RHD..ATM..EUR200309-200403

DOOR TRIM=TYPE B-*104,DARK GRAY,TRIM1#

main67620-2J131-B1iACR30..DX..GCC;ACR30..GL..(ARL,GEN);ACR30..RHD..ATM..EUR200403-200601

DOOR TRIM=TYPE B-*104,DK.GRAY,TRIM15

67625ABRACKET, FRONT DOOR TRIM, NO.1

main67625-28040×2iACR30,CLR30200002-200304

68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH

main68171-28050iACR30,CLR30200002-200304

main68171-28051iACR30,CLR30200312-200601

68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH

main68172-28040iACR30,CLR30200002-200304

main68172-28041iACR30,CLR30200312-200601

74221COVER, DOOR ARMREST, RH

main74221-28010-B0iACR30,CLR30200002-200304

BLUISH GRAY,TRIM11

main74221-28010-B1iACR30,CLR30200002-200304

DK.CHARCOAL,TRIM12

main74221-28010-B2iACR30,CLR30200304-200601

DK.GRAY,TRIM1#

main74221-28030iACR30..GL..ARL;ACR30,CLR30..EUR,GCC,GEN200102-200304

W(WOOD GRAIN)

74222COVER, DOOR ARMREST, LH

main74222-28010-B0iACR30,CLR30200002-200304

BLUISH GRAY,TRIM11

main74222-28010-B1iACR30,CLR30200002-200304

DK.CHARCOAL,TRIM12

main74222-28010-B2iACR30,CLR30200304-200601

DK.GRAY,TRIM1#

main74222-28030iACR30..GL..ARL;ACR30,CLR30..EUR,GCC,GEN200102-200304

W(WOOD GRAIN)

74223CCAP, DOOR ARMREST

main74223-28020-B0×2iACR30,CLR30200002-200304

BLUISH GRAY,TRIM11

main74223-28020-B1×2iACR30,CLR30200002-200304

DK.CHARCOAL,TRIM12

main74223-28020-B2×2iACR30..DX..GCC;ACR30,CLR30..ARL,EUR,GEN200304-200601

DK.GRAY,TRIM1#

main74223-28040×2iACR30..GL..ARL;ACR30,CLR30..EUR,GCC,GEN200102-200304

W(WOOD GRAIN)

7451ARMREST & VISOR

→ Go to FIG 74-51

9015960047

main90159-60047

9016460028

main90164-60028

9016840002

main90168-40002

9018305034

main90183-05034

9018906018

main90189-06018

19 parts on this diagram · 4 diagrams in section
