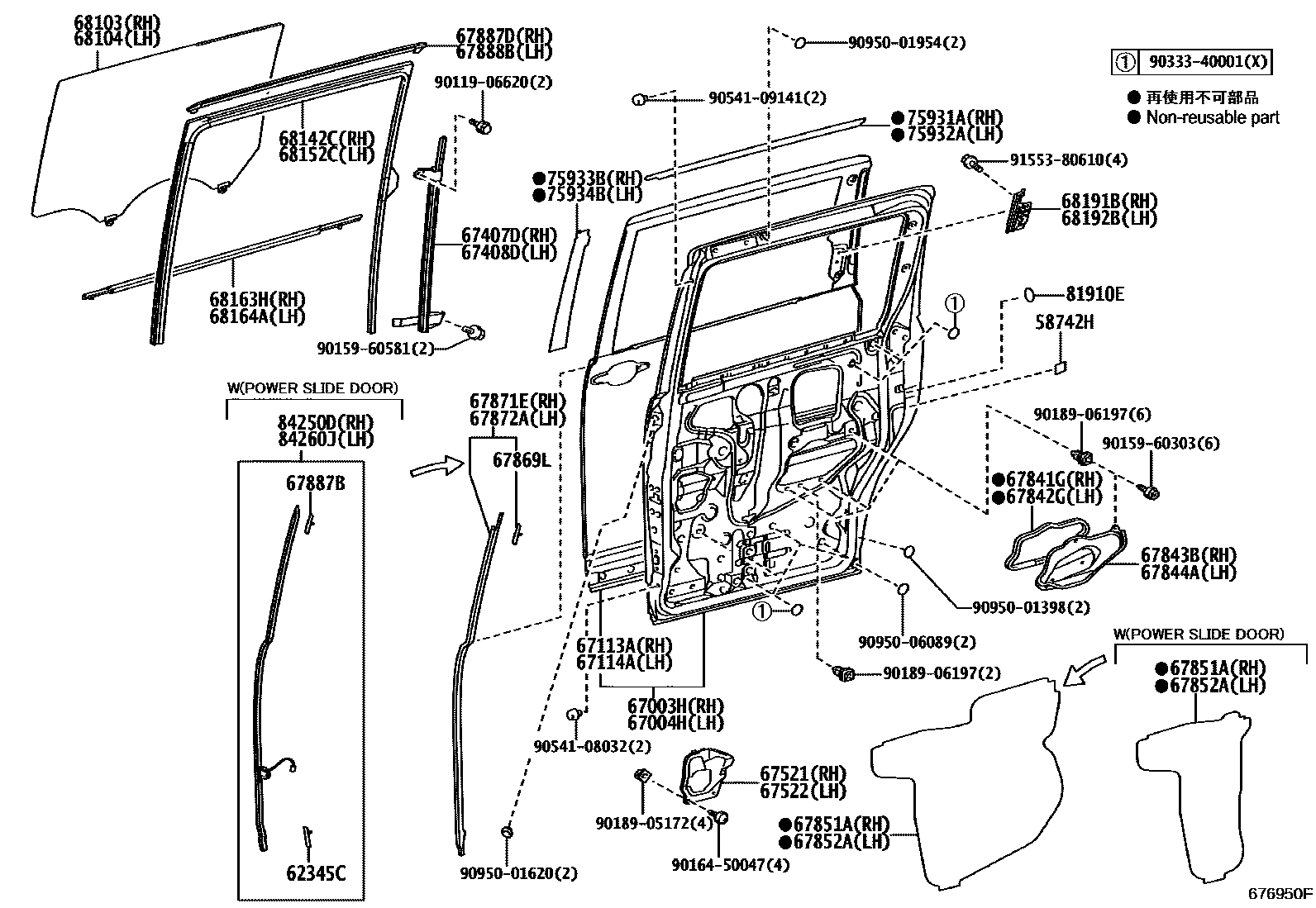

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR PANEL 0003 1DOOR TRIM

58742HPROTECTOR, SLIDE DOOR, LH

main58743-28020iZRR70..IDN200808-201401

62345CCLIP(FOR WEATHERSTRIP, SLIDE DOOR)

main67869-28030iZRR70..S201004-201401

RH

main67869-28040iZRR70..S201004-201401

LH

67003HDOOR SUB-ASSY, SLIDE, RH

main67003-28510iZRR70200808-201401

main67003-28530iZRR70..IDN201212

main67003-28540iZRR70..S201004-201401

67004HDOOR SUB-ASSY, SLIDE, LH

main67004-28420iZRR70200808-201004

main67004-28510iZRR70..IDN201004-201401

main67004-28520iZRR70..S201004-201401

67113APANEL, SLIDE DOOR, OUTER RH

main67113-28150iZRR70200808-201612

main67113-28160iZRR70..S201004-201401

67114APANEL, SLIDE DOOR, OUTER LH

main67114-28140iZRR70200808-201612

67407DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH

main67407-28040iZRR70200808-201401

67408DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH

main67408-28070iZRR70200808-201401

67521COVER SUB-ASSY, SLIDE DOOR PANEL, RH

main67521-28050iZRR70200808-201401

67522COVER SUB-ASSY, SLIDE DOOR PANEL, LH

main67522-28040iZRR70200808-201401

67841GCOVER, SLIDE DOOR SERVICE HOLE, RH

main67846-28010iZRR70..S201004-201401

67842GCOVER, SLIDE DOOR SERVICE HOLE, LH

main67846-28010iZRR70..GEN201004-201401

67843BCOVER, REAR DOOR SERVICE HOLE, NO.2 RH

main67843-28020iZRR70..S201004-201401

67844ACOVER, REAR DOOR SERVICE HOLE, NO.2 LH

main67844-28020iZRR70..GEN201004-201401

67851ACOVER, SLIDE DOOR SERVICE HOLE, NO.1

main67851-28110iZRR70200808-201401

main67851-28120iZRR70..S201004-201401

67852ACOVER, SLIDE DOOR SERVICE HOLE, NO.2

main67852-28130iZRR70200808-201004

main67852-28140iZRR70..GEN201004-201401

67869LCLIP, REAR DOOR WEATHERSTRIP

main67869-28010iZRR70200808-201401

67871EWEATHERSTRIP, SLIDE DOOR, NO.1 RH

main67865-28041iZRR70200808-201203

main67865-28050iZRR70..E..GEN201204-201401

67872AWEATHERSTRIP, SLIDE DOOR, NO.1 LH

main67866-28021iZRR70200808-201004

67887BCLIP(FOR REAR DOOR WEATHERSTRIP)

main67869-28010iZRR70..E..GEN201004-201401

67887DWEATHERSTRIP, SLIDE DOOR, NO.2 RH

main67887-28101iZRR70200808-200809

main67887-28102iZRR70200809-201401

67888BWEATHERSTRIP, SLIDE DOOR, NO.2 LH

main67888-28111iZRR70200808-200809

main67888-28112iZRR70200809-201401

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-28240iZRR70200808-201102

*UVCT,T=3.5,GREEN

main68103-28241iZRR70201102-201203

*UVCT,T=3.5,GREEN

main68103-28242iZRR70201204-201612

*UVCT,T=3.5,GREEN

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-28260iZRR70200808-201102

*UVCT,T=3.5,GREEN

main68104-28261iZRR70201102-201203

*UVCT,T=3.5,GREEN

main68104-28262iZRR70201204-201612

*UVCT,T=3.5,GREEN

68142CRUN, REAR DOOR GLASS, RH

main68142-28120iZRR70200808-201401

68152CRUN, REAR DOOR GLASS, LH

main68152-28090iZRR70200808-201401

68163HWEATHERSTRIP, REAR DOOR GLASS, OUTER RH

main68163-28050iZRR70200808-201401

68164AWEATHERSTRIP, REAR DOOR GLASS, OUTER LH

main68164-28050iZRR70200808-201401

68191BRUN, REAR DOOR GLASS, NO.2 RH

main68191-28010iZRR70200808-201401

68192BRUN, REAR DOOR GLASS, NO.2 LH

main68192-28010iZRR70200808-201401

75931ATAPE, BLACK OUT, OUTER UPPER RH

main75931-28040iZRR70200808-201401

75932ATAPE, BLACK OUT, OUTER UPPER LH

main75932-28040iZRR70200808-201401

75933BTAPE, BLACK OUT, OUTER FRONT RH

main75933-28040iZRR70200808-201401

75934BTAPE, BLACK OUT, OUTER FRONT LH

main75934-28040iZRR70200808-201401

81910EREFLECTOR ASSY, REFLEX

main81910-21030iZRR70200808-201401

84250DSENSOR ASSY, POWER SLIDE DOOR, RH

main84250-28270iZRR70..S;ZRR70..IDN201004

84260JSENSOR ASSY, POWER SLIDE DOOR, LH

main84260-28080iZRR70201004

9011906620

main90119-06620

9015960303

main90159-60303

9015960581

main90159-60581

9016450047

main90164-50047

9018905172

main90189-05172

9018906197

main90189-06197

9033340001

main90333-40001

9054108032

main90541-08032

9054109141

main90541-09141

9095001398

main90950-01398

9095001620

main90950-01620

9095001954

main90950-01954

9095006089

main90950-06089

9155380610

main91553-80610

51 parts on this diagram · 3 diagrams in section
