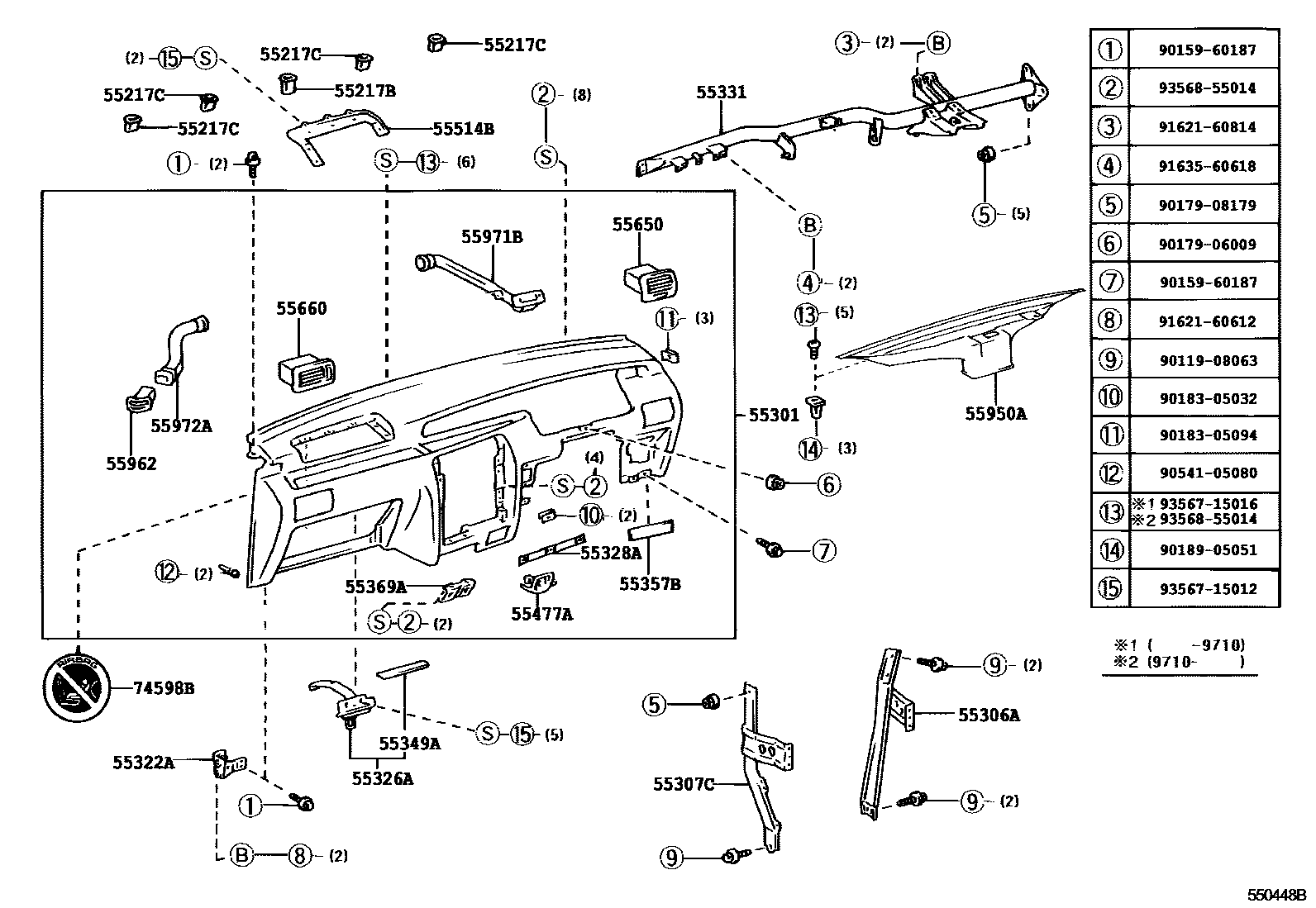

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1

55217BRETAINER, DASH PANEL SILENCER

main55217-28010iCR42199812-200412

55217CRETAINER, DASH PANEL SILENCER, NO.2

main55217-28020×4iCR41,KR4#,SR40199611-199812

55301PANEL SUB-ASSY, INSTRUMENT

main55301-28230-B0iCR41,KR4#,SR40199611-199801

MD.MOON MIST,TRIM1#

main55301-28240-B0iCR41,KR4#,SR40199801-199806

MD.MOON MIST,TRIM1#

main55301-28280-B0iKR42..ARL199812-200008

MD.MOON MIST,TRIM1#

main55301-28290-B0iCR41,KR4#,SR40199806-199812

MD.MOON MIST,TRIM1#

main55301-28300-B0iKR42..ARL199812-200310

W(*80,DRIVER SIDE & PASSENGER SIDE),MD.MOON MIST,TRIM1#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-28090iCR41,KR4#,SR40199611-199812

main55306-28130iSR40199812-200111

main55306-28140iCR42199812-200412

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-28050iCR41,KR4#,SR40199611-199812

main55307-28110iCR41199812-200112

55322ABRACKET, INSTRUMENT PANEL, NO.2

main55322-28060iCR41,KR4#,SR40199611-199812

55326ASTAY, INSTRUMENT PANEL, NO.1

main55031-28020iCR41,KR4#,SR40199611-199812

55328ASTAY, INSTRUMENT PANEL, NO.3

main55328-28020iCR41,KR4#,SR40199708-199812

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-28030iCR41,KR4#;SR40..GEN199611-199812

main55330-28040iSR40..ARL199710-199801

main55330-28070iKR42,SR40..02S,08S199801-199812

W(*80)

main55330-28080iKR42..ARL199812-200008

W(*80,DRIVER SIDE)

main55330-28081iKR42..GEN200208-200310

main55330-28090iKR42..ARL199812-200208

W(*80,DRIVER SIDE & PASSENGER SIDE)

main55330-28091iKR42..ARL200208-200310

55349ACUSHION, INSTRUMENT PANEL

main55349-28080iCR41,KR4#,SR40199611-199812

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-28010×2iCR41,KR4#,SR40199611-199812

55369ABRACKET, ASH RECEPTACLE MOUNTING

main55369-28010iCR41,KR4#,SR40199611-199812

55477ABEZEL, CIGARETTE LIGHTER HOLE

main55477-28050iCR41,KR4#,SR40199611-199812

55514BRETAINER, AIRBAG PASSENGER DOOR

main55514-28020iSR40199611-199801

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-28070-B0iCR41,KR4#,SR40199611-199812

MD.MOON MIST,TRIM1#

main55650-28080-B0iSR40199812-200111

MD.MOON MIST,TRIM1#

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-28070-B0iCR41,KR4#,SR40199611-199812

MD.MOON MIST,TRIM1#

main55660-28090-B0iSR40199812-200111

MD.MOON MIST,TRIM1#

55950ANOZZLE ASSY, DEFROSTER

main55950-28050iCR41,KR4#,SR40199611-199708

main55950-28060iCR41,KR4#,SR40199708-199808

main55950-28080iCR41,KR4#,SR40199808-199811

main55950-28090iCR41,KR4#,SR40199811-199812

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-28020-B0iCR41,KR4#,SR40199611-199812

MD.MOON MIST,TRIM1#

55971BDUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-28030iCR41,KR4#,SR40199611-199812

main55971-28040iSR40199812-200111

55972ADUCT, SIDE DEFROSTER NOZZLE, NO.2

main55972-28030iCR41,KR4#,SR40199611-199812

main55972-28040iCR41199812-200112

74598BLABEL, PASSENGER AIRBAG CAUTION

main74598-20010iSR40199710-199801

9011908063

main90119-08063

9015960187

main90159-60187

9017906009

main90179-06009

9017908179

main90179-08179

9018305032

main90183-05032

9018305094

main90183-05094

9018905051

main90189-05051

9054105080

main90541-05080

9162160612

main91621-60612

9162160814

main91621-60814

9163560618

main91635-60618

9356715012

main93567-15012

9356715016

main93567-15016

9356855014

main93568-55014

35 parts on this diagram · 4 diagrams in section
