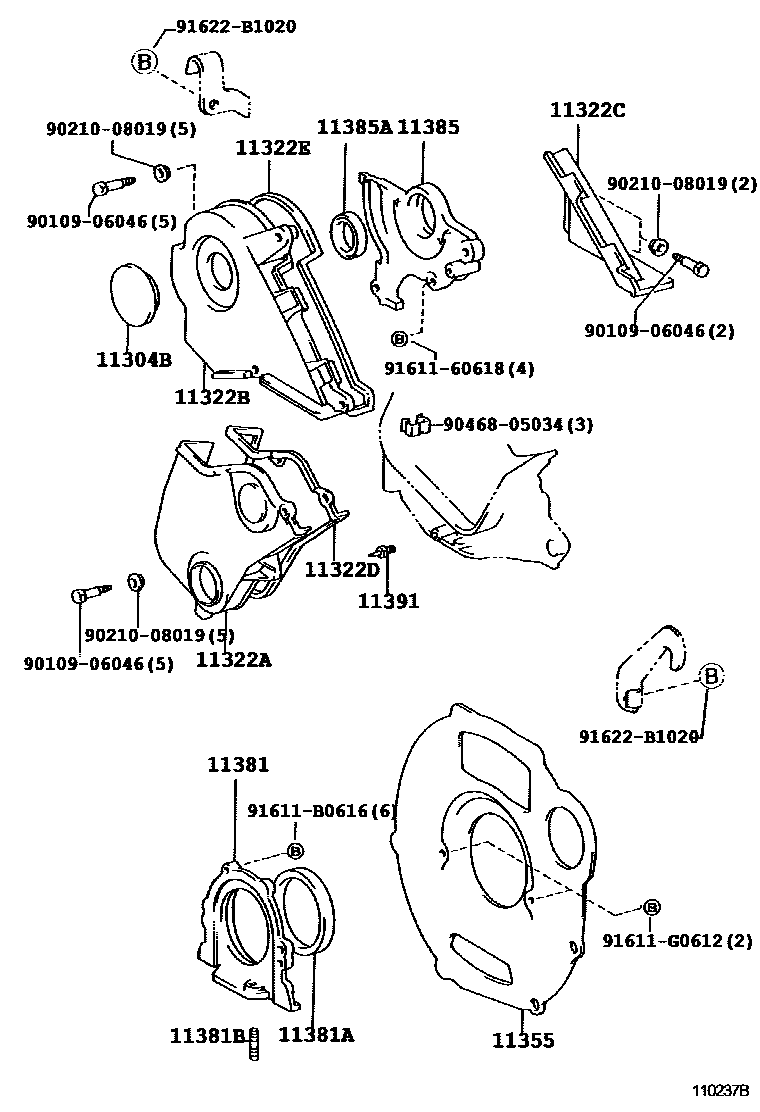

TIMING GEAR COVER & REAR END PLATE
11304COVER, TIMING CHAIN OR BELT, NO.2
11304BPLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2)
OD=64
OD=33
11322ACOVER, TIMING BELT, NO.1
11322BCOVER, TIMING BELT, NO.2
11322CCOVER, TIMING BELT, NO.3
11322DGASKET, TIMING BELT COVER, NO.1
11322EGASKET, TIMING BELT COVER, NO.2
11355PLATE, REAR END
11381RETAINER, ENGINE REAR OIL SEAL
11381ASEAL, ENGINE REAR OIL
11381BBOLT, STUD(FOR ENGINE REAR OIL SEAL RETAINER)
11385RETAINER, CAMSHAFT OIL SEAL
11385ASEAL, OIL(FOR CAMSHAFT)
11391POINTER, TIMING
9010906046
main90109-06046
9021008019
main90210-08019
9046805034
main90468-05034
9161160618
main91611-60618
91611B0616
main91611-B0616
91611G0612
main91611-G0612
91622B1020
main91622-B1020
21 parts on this diagram · 3 diagrams in section
