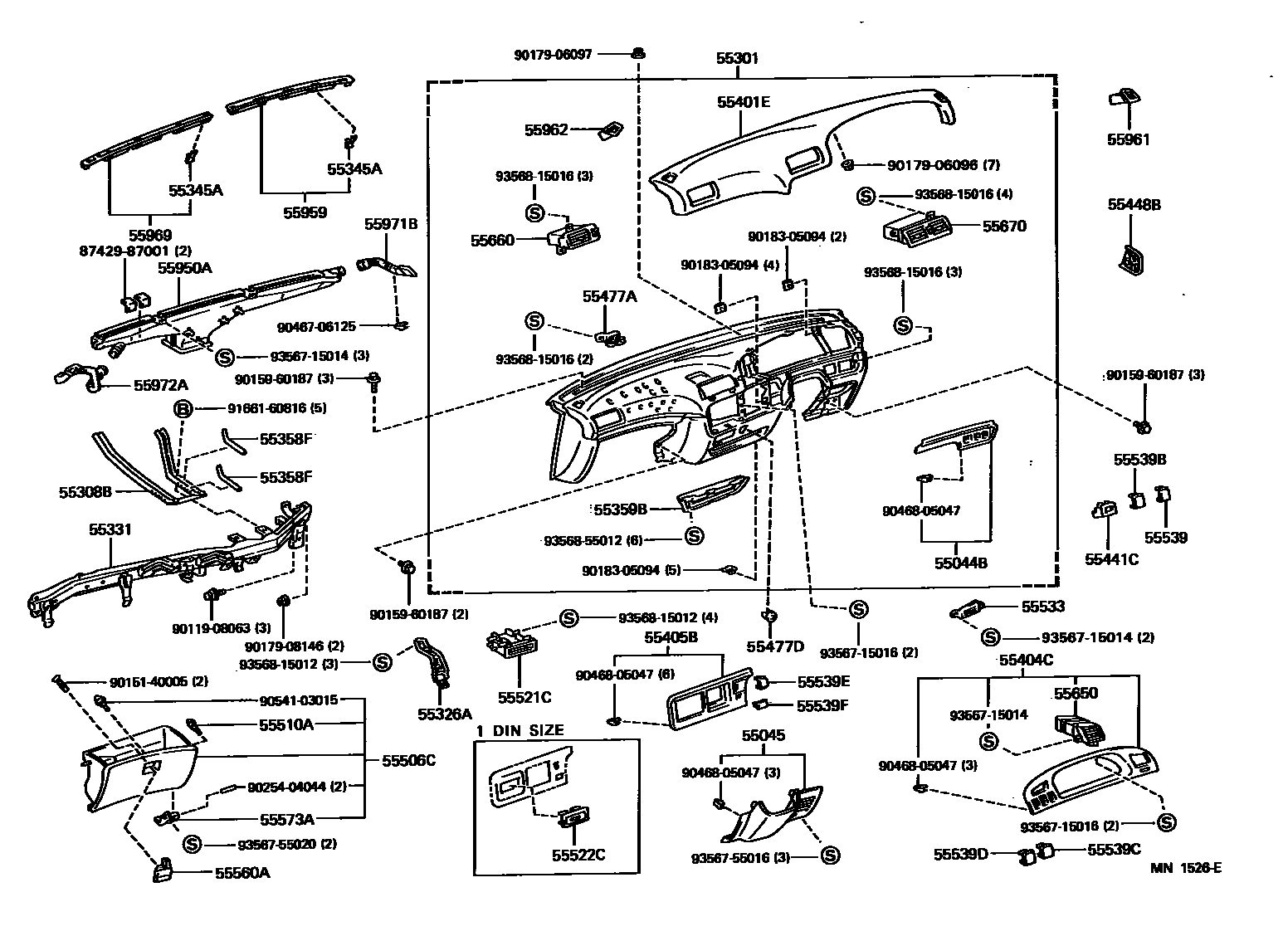

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55044BPANEL SUB-ASSY, INSTRUMENT PANEL FINISH, UPPER

main55044-28010iCR27,KR27,YR22,39..RHD199201-199610

55045PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER

main55045-28030-B0iCR27,KR27,YR22,39..RHD..STD199201-199610

GRAY,TRIM1#

main55045-28040-B0iYR22..DX199201-199309

GRAY,TRIM1#

main55432-87005-B0iYR21199201-200007

GRAY,TRIM1#

main55432-87006-B0iCR27,KR2#..LHD199201-199610

GRAY,TRIM1#

55301PANEL SUB-ASSY, INSTRUMENT

main55301-28060-B0iCR27,KR27,YR22,39..RHD199201-199306

GRAY,TRIM1#

main55301-28120-B0iCR27,KR2#..LHD199201-199610

GRAY,TRIM1#

main55301-28140-B0iYR21199201-200007

BLACK,TRIM1#

main55301-28160-B0iCR27,KR27,YR22,39..RHD199306-199610

GRAY,TRIM1#

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-28030iCR27,KR27,YR22,39..RHD199201-199610

55326ASTAY, INSTRUMENT PANEL, NO.1

main55031-28010iCR27,KR27,YR22,39..RHD199201-199610

main55326-28050iCR27,KR2#,YR21..LHD199201-200007

55331REINFORCEMENT, INSTRUMENT PANEL

main55305-28080iCR27,KR2#,YR21..LHD199201-200007

main55330-28010iCR27,KR27,YR22,39..RHD199201-199610

55345ACLIP, INSTRUMENT PANEL, NO.1

main55345-28010×9iCR27,KR27,YR22,39..RHD199201-199309

55358FPROTECTOR, EDGE

main55358-28010×2iCR27,KR2#,YR21..LHD199201-199209

main82817-28590×2iCR27,KR27,YR22,39..RHD199201-199610

main82991-87001×2iCR27,KR2#,YR21..LHD199209-200007

55359BBOX, INSTRUMENT PANEL, CENTER

main55359-28010iCR27,KR27,YR22,39..RHD199201-199306

main55359-28020iCR27,KR27,YR22,39..RHD199306-199610

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-28050-B0iCR27,KR27,YR22,39..RHD199201-199610

GRAY,TRIM1#

main55401-28060-B0iCR27,KR2#,YR21..LHD199201-200007

GRAY,TRIM1#

55404CPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2

main55404-28040-B0iCR27,KR27,YR22,39..RHD199201-199309

GRAY,TRIM1#

main55404-28050iCR27,KR2#..LHD; YR21199201-199309

W(DIGITAL CLOCK)

main55404-28060iCR27,KR2#..LHD199201-199309

main55404-28070-B0iCR27,KR27,YR22,39..RHD199309-199610

GRAY,TRIM1#

main55404-28080iYR21199309-200007

main55404-28090iCR27,KR2#..LHD199309-199610

55405BPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER

main55405-28011-B0iCR27,KR2#..LHD199201-199301

GRAY,TRIM1#

main55405-28070iCR27,KR27..RHD; YR22,39..02S,08S; YR39..05S199201-199610

2DIN SIZE

main55405-28080iYR39..05S;CR27,KR27..RHD199201-199610

main55405-28110iYR21199201-199301

55441CBOX, INSTRUMENT PANEL COIN

main58824-28010iCR27,KR27..RHD199201-199610

main58824-28020-B0iCR27..LHD199201-199309

GRAY,TRIM1#

main58824-28020-B1iYR21199201-200007

BLACK,TRIM1#

55448BCOVER, OIL RESERVOIR TANK, RH

main55448-87003-B0iCR27,KR27,YR22,39..RHD199201-199610

GRAY,TRIM1#

55477ABEZEL, CIGARETTE LIGHTER HOLE

main55477-28020iCR27,KR27,YR22,39..RHD199201-199610

main55477-87001iCR27,KR2#,YR21..LHD199201-200007

55477DCOVER, CIGARETTE LIGHTER HOLE

main55477-12020-01iYR39..05S;CR27,KR27..RHD199201-199610

BLACK,TRIM1#

main55477-28040-B0iCR27,KR2#..LHD199201-199610

GRAY,TRIM1#

55506CCOMPARTMENT SUB-ASSY, GLOVE

main55506-28030-B0iCR27,KR27,YR22,39..RHD199201-199306

GRAY,TRIM1#

main55506-28070-B0iCR27,KR27,YR22,39..RHD199306-199610

GRAY,TRIM1#

55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)

main90541-05080×2iCR27,KR27,YR22,39..RHD199201-199610

55521CCOVER, STEREO OPENING

main55521-28020-B0iCR27,KR2#..LHD199201-199610

GRAY,TRIM1#

main55521-28020-B1iYR21199201-200007

BLACK,TRIM1#

main55521-87003iCR27,KR27,YR22,39..RHD199201-199610

55522CCOVER, RADIO RECEIVER OPENING

main55522-20060iCR27,KR27..RHD;YR21,39..05S,08S199201-200007

main55522-28010-B0iCR27,KR2#..LHD199201-199610

GRAY,TRIM1#

55533COVER, AUTO CLOCK HOLE

main55533-28040-B0iCR27,KR27,YR22,39..RHD..STD199201-199610

GRAY,TRIM1#

55539COVER, SPARE SWITCH HOLE

main55539-28040iCR27,KR27,YR22,39..RHD199201-199610

main55539-32010-40iCR27,KR2#..LHD199201-199308

LIGHT GRAY,TRIM1#

main55539-32010-B0iCR27,KR2#..LHD199308-199610

BLUISH GRAY,TRIM1#

55539BCOVER, SPARE SWITCH HOLE, NO.2

main55539-28040iCR27,KR27,YR22,39..RHD199201-199610

main55539-32010-11iYR21199201-199308

BLACK,TRIM1#

main55539-32010-40iCR27,KR2#..LHD199201-199308

LIGHT GRAY,TRIM1#

main55539-32010-B0iCR27,KR2#..LHD199308-199610

BLUISH GRAY,TRIM1#

main55539-32010-C0iYR21199308-200007

BLACK,TRIM1#

55539CCOVER, SPARE SWITCH HOLE

main55539-28030-B0iCR27,KR27,YR22,39..RHD..STD199201-199610

GRAY,TRIM1#

main55539-32010-11iYR21199201-199308

BLACK,TRIM1#

main55539-32010-40iCR27,KR2#..LHD199201-199308

LIGHT GRAY,TRIM1#

main55539-32010-B0iCR27,KR2#..LHD199308-199610

BLUISH GRAY,TRIM1#

main55539-32010-C0iYR21199308-200007

BLACK,TRIM1#

55539DCOVER, SPARE SWITCH HOLE

main55539-28030-B0iCR27,KR27,YR39..RHD199201-199610

GRAY,TRIM1#

main55539-32010-11iYR21199201-199308

BLACK,TRIM1#

main55539-32010-40iCR27,KR2#..LHD199201-199308

LIGHT GRAY,TRIM1#

main55539-32010-B0iCR27,KR2#..LHD199308-199610

BLUISH GRAY,TRIM1#

main55539-32010-C0iYR21199308-200007

BLACK,TRIM1#

55539ECOVER, SPARE SWITCH HOLE

main55539-28020iCR27,YR22,39..RHD; KR27..06S199201-199610

HONGKONG SPEC

55539FCOVER, SPARE SWITCH HOLE

main55524-87001iCR27,KR27,YR22,39..RHD199201-199610

55560ALOCK ASSY, GLOVE COMPARTMENT DOOR

main55560-16010-B0iCR27,KR2#,YR21..LHD199201-200007

GRAY,TRIM1#

main55560-16040-B0iCR27,KR27,YR22,39..RHD199201-199610

GRAY,TRIM1#

55573AHINGE, GLOVE COMPARTMENT DOOR

main55573-28030×2iCR27,KR27,YR22,39..RHD199201-199610

main55573-32010×2iCR27,KR2#,YR21..LHD199201-200007

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-28050-B0iCR27,KR27,YR22,39..RHD199201-199610

GRAY,TRIM1#

main55650-28060iCR27,KR2#,YR21..LHD199201-200007

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-28050-B0iCR27,KR27,YR22,39..RHD199201-199610

GRAY,TRIM1#

main55660-28060-B0iCR27,KR2#,YR21..LHD199201-200007

GRAY,TRIM1#

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-28040-B0iCR27,KR27,YR22,39..RHD199201-199610

GRAY,TRIM1#

55950ANOZZLE ASSY, DEFROSTER

main55950-28030iCR27,KR27,YR22,39..RHD199201-199610

main55950-28040iCR27,KR2#,YR21..LHD199201-200007

55959COVER, DEFROSTER NOZZLE OPENING, NO.1

main55098-28010-B0iCR27,KR27,YR22,39..RHD199201-199309

GRAY,TRIM1#

main55098-28020iCR27,KR27,YR22,39..RHD199309-199610

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-28030-B0iCR27,KR27,YR22,39..RHD199201-199610

GRAY,TRIM1#

main55961-28040-B0iCR27,KR2#,YR21..LHD199201-200007

GRAY,TRIM1#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-28030-B0iCR27,KR27,YR22,39..RHD199201-199610

GRAY,TRIM1#

main55962-28040-B0iCR27,KR2#,YR21..LHD199201-200007

GRAY,TRIM1#

55969COVER, DEFROSTER NOZZLE OPENING, NO.2

main55099-28010-B0iCR27,KR27,YR22,39..RHD199201-199309

GRAY,TRIM1#

main55099-28030iCR27,KR27,YR22,39..RHD199309-199610

55971BDUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-28010iCR27,KR27,YR22,39..RHD199201-199610

main55971-28020iCR27,KR2#,YR21..LHD199201-200007

55972ADUCT, SIDE DEFROSTER NOZZLE, NO.2

main55972-28010iCR27,KR27,YR22,39..RHD199201-199610

main55972-28020iCR27,KR2#,YR21..LHD199201-200007

8742987001PIPE, COMBUSTION HEATER OUTLET

main87429-87001

9011908063

main90119-08063

9015140005

main90151-40005

9015960187

main90159-60187

9017906096

main90179-06096

9017906097

main90179-06097

9017908146

main90179-08146

9018305094

main90183-05094

9025404044

main90254-04044

9046706125

main90467-06125

9046805047

main90468-05047

9054103015

main90541-03015

9166160816

main91661-60816

9356715014

main93567-15014

9356715016

main93567-15016

9356755016

main93567-55016

9356755020

main93567-55020

9356815012

main93568-15012

9356815016

main93568-15016

9356855012

main93568-55012

59 parts on this diagram · 2 diagrams in section
