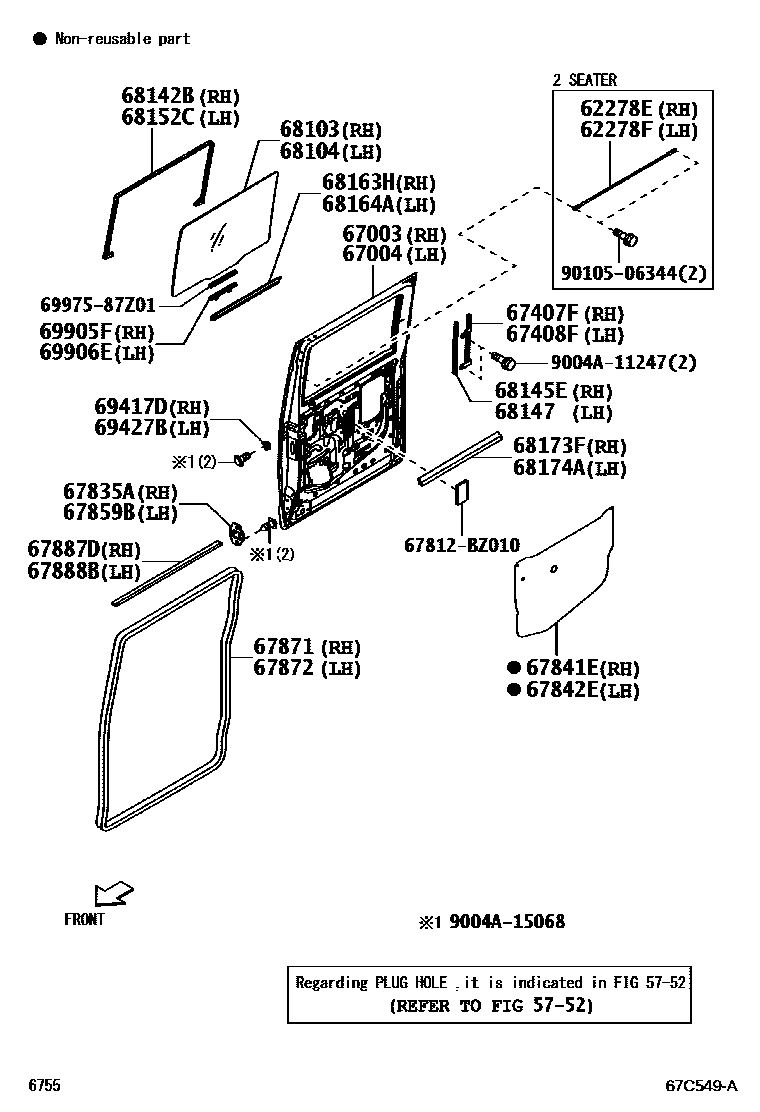

REAR DOOR PANEL & GLASS
5752HOLE PLUG
62278EPROTECTOR, SIDE WINDOW
62278FPROTECTOR, SIDE WINDOW
67003PANEL SUB-ASSY, REAR DOOR, RH
67004PANEL SUB-ASSY, REAR DOOR, LH
67407FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH
67408FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH
67835ACOVER, REAR DOOR HOLE, LOWER
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67859BCOVER, REAR DOOR LOWER HOLE
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
67887DWEATHERSTRIP, SLIDE DOOR, NO.2 RH
67888BWEATHERSTRIP, SLIDE DOOR, NO.2 LH
68103GLASS SUB-ASSY, REAR DOOR, RH
68104GLASS SUB-ASSY, REAR DOOR, LH
68142BRUN, REAR DOOR WINDOW, RH
68145ERUN, REAR DOOR GLASS, LOWER REAR
68147RUN, REAR DOOR WINDOW, REAR
68152CRUN, REAR DOOR GLASS, LH
68163HWEATHERSTRIP, REAR DOOR GLASS, OUTER RH
68164AWEATHERSTRIP, REAR DOOR GLASS, OUTER LH
68173FWEATHERSTRIP, REAR DOOR GLASS, INNER RH
68174AWEATHERSTRIP, REAR DOOR GLASS, INNER LH
69417DCOVER, SLIDE DOOR OPEN STOP, RH
69427BCOVER, SLIDE DOOR OPEN STOP, LH
69905FCHANNEL SUB-ASSY, REAR DOOR GLASS, RH
69906ECHANNEL SUB-ASSY, REAR DOOR GLASS, LH
67812BZ010PAD, REAR DOOR SILENCER
main67812-BZ010
6997587Z01FILLER, REAR DOOR GLASS BRACKET
main69975-87Z01
9004A11247
main9004A-11247
9004A15068
main9004A-15068
9010506344
main90105-06344
34 parts on this diagram · 2 diagrams in section
