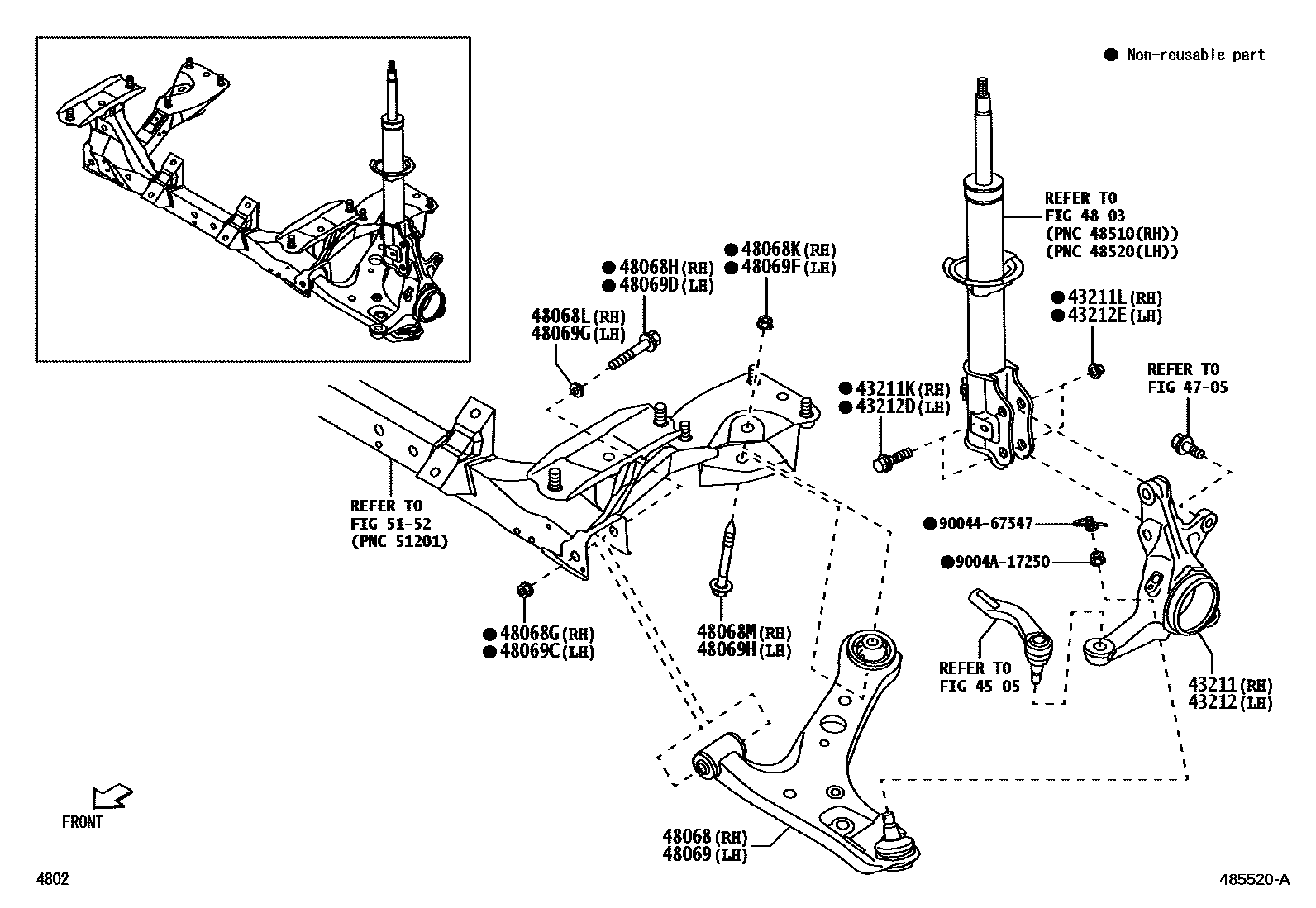

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-BZ420iS403202201

43211KBOLT (FOR STEERING KNUCKLE RH)

main9004A-10148×2iS403202201

43211LNUT (FOR STEERING KNUCKLE RH)

main9004A-17251×2iS403202201

43212KNUCKLE, STEERING, LH

main43212-BZ420iS403202201

43212DBOLT (FOR STEERING KNUCKLE LH)

main9004A-10148×2iS403202201

43212ENUT (FOR STEERING KNUCKLE LH)

main9004A-17251×2iS403202201

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

4705FRONT DISC BRAKE CALIPER & DUST COVER

→ Go to FIG 47-05

4803FRONT SPRING & SHOCK ABSORBER

→ Go to FIG 48-03

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-BZ410iS403202201

48068GNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90041-70342iS403202201

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main9004A-10167iS403202201

48068KNUT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90041-70342iS403202201

48068LWASHER(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main94622-51400iS403202201

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main9004A-10251iS403202201

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-BZ410iS403202201

48069CNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90041-70342iS403202201

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main9004A-10167iS403202201

48069FNUT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90041-70342iS403202201

48069GWASHER(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main94622-51400iS403202201

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main9004A-10251iS403202201

5152SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-52

9004467547

main90044-67547

9004A17250

main9004A-17250

24 parts on this diagram · 1 diagram in section
