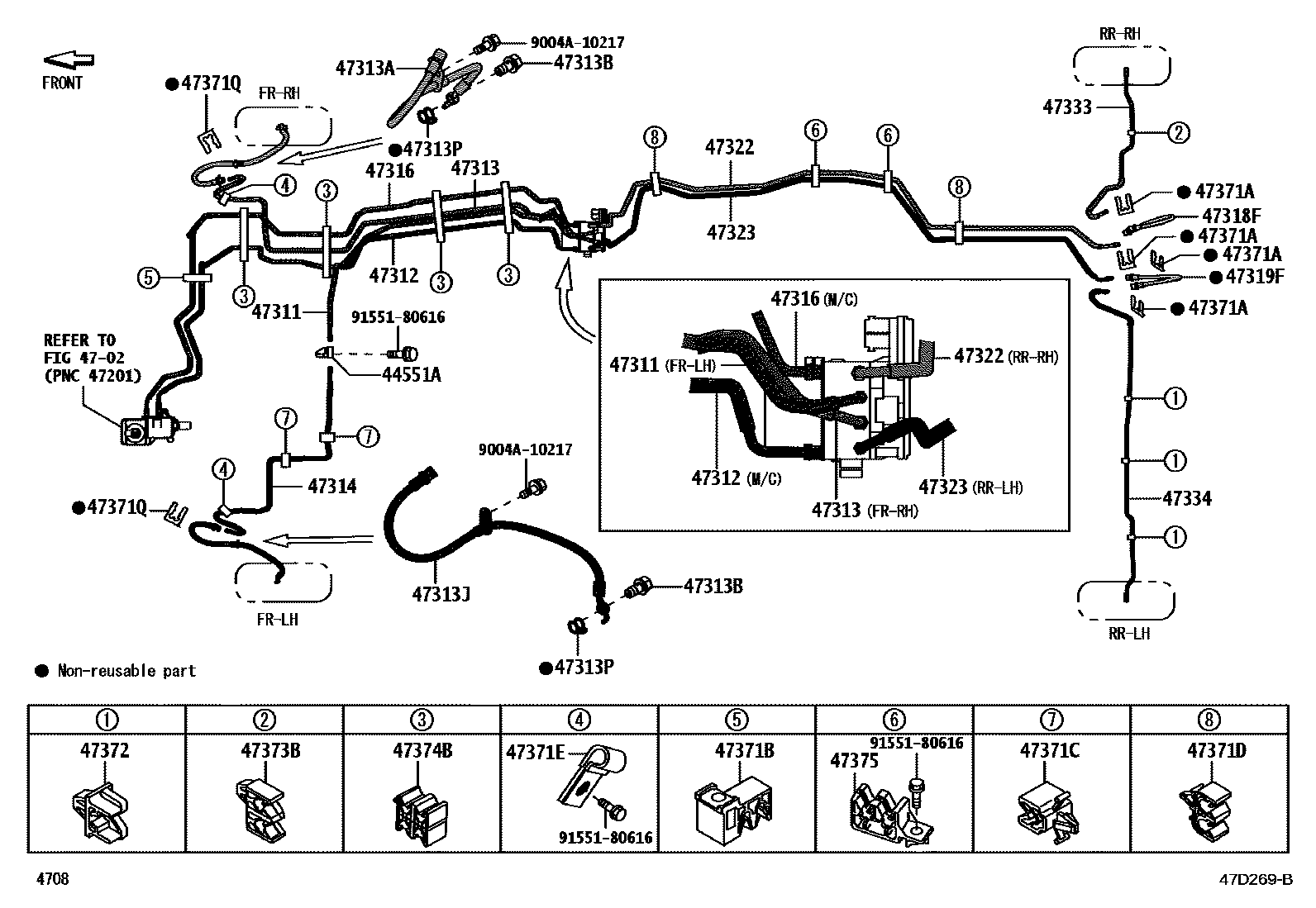

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1ACTUATOR 0004 1ACTUATOR

44551AWAY, NO.1(FOR BRAKE ACTUATOR)

main44508-B5010iS403202201

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47311TUBE, FRONT BRAKE, NO.1

main47311-BZ640iS403202201

47312TUBE, FRONT BRAKE, NO.2

main47312-BZ750iS403202201

47313TUBE, FRONT BRAKE, NO.3

main47313-BZ600iS403202201

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main9004A-94137iS403202201

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iS403202201

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main9004A-94138iS403202201

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iS403202201

47314TUBE, FRONT BRAKE, NO.4

main47314-BZ630iS403202201

47316TUBE, FRONT BRAKE, NO.6

main47316-BZ080iS403202201

47318FHOSE, FLEXIBLE(FOR REAR RH)

main9004A-94139iS403..HRF202212

main9004A-94140iS403..PIC202201

47319FHOSE, FLEXIBLE(FOR REAR LH)

main9004A-94139iS403..HRF202212

main9004A-94140iS403..PIC202201

47322TUBE, REAR BRAKE, NO.2

main47322-BZ400iS403..PIC202201

main47322-BZ410iS403..HRF202212

47323TUBE, REAR BRAKE, NO.3

main47323-BZ240iS403..PIC202201

main47323-BZ250iS403..HRF202212

47333TUBE, REAR BRAKE, NO.12

main47333-BZ080iS403..PIC202201

main47333-BZ110iS403..HRF202212

47334TUBE, REAR BRAKE, NO.13

main47334-BZ060iS403..PIC202201

main47334-BZ140iS403..HRF202212

47371ACLAMP, BRAKE TUBE, NO.1

main90044-65441×4iS403202201

47371BCLAMP, BRAKE TUBE, NO.6

main47371-BZ050iS403202201

47371CCLAMP, BRAKE TUBE, NO.7

main47371-BZ060×2iS403202201

47371DCLAMP, BRAKE TUBE, NO.8

main90044-64891×2iS403..PIC202201

47371ECLAMP, BRAKE TUBE, NO.9

main96221-10706×2iS403202201

47371QCLAMP, BRAKE TUBE, NO.15

main90044-65441×2iS403202201

47372CLAMP, BRAKE TUBE, NO.2

main9004A-46296×3iS403202201

47373BCLAMP, BRAKE TUBE, NO.3

main9004A-46321iS403202201

47374BCLAMP, BRAKE TUBE, NO.4

main47371-B5030×4iS403202201

47375CLAMP, BRAKE TUBE, NO.5

main47371-BZ030×2iS403..PIC202201

main90464-00904iS403..HRF202212

9004A10217

main9004A-10217

9155180616

main91551-80616

29 parts on this diagram · 4 diagrams in section
