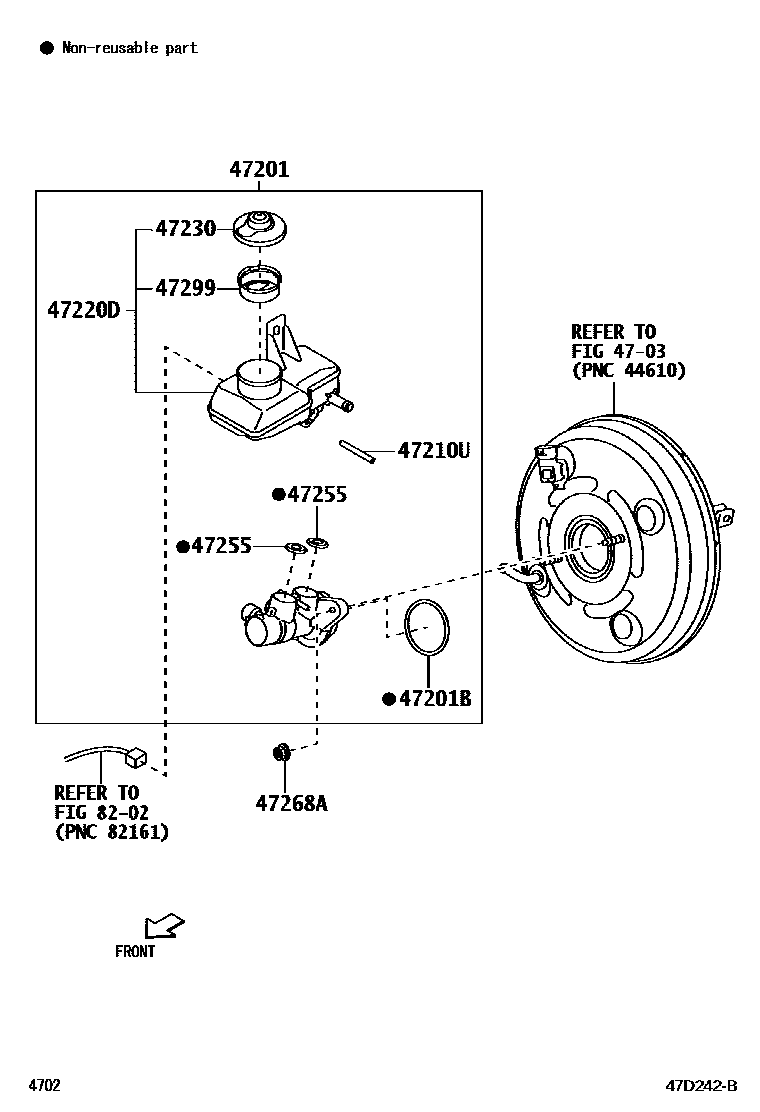

BRAKE MASTER CYLINDER

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-BZ680iS403..5F202201

main47201-BZA60iS403..4FC202201

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90043-01352iS403202201

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90042-43029iS403202201

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-BZ250iS403..5F202201

main47220-BZ260iS403..4FC202201

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-BZ130iS403202201

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-BZ110×2iS403202201

47268ANUT, BRAKE MASTER CYLINDER

main90041-79124×2iS403202201

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-BZ090iS403202201

8202WIRING & CLAMP

→ Go to FIG 82-02

10 parts on this diagram · 1 diagram in section
