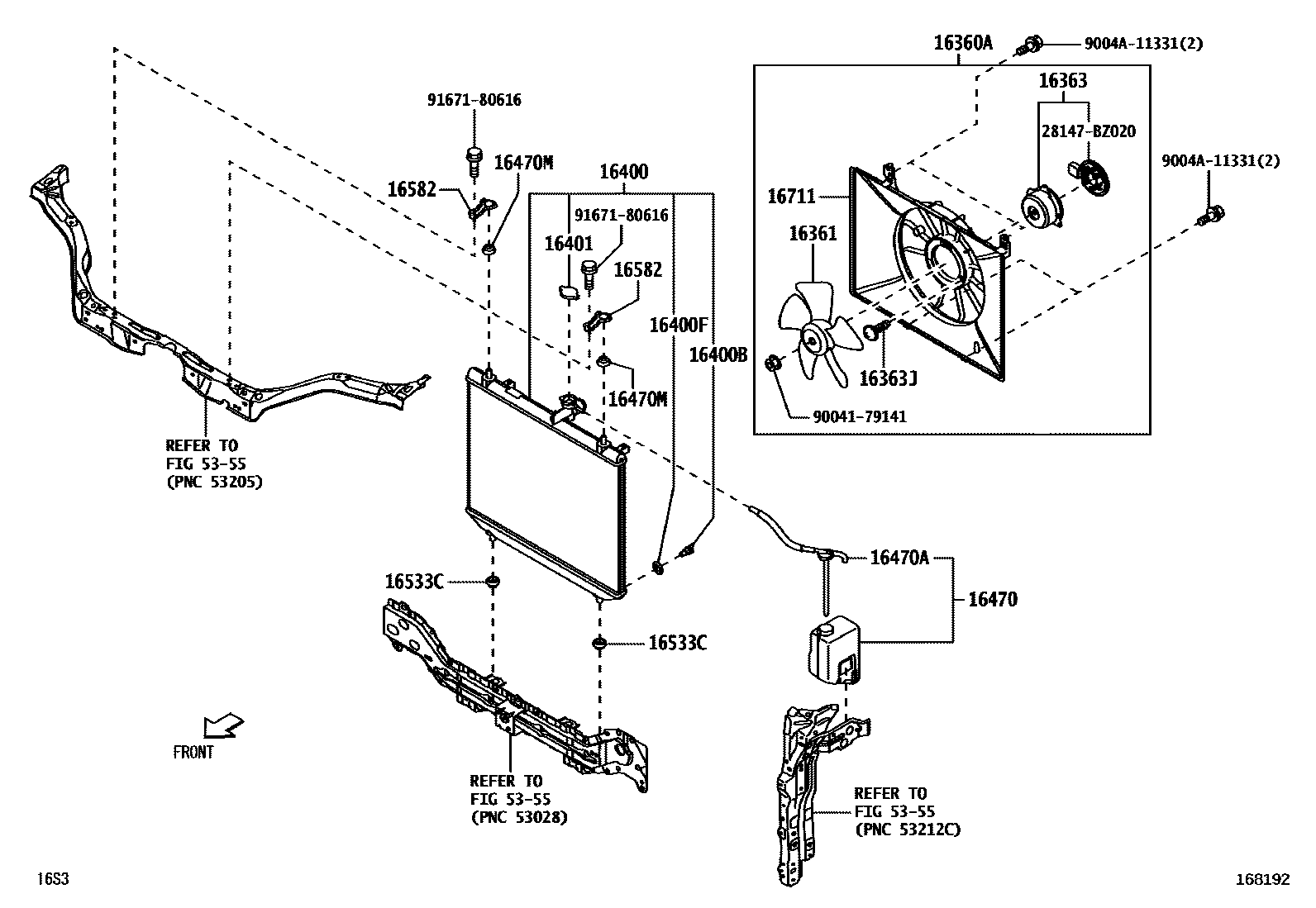

RADIATOR & WATER OUTLET

0001 1RADIATOR 0002 1RADIATOR HOSE 0003 1WATER BY-PASS PIPE 0004 1WATER BY-PASS PIPE

16360AFAN ASSY, W/MOTOR

main16360-BZ210i2NRVE..S403202201

16361FAN

main16361-BZ090i2NRVE..S403202201

16363MOTOR, COOLING FAN

main16363-BZ100i2NRVE..S403202201

16363JBOLT(FOR COOLING FAN MOTOR)

main16672-87201×3i2NRVE..S403202201

16400RADIATOR ASSY

main16400-BZ870i2NRVE..S403202201

16400BPLUG, RADIATOR DRAIN COCK

main23322-87101i2NRVE..S403202201

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16442-97201i2NRVE..S403202201

16401CAP SUB-ASSY, RADIATOR

main16401-BZ180i2NRVE..S403202201

16470TANK ASSY, RADIATOR RESERVE

main16470-BZ161i2NRVE..S403202201

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16503-BZ101i2NRVE..S403202201

16470MGROMMET

main9004A-48017×2i2NRVE..S403202201

16533CGROMMET(FOR RADIATOR SUPPORT)

main9004A-48030×2i2NRVE..S403202201

16582BRACKET, RADIATOR, NO.1

main16582-BZ060×2i2NRVE..S403202201

16711SHROUD, FAN

main16711-BZ050i2NRVE..S403202201

5355FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-55

28147BZ020

main28147-BZ020

9004179141

main90041-79141

9004A11331

main9004A-11331

9167180616

main91671-80616

19 parts on this diagram · 4 diagrams in section
