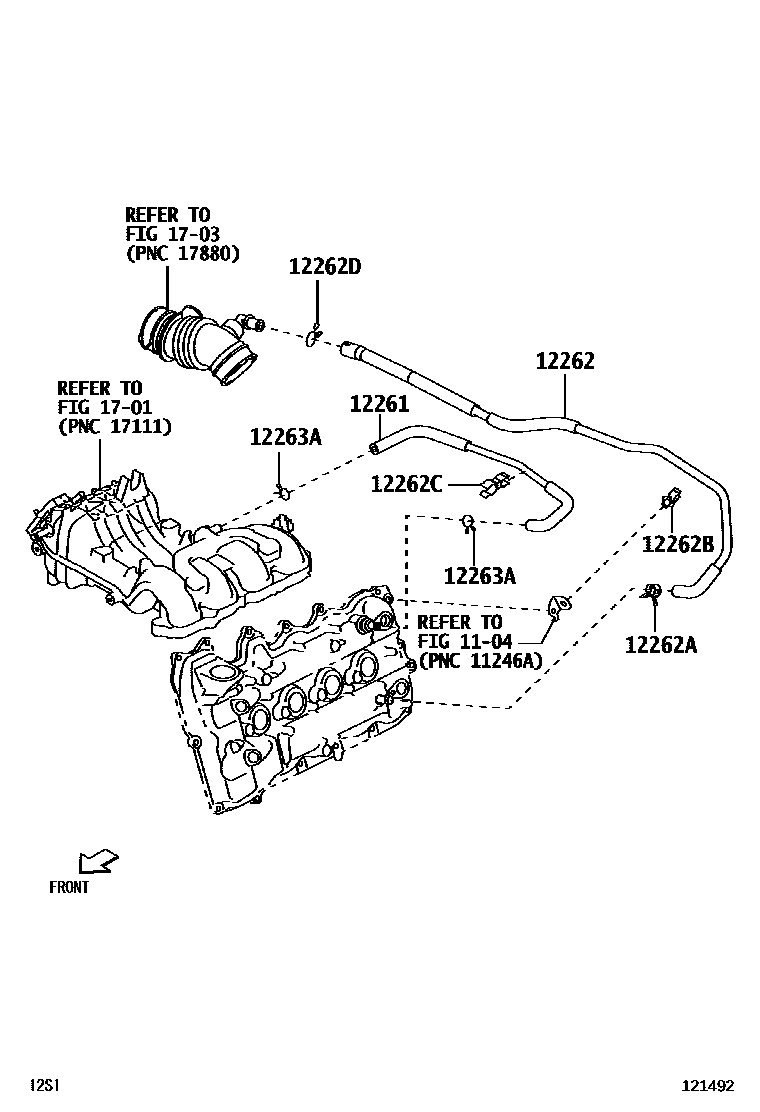

VENTILATION HOSE

1104CYLINDER HEAD

→ Go to FIG 11-04

12261HOSE, VENTILATION

main12261-BZ270i2NRVE..S403202201

12262HOSE, VENTILATION, NO.2

main12262-BZ180i2NRVE..S403202201

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90044-67240i2NRVE..S403202201

12262BCLAMP(FOR VENTILATION HOSE)

main90044-60330i2NRVE..S403202201

12262CCLAMP, VENTILATION HOSE, NO.2

main90044-64444i2NRVE..S403202201

12262DCLIP(FOR VENTILATION HOSE NO.2)

main90466-T0063i2NRVE..S403202201

12263ACLIP(FOR VENTILATION HOSE)

main90466-T0061×2i2NRVE..S403202201

1701MANIFOLD

→ Go to FIG 17-01

1703AIR CLEANER

→ Go to FIG 17-03

10 parts on this diagram · 1 diagram in section
