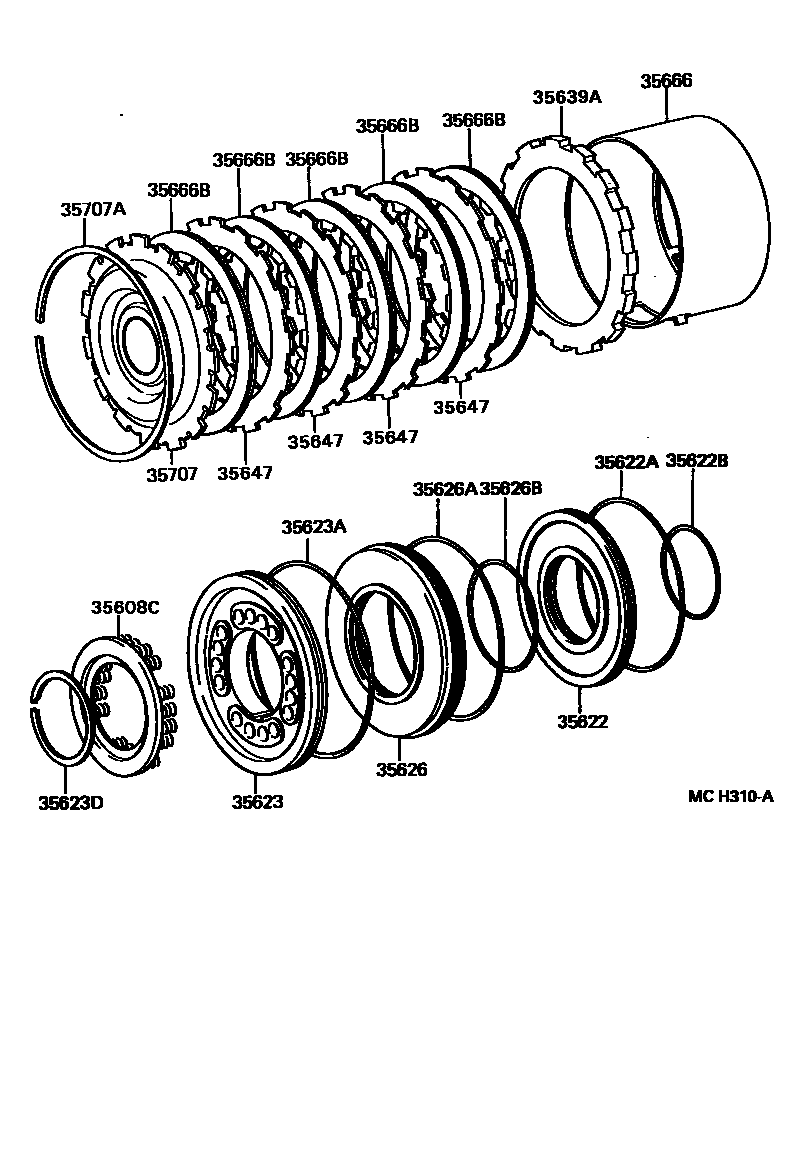

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35608CSPRING SUB-ASSY, NO.3 BRAKE PISTON RETURN

main35608-20020iYM30,35..4FC198808-199201

35622PISTON, BRAKE, NO.2

main35622-22010iYM30,35..4FC198808-199201

35622ARING (FOR BRAKE PISTON OUTER)

main90301-99193iYM30,35..4FC198808-199201

35622BRING (FOR BRAKE PISTON INNER)

main90301-57188iYM30,35..4FC198808-199201

35623PISTON, BRAKE, NO.3

main35623-22010iYM30,35..4FC198808-199201

35623ARING, O (FOR BRAKE PISTON NO.3 )

main90301-99192iYM30,35..4FC198808-199201

35623DRING, SHAFT SNAP (FOR BRAKE)

main90520-52262iYM30,35..4FC198808-199201

35626SLEEVE, BRAKE REACTION

main35626-22010iYM30,35..4FC198808-199201

35626ARING (FOR BRAKE REACTION SLEEVE OUTER)

main90301-99200iYM30,35..4FC198808-199201

35626BRING (FOR BRAKE REACTION SLEEVE INNER)

main90301-68191iYM30,35..4FC198808-199201

35639APLATE, CLUTCH PRESSURE (FOR BRAKE)

main35639-22010iYM30,35..4FC198808-199201

35647PLATE, CLUTCH, NO.2

main35647-22010×4iYM30,35..4FC198808-199201

35666TUBE, BRAKE APPLY

main35666-26010iYM30,35..4FC198808-199201

35666BDISC, CLUTCH (FOR BRAKE)

main35633-30050×4iYM30,35..4FC198808-199109

main35633-30060×4iYM30,35..4FC199109-199201

35707RACE SUB-ASSY, 1 WAY CLUTCH, INNER

main35707-30020iYM30,35..4FC198808-199201

35707ARING, HOLE SNAP (FOR 1 WAY CLUTCH INNER RACE)

main90521-99140iYM30,35..4FC198808-199201

16 parts on this diagram · 1 diagram in section
