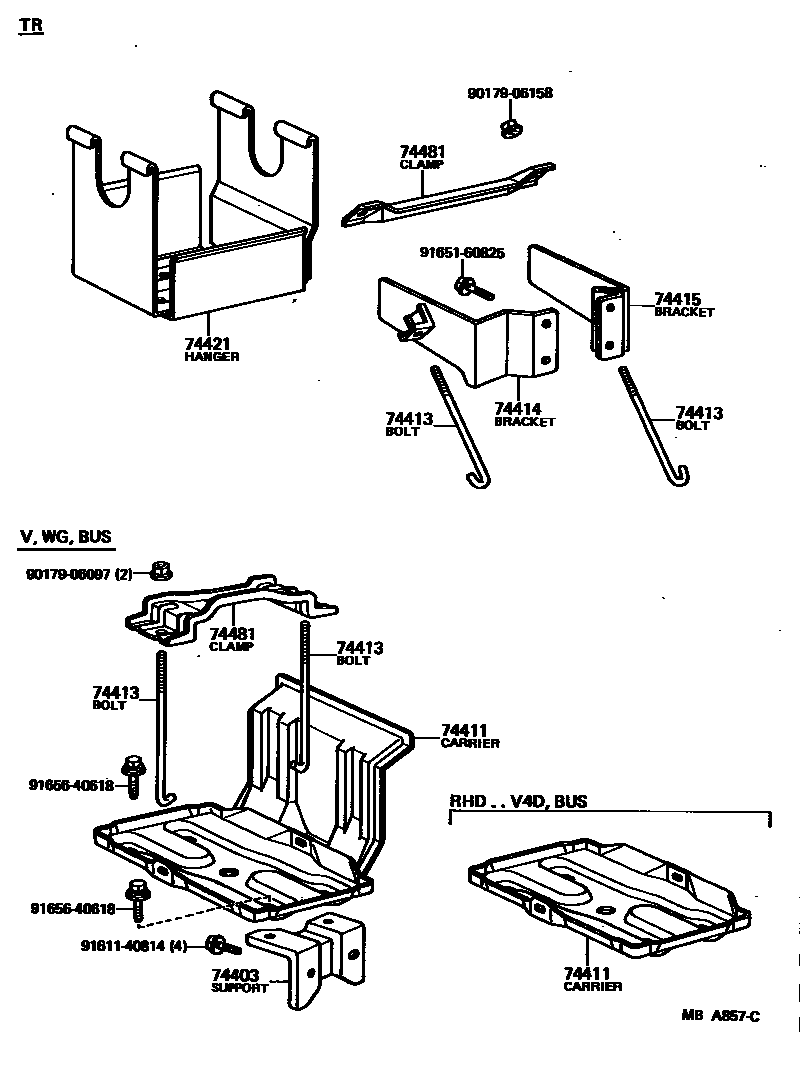

BATTERY CARRIER

0001 1 0003 1

74403SUPPORT SUB-ASSY, BATTERY CARRIER

main74403-95700iYM2#..V4D198311-198508

74411CARRIER, BATTERY

main74410-95703iKM20..LHD..V4D;KM20..LHD..(BUS,WG); KM20..V5D197910-198508

main74410-95705iCM20..RHD198210-198508

main74410-95707iCM20..LHD198210-198508

main74411-95702iKM20..RHD..V4D..GEN;KM20,YM2#..RHD..(02S,05S,09S)197910-198508

74413BOLT, BATTERY CLAMP

main74451-11012×2iKM20..TR197910-198210

main74451-95700×2iKM20..HRF,SRF197910-198508

main74451-95702iCM20;YM21..08S198210-198508

74414BRACKET, BATTERY, FR

main74401-27020iKM20..TR197910-198210

74415BRACKET, BATTERY, REAR

main74402-27020iKM20..TR197910-198210

74421HANGER, BATTERY

main74421-27010iKM20..TR197910-198210

74481CLAMP, BATTERY HOLD DOWN

main74406-95701iCM20..RHD198210-198508

main74406-95703iCM20..LHD198210-198508

main74453-11012iKM20..TR197910-198210

main74481-95702iKM20,YM2#..HRF,SRF197910-198508

9017906097

main90179-06097

9017906158

main90179-06158

9161140814

main91611-40814

9165160825

main91651-60825

9165640618

main91656-40618

12 parts on this diagram · 2 diagrams in section
